Overview

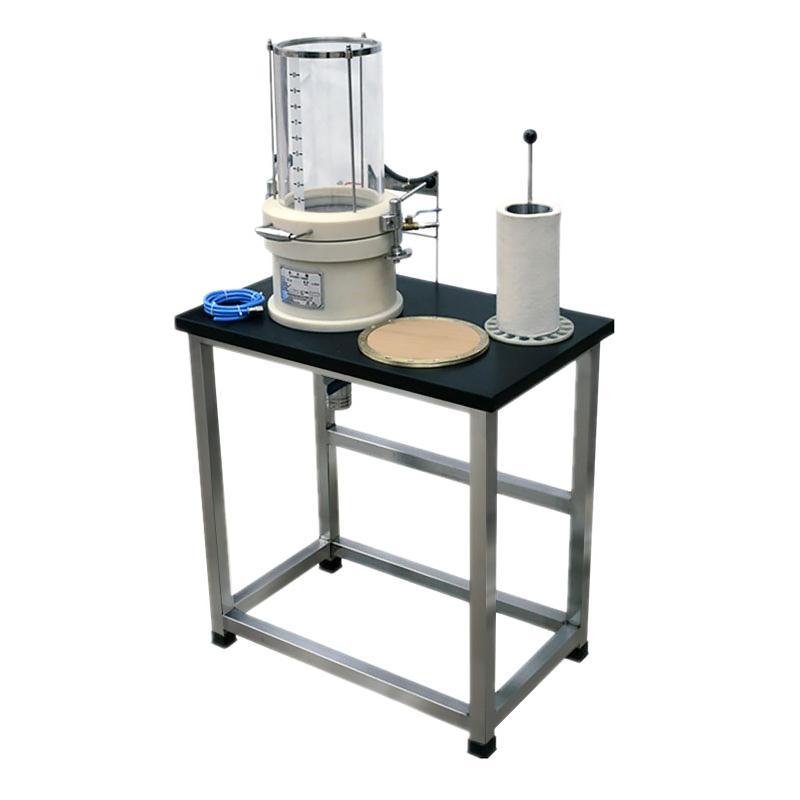

JWJ01-1S manual sheet reader is an experimental equipment of JINGWEN brand, which is specially used to copy pulp into shape. In the laboratory environment, various fibers such as plants and minerals can be boiled, beaten, and sieved for standard dredging, and then put into the sheet copy cylinder. Stir and then quickly suctionfiltration to form a round sheet with a diameter of 200mm. The sheet can be used as a paper sample for physical testing.
Features
1. Adopting the national standard, the papermaking diameter is φ 200
2. Manual sizing plate sizing
3. Vacuum papermaking function can be attached
Principle
Stir the pulp into a sheet cylinder and form a circular sheet through rapid suctionfiltration, which includes a copper mesh trailer, a paper making drum, a copper mesh sheet holder and a pulp homogenizer.
Applications
Laboratory pulp type, physical test paper sample prepative
Standards
QB/T3703-1999、ISO 5269/2、ISO 5269/3、5269/2、NBR 14380/99、TAPPI T-205、DIN 54358、ZM V/8/76
Steps
1. Carry out standard dredging of pulp
2. Put it into the sheet copy cartridge
3. Stirring pulp
4. Rapid suctionfiltration molding
5. Form a round sheet with a diameter of 200mm
Notice
• Copper mesh clip is equipped with 60 mesh or 80 mesh, which can be added according to user needs
• The power of the device is 463W, pay attention to power safety when using it
• Equipment volume is 500mm × 600mm × 1300mm, weight 40KG, need to ensure stable placement
