TRUIT TR 1005/8 DIN Cup viscosity measurement Cup 100ml capacity 8mm aperture

Name: TRUIT TR 1005/8 DIN Cup viscosity measurement Cup 100ml capacity 8mm aperture
Brand: TRUIT
SKU: NB043171
Price: 128.0 USD
Availability: InStock

$ 128.00Ex works

Conform to DIN 53211 standard, evaluate viscosity by measuring 100ml liquid outflow time, pore size 8mm, applicable viscosity range 1200~ 3000cst, outflow time 25~ 150s.

Model

Get Quote

Category : Viscosity Cup

Brand : TRUIT

SKU : NB043171

Service :The delivery and service By NBCLab.Com

Overview

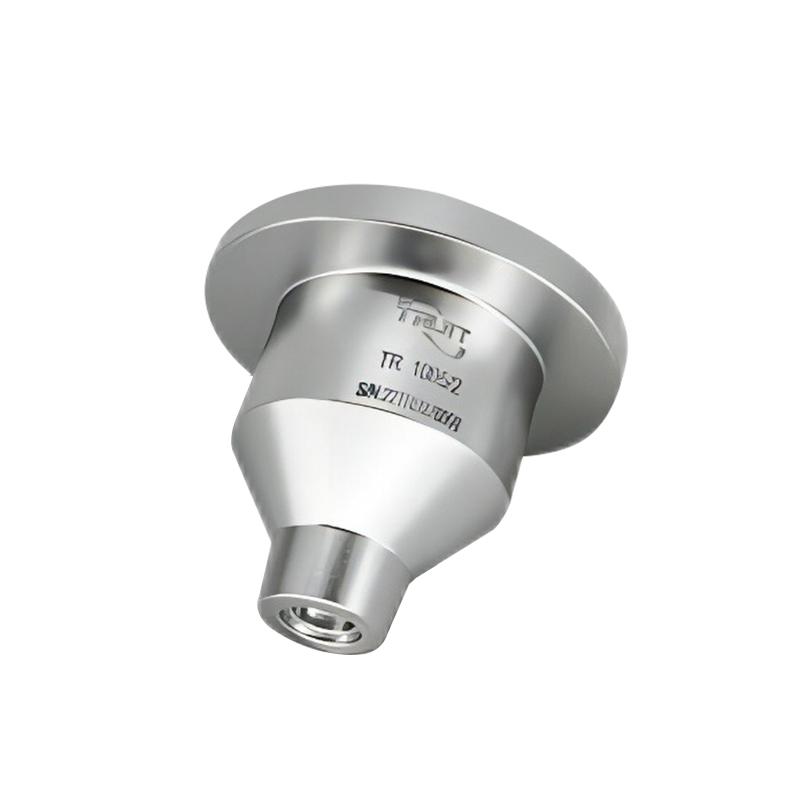

The TRUIT TR 1005/8 DIN Cup is a DIN 53211 compliant viscosity measurement instrument with a high-quality aluminum alloy cup body and a stainless steel nozzle with a volume of 100ml. It evaluates the viscosity of Newtonian or near-Newtonian liquids such as inks, coatings, paints by measuring the time it takes for 100ml of the sample to flow out of the bottom 8mm aperture (25~ 150 seconds). It is suitable for thin liquid testing with low viscosity. This model is a benchtop structure and is mainly used for viscosity measurement of laboratory samples.

Features

1. The cup body is made of high-quality aluminum alloy and has been treated with anodic oxidation 2. The nozzle is made of high-quality stainless steel 3. The volume is 100ml 4. Outflow aperture is 8mm 5. Outflow time range is 25 to 150 seconds 6.The viscosity measurement range is 1200~ 3000cst 7. Benchtop structure design, suitable for laboratory environment

Principle

Based on standard design principles, the DIN cup assesses liquid viscosity by measuring the time it takes for a 100ml sample in the cup to completely flow out of the bottom 8mm aperture. The outflow time is proportional to the liquid viscosity. The longer the time, the higher the viscosity. This allows for quantitative evaluation of the viscosity of Newtonian or near-Newtonian liquids such as inks and coatings.

Applications

Inks, Coatings, paints etc. viscosity testing of Newtonian or near-Newtonian liquids

Standards

DIN 53211

Steps

1. Prepare the liquid sample to be tested 2. Pour the sample into the DIN cup to 100ml scale 3. Record the time required for the sample to completely flow out of the bottom 8mm aperture 4. Evaluate liquid viscosity based on outflow time

Notice

• Only for Newtonian or near-Newtonian liquids The outflow time should be controlled within the range of 25 to 150 seconds • Suitable for testing thin liquids with low viscosity • Make sure the cup body and nozzle are clean and drying before use Keep environment temperature stable during measurement

flow hole diameter
Φ8.0mm
outflow time
25 to 150 seconds
Viscosity Range
1200~3000st
capacity
100ml
Cup material
High quality aluminum alloy (anodic oxidation)
Nozzle material
stainless steel

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
