Overview

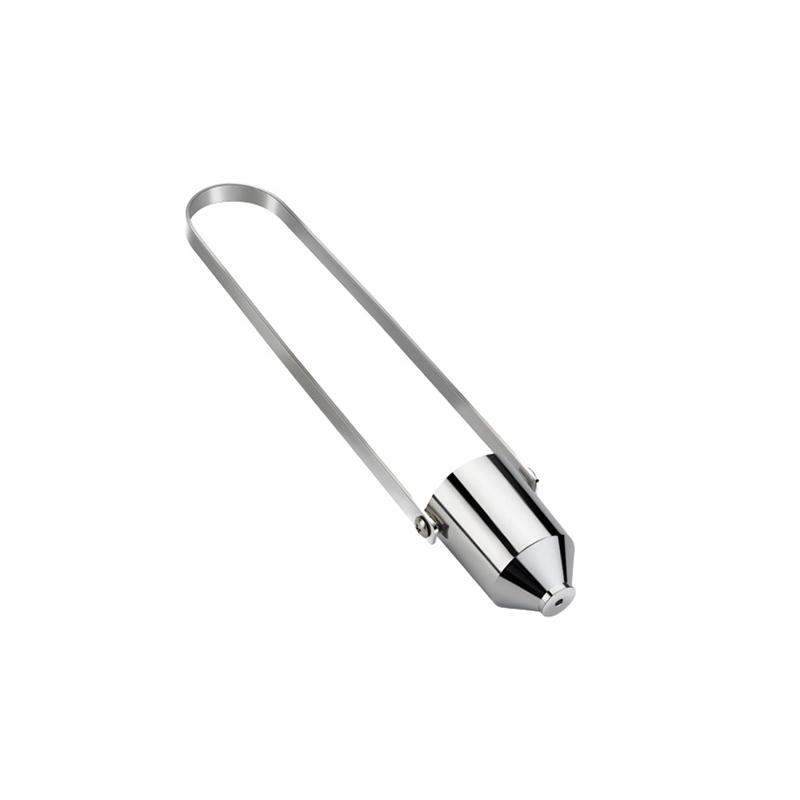

Iwata Cup TR 1009 is a flow time cup for Coating viscosity measurement. It is made of copper nickel-plated cup body with 3.5mm hole in the bottom and a capacity of 50ml. The material Tack is evaluated by measuring the time required for a certain volume of sample in the cup to flow out of the bottom hole.
Features
1. Compliant with Japanese (JlS) standards
2. Suitable for electronic products, plastic Coatings industry
3. Suitable for rapid measurement of liquid viscosity in laboratory or construction site
4. Flow hole diameter 3.5mm, viscosity range 70~ 370cSt
5. Capacity 50ml, outflow time 20~ 100s
6. Copper nickel-plated material, precision machining
Principle
During the test, the coating is injected into the Iwata cup, the outlet is opened, and the time required for the coating to flow out of the cup is recorded. Tack of the material is evaluated by measuring the time it takes for a certain volume of sample in the cup to flow out of the small hole at the bottom.
Applications
Electronics, Plastic Coating Industry, Laboratory, Construction Site
Standards
Japanese (JlS) Standard
Steps
1. Inject Coating into Iwata Cup
Step 2 Open the outlet
3. Record the time it takes for the Coating to flow out of the cup
Notice
• Make sure the cup is clean and free of residue
Keep environment temperature stable during measurement
• Strictly follow the outflow time range of 20~ 100s for measurement
• Clean and maintain in time after use
