Overview

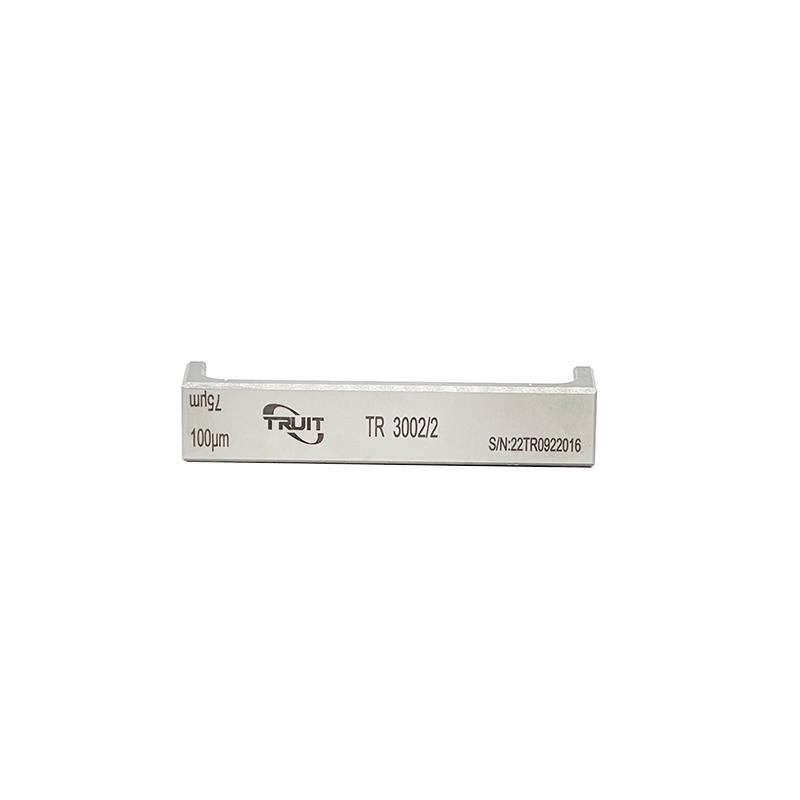

Double-sided coating applicator TR 3002/2 is an I-type Film Applicator with two different film film thicknesses (70μm and 100μm), used to prepare uniform films and detect the hiding power, Color, scrub resistance and other performance of coatings. Made of high-quality wear-resistant and corrosion-resistant alloy steel, the effective Spreader width is 80mm and the total length is 100mm. It is a manual coating applicator, suitable for Coatings, paints, glues, Gloss oil, polymer materials and other experimental films.
Features
Double-sided design offers two different film Film thicknesses (70μm and 100μm)
2. Made of high-quality wear-resistant and corrosion-resistant alloy steel
3. The model and film thickness are engraved on the front, which is easy to choose and use
4. Spreader width 80mm, total length 100mm
5. Manual operation, easy to use
Principle
The double-sided coating applicator uses its I-shaped structure to evenly scrape the surface of the substrate to form a wet-film of specific Film thickness by manual operation. Two coating surfaces of different Film thicknesses can be prepared for 70μm and 100μm films respectively for subsequent performance testing.
Applications
Coatings, paints, glues, Gloss oils, polymer materials and other experimental films
Steps
1. Select the corresponding coating surface (70μm or 100μm) according to the required film Film thickness
2. Coating evenly on the substrate
3. Handheld coating applicator, scrape evenly on the surface of the substrate at an appropriate angle and speed
4. After completion of Spreader, follow-up performance test
Notice
• Confirm the required film Film thickness before use and select the correct coating surface
• Ensure the coating applicator surface is clean and free of residue
• Spreaders maintain uniform speed and pressure
• Clean the coating applicator after use to prevent Coating curing
• Avoid contact with corrosive chemicals and keep drying
