Overview

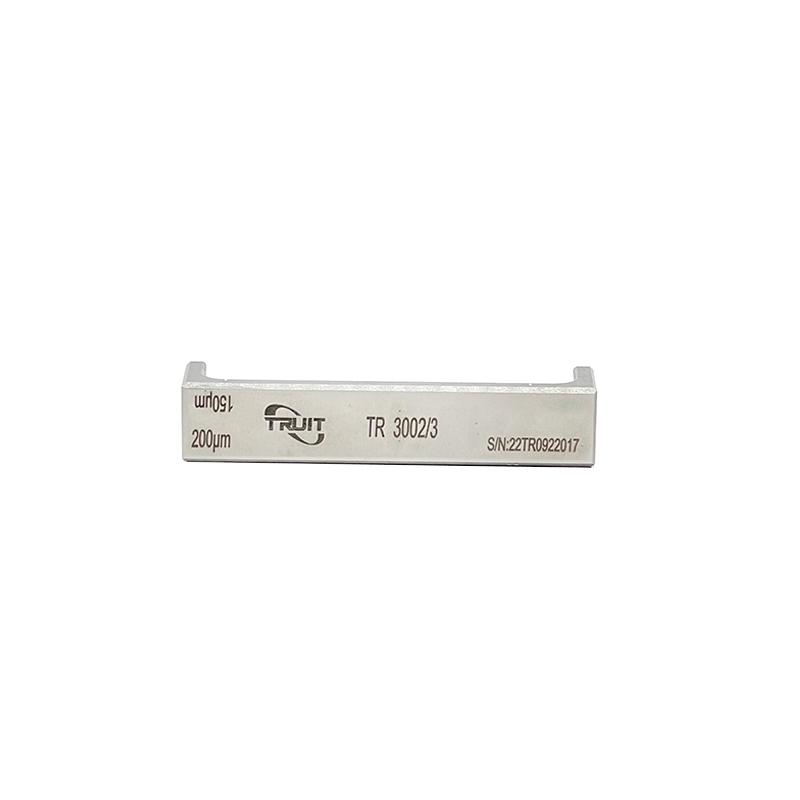

Double Sided Applicator TR 3002/3 is an I-type Film Applicator with two different film film thicknesses for preparing uniform films to detect coating performance such as hiding power, Color, scrub resistance, etc. The instrument is made of high-quality wear-resistant and corrosion-resistant alloy steel. The effective Spreader width is 80mm, the total length is 100mm, and the film Film thickness is 150μm and 200μm.
Features
1. Double-sided design provides two different film Film thickness options
2. Made of high-quality wear-resistant and corrosion-resistant alloy steel
3. The model and film thickness logo are engraved on the front of the instrument for easy selection
4. The effective Spreader width is 80mm, the total length is 100mm
5. Experimental film preparatory for a variety of materials
Principle
Double Sided Applicator manually scrapes the substrate with different film thicknesses to form a uniform wet-film coating. By controlling the scraping angle and speed of the coating applicator, an experimental film of the specified Film thickness can be obtained for subsequent performance testing and analysis.
Applications
Coatings, paints, glues, Gloss oils, polymer materials and other experimental films
Steps
1. Select the coating surface of the desired film Film thickness
2. Place the coating applicator on the substrate surface
3. Carry out the scraping operation at the appropriate angle and speed
4. Preparative wet-film coating
5. Follow-up performance testing and analysis
Notice
• Confirm the required film Film thickness before use
Keep the coating applicator clean and drying
• Maintain uniform speed and angle when scraping
• Avoid scratching the coating surface with hard objects
• Clean and maintain in time after use
