Overview

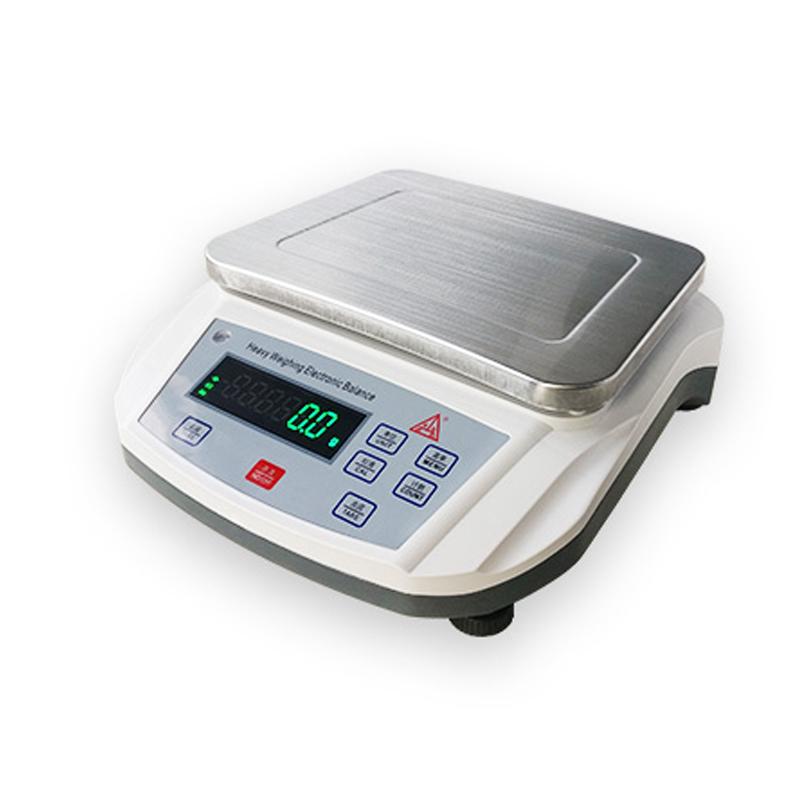

TD10K-0.1 Electronic Analytical Balance is a laboratory-specific electronic Analytical Balance with a maximum range of 10kg, an accuracy of 0.1g, and a test weight of 5kg. The Balance has functions such as peeling, automatic calibration of weighing, automatic clearing, automatic zero tracking and fault display, and adopts an oversized thickened stainless steel trapezoidal pan.
Features
1, weighing accuracy is 0.1g
2. International unit conversion function
3. AC/DC dual-use function, Balance is equipped with rechargeable battery
4, large thickened stainless steel trapezoidal pan
5. Equipped with RS232 serial port, it can be used for computer and printer connection
6, with peeling, weighing Automatic calibration, automatic clearing, zero automatic tracking and fault display and other functions
7. With counting function (point function), it can be easily used for counting Balance
Principle
Electronic Analytical Balance detects the pressure generated by the weighing object through the Sensor, converts the pressure signal into an electrical signal, and displays the weighing result after processing by the internal processor. With Automatic calibration, automatic clearing and zero automatic tracking functions to ensure the accuracy of weighing.
Standards
International Unit Conversion
Steps
1. Place Balance on a Stable Workbench
2. Connect the Power Adapter or use the built-in battery
3. Turn it on and warm up, wait for stability
4. Externally calibrated (using the equipped 5kg test weight)
5. Place the items to be weighed for weighing
6. If you need to count, use the counting function
7. Data output can be connected to a computer or printer through the RS232 interface
Notice
• Make sure the Balance is placed on a stable workbench before use
• Ambient Temperature should be maintained at 5~ 40 ℃, Humidity 50%~ 60% RH
• Periodic external calibrating to ensure weighing accuracy
• Avoid weighing more than the maximum range of 10kg
• Please use a soft cloth when cleaning to avoid the use of corrosion cleaners
• Please disconnect the power supply when not in use for a long time
• If there is a fault display, please follow the instructions to check.
