Overview

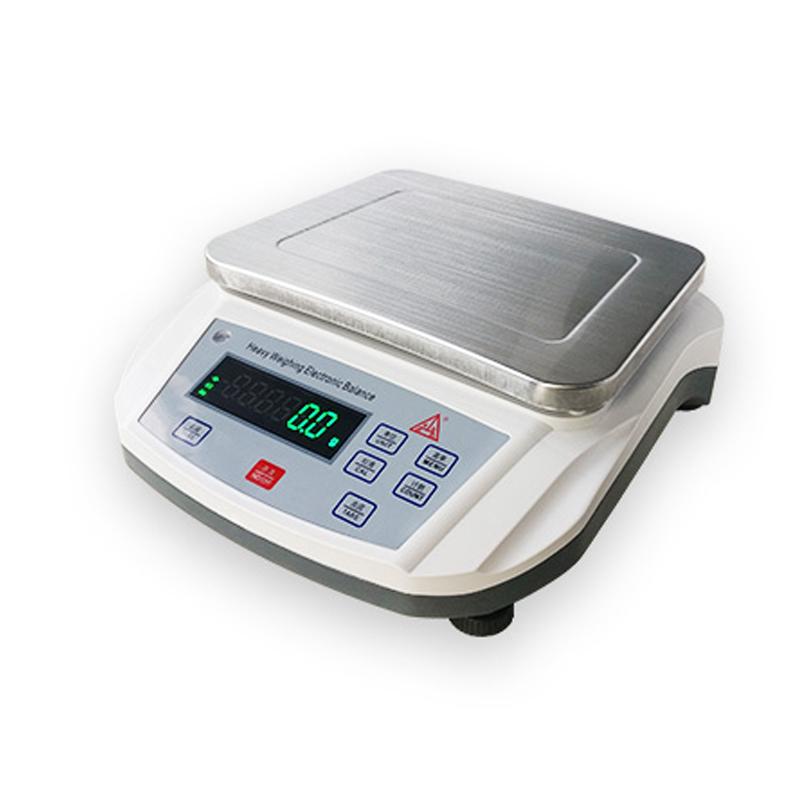

Tianma TD15K-0.1 Lab Electronic Balance is an Electronic Analytical Balance with a maximum range of 15kg and a minimum reading of 0.1g. It uses an oversized thickened stainless steel trapezoidal pan with a 10kg test weight and a repeatability error of +/- 0.3g.
Features
1, weighing accuracy is 0.1g
2. International unit conversion function
3. AC/DC dual-use function, equipped with rechargeable battery inside
4, large thickened stainless steel trapezoidal pan
5. Equipped with RS232 serial port, it can be used for computer and printer connection
6, with peeling, weighing Automatic calibration, automatic clearing, zero automatic tracking and fault display and other functions
7. With counting function (point function), it can be easily used for counting Balance
Principle
The Electronic Balance converts the weight into an electrical signal through the Sensor, and displays the weighing result after processing by the internal processor. It has the functions of Automatic calibration, automatic clearing and automatic zero tracking to ensure the accuracy of weighing.
Applications
Laboratory, analytical testing, industrial weighing, counting and weighing
Steps
1. Balance on a smooth surface
2. Connect the Power Adapter or use the built-in battery
3. Preheat the machine to stability
4. Externally calibrated (using 10kg test weight)
5. Place the item to be weighed in the pan
6. Read the display results
7. Data output can be connected to a computer or printer through the RS232 interface
Notice
• Ambient Temperature should be kept within 5~ 40 ℃
• Environmental humidity should be kept within the range of 50% RH~ 60% RH
• External calibrated before use to ensure accuracy
• Make sure the pan is clean and free of debris
• Avoid use in vibration or unstable air flow environments
• Disconnect the power supply when not in use for a long time
• Pay attention to handle with care when handling to avoid collisions
