Overview

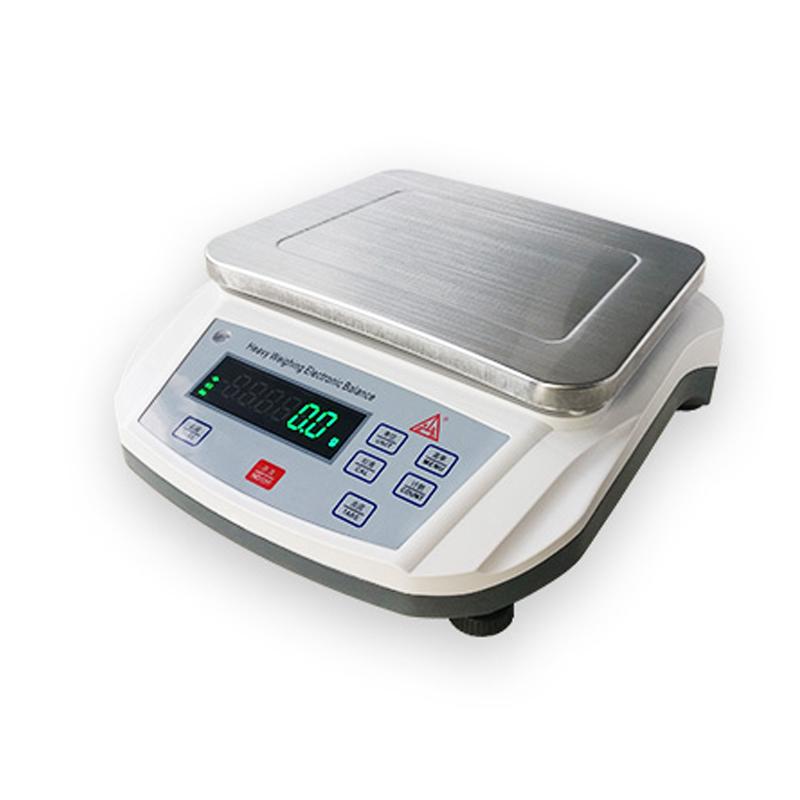

TD20K-0.1 0.1g Electronic Balance is a Tianma TD series laboratory Electronic Balance with a maximum range of 20kg and a minimum reading of 0.1g, equipped with a test weight of 15kg. The product is designed with thickened stainless steel trapezoidal pan.
Features
1, weighing accuracy is 0.1g
2. International unit conversion function
3. AC/DC dual-use function, Balance is equipped with rechargeable battery
4, large thickened stainless steel trapezoidal pan
5. Equipped with RS232 serial port, it can be used for computer and printer connection
6, with peeling, weighing Automatic calibration, automatic clearing, zero automatic tracking and fault display and other functions
7. With counting function (point function), it can be easily used for counting Balance
Principle
The Electronic Balance converts the weight signal into an electrical signal through the Sensor, and displays the weighing result after processing. It has the functions of Automatic calibration, automatic clearing and automatic zero tracking to ensure the accuracy of weighing.
Applications
Laboratory, industrial weighing, mass testing, counting and weighing
Standards
International System of Units Standard
Steps
1. Place Balance on a Stable Workbench
2. Connect the Power Adapter or use the built-in battery
3. Turn it on and warm up, wait for stability
4. Externally calibrated (using 15kg test weight)
5. Place items to be weighed
6. Use peeling, counting and other functions
7. Can be connected to a computer or printer through RS232 interface
Notice
• Make sure the Balance is placed on a stable workbench before use
• Ambient Temperature should be within 5~ 40 ℃
• Environmental humidity should be within the range of 50% RH~ 60% RH
• The specified 15kg test weight should be used when calibrating
• Avoid use in strong electromagnetic interference environments
• Regularly clean the pan and keep the equipment clean
• Please disconnect the power supply when not in use for a long time
