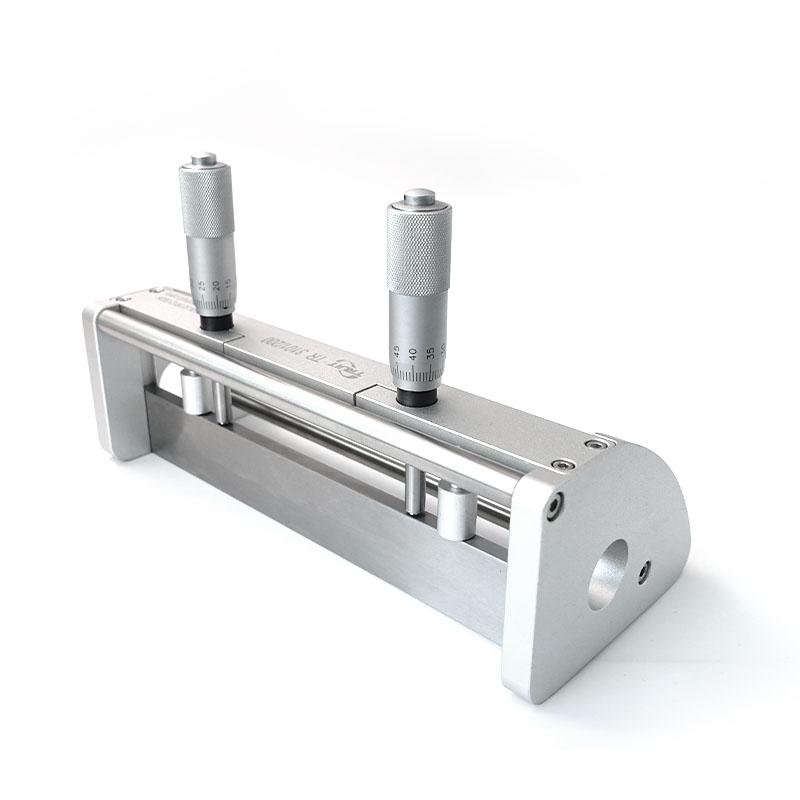

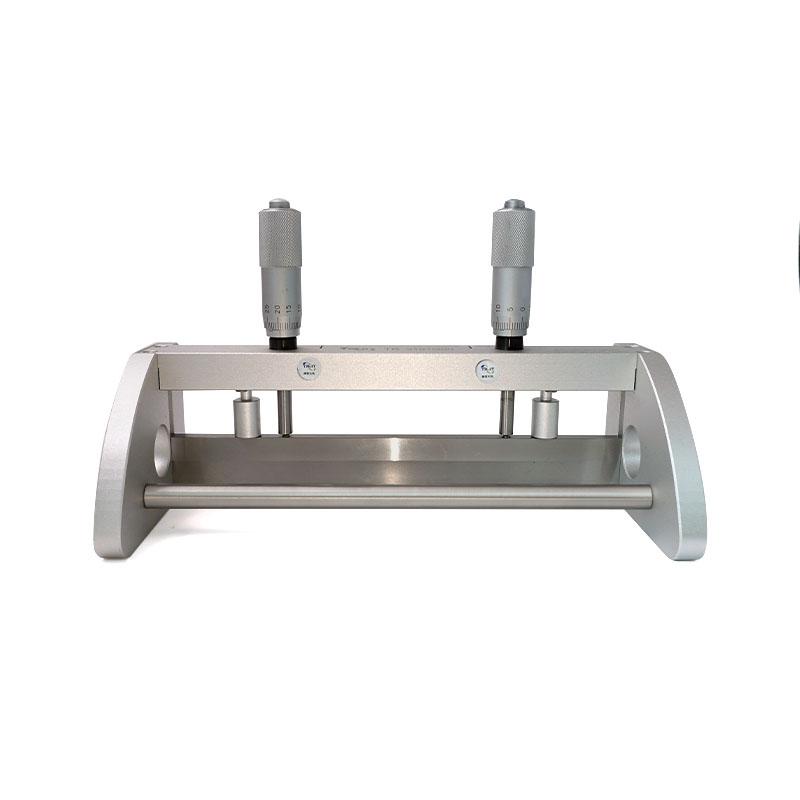

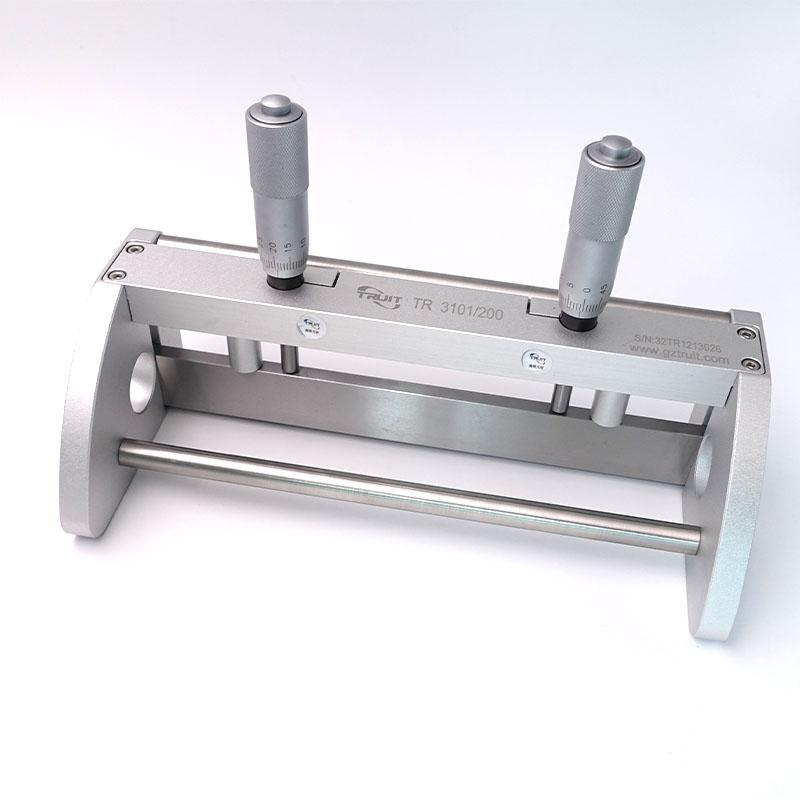

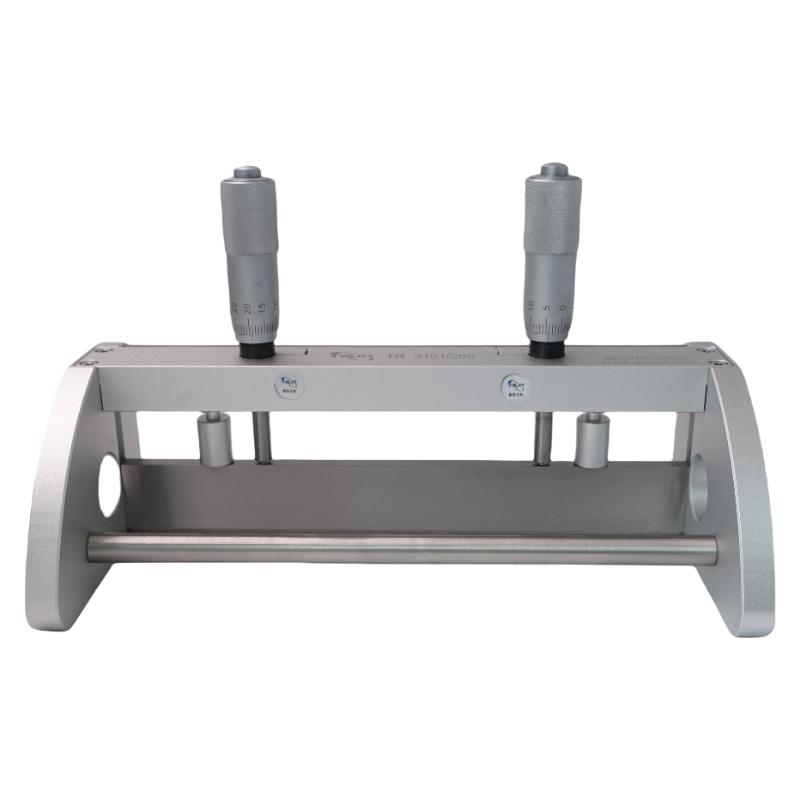

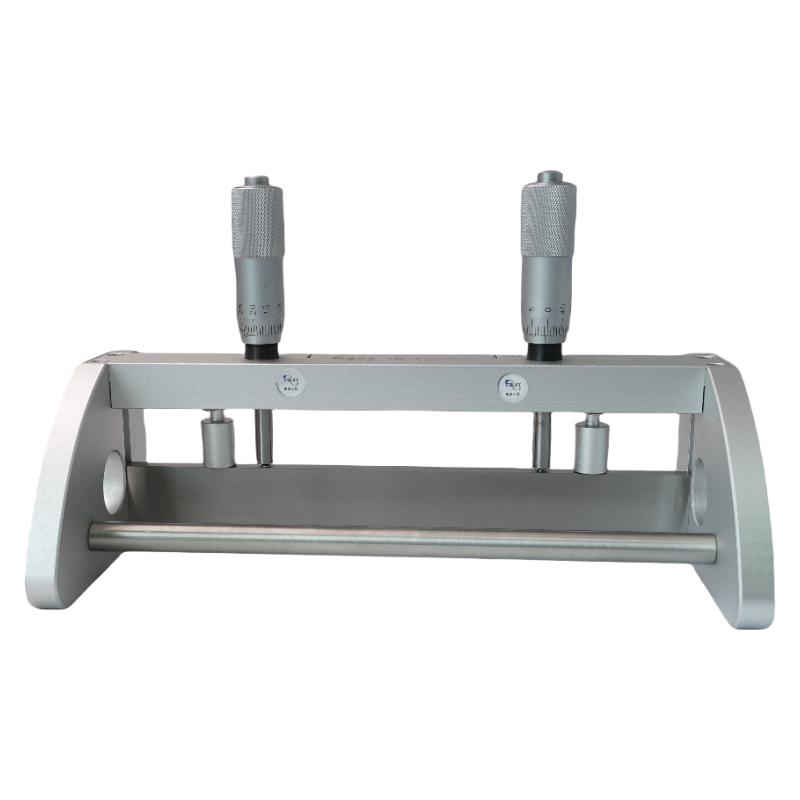

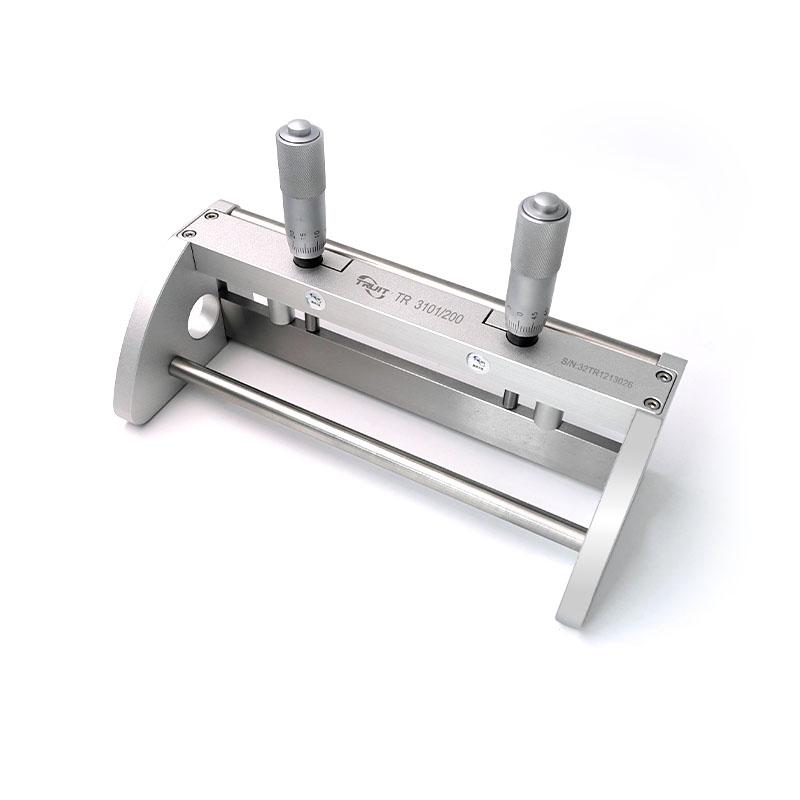

TRUIT TR 3101/200 Adjustable Film Applicator Magnetic scraper 0-4500μm Film thickness adjustment

Name: TRUIT TR 3101/200 Adjustable Film Applicator Magnetic scraper 0-4500μm Film thickness adjustment
Brand: TRUIT
SKU: NB043271
Price: 311.0 USD
Availability: InStock

$ 311.00Ex works

High-quality alloy steel scraper accuracy of +/- 2μm, magnetic suction design for easy cleaning and replacement, Film thickness adjustment range of 0-4500μm to meet the needs of different materials Moulding, acid and alkali corrosion bracket to ensure long-term stable use.

Model

Get Quote

Category : Film Applicator

Brand : TRUIT

SKU : NB043271

Service :The delivery and service By NBCLab.Com

Overview

Micrometer Film Applicator TR 3101/200 is an experimental tool for Spreader liquids or slurries on different surfaces, with the characteristics of adjustable film Film thickness. It consists of a high-quality alloy steel scraper and an anode-treated aluminum alloy bracket. The scraper adopts a magnetic suction design for easy replacement and cleaning. The bracket can adjust the film Film thickness from 0 to 4500 μm. It is suitable for Moulding proofing in Coating, inks, Adhesive, New material and other industries.

Features

1. The scraper is made of high-quality alloy steel, High Accuracy, High Hardness, Wear Resistance and Corrosion Resistance 2. The bracket is anode-treated aluminum alloy, non-decolorizing, acid and alkali resistance, corrosion resistance 3. Magnetic scraper for easy cleaning 4. Film Film thickness adjustable range 0~ 4500μm, resolution 10μm 5. Scraper error +/- 2μm, differential head accuracy +/- 2μm

Principle

By adjusting the two differentiators above the Applicator, the lower scraper can be adjusted up and down to control the gap, that is, the final Coating thickness. The bracket has the function of adjustable film Film thickness, and the spacing can be freely adjusted from 0 to 3000 μm to meet the diverse needs of different material Moulding.

Applications

Coatings, inks, Adhesives, New materials and other industries Moulding proofing, laboratory Coater supporting use

Steps

1. Adjust the differentiator to set the film Film thickness according to the needs 2. Install the scraper on the bracket by magnetic attraction 3. Spreader material placed on the surface of the substrate 4. Spreader operation with film applicator 5. Remove the scraper for cleaning after completion

Film width
200mm
wet film thickness
0~4500 μm
Reading method
Scale value
resolution
10
scraper error
±2 μm
Differential head accuracy
±2 μm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
