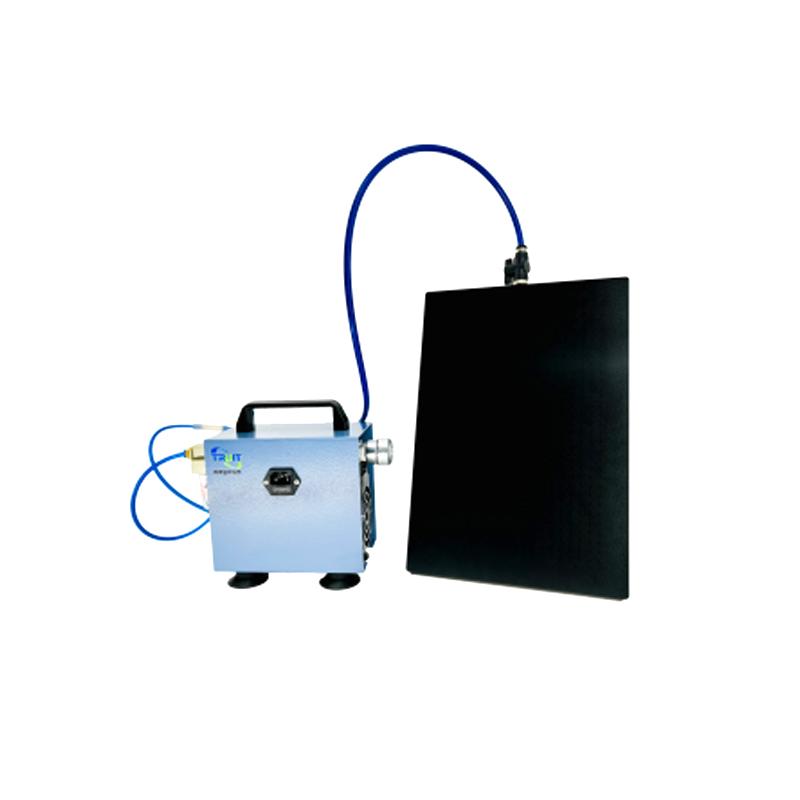

TRUIT TR 3502/A4 vacuum film stage A4 vacuum adsorption aluminum alloy material 176 holes

Name: TRUIT TR 3502/A4 vacuum film stage A4 vacuum adsorption aluminum alloy material 176 holes
Brand: TRUIT
SKU: NB043284
Price: 734.0 USD
Availability: InStock

$ 734.00Ex works

The principle of vacuum adsorption is used to ensure that the substrate is flat, the high-quality aluminum alloy material is matched with 176 vacuum holes, the hole spacing is 18mm, and the oil-free Vacuumpump power is 150W to achieve efficient and environmentally friendly Moulding operation.

Model

Get Quote

Category : Coating Bed

Brand : TRUIT

SKU : NB043284

Service :The delivery and service By NBCLab.Com

Overview

TR 3502/A4 vacuum film stage adopts the principle of vacuum adsorption, and the substrate is flat adsorption on the table for various Moulding. The film size is 360X250mm, using high-quality aluminum alloy material, the plate hole spacing is 18mm, a total of 176 vacuum holes ensure the adsorption effect, and the oil-free Vacuumpump is equipped to ensure the green environmental protection of the experiment.

Features

1. Made of high-quality aluminum alloy 2. High Accuracy grinding, surface anodic oxidation treatment 3. Special oil-free Vacuumpump with adjustable vacuum switch 4. Plate hole spacing 18mm, a total of 176 vacuum holes to ensure adsorption effect 5. Vacuumpump power 150W, voltage 220V

Principle

Using the principle of vacuum adsorption, negative pressure is generated by Vacuumpump, and the substrate is evenly adsorbed on the working surface of the vacuum Spreader table for various Moulding operations.

Applications

Moulding and Spreader Experiment

Steps

1. Place the substrate on the working surface of the vacuum film stage 2. Turn on the Vacuumpump and adjust the vacuum switch to the appropriate adsorption force 3. Moulding or filming 4. Turn off Vacuumpump after operation and remove substrate

material
High quality aluminum alloy
aperture
1mm
hole spacing
18mm
Number of holes
176.
Vacuumpump Voltage
220V
Vacuumpump power
150W
Drawdown Vacuum Plate Dimensions
360X250mm
Vacuumpump Dimensions
260X210mm
