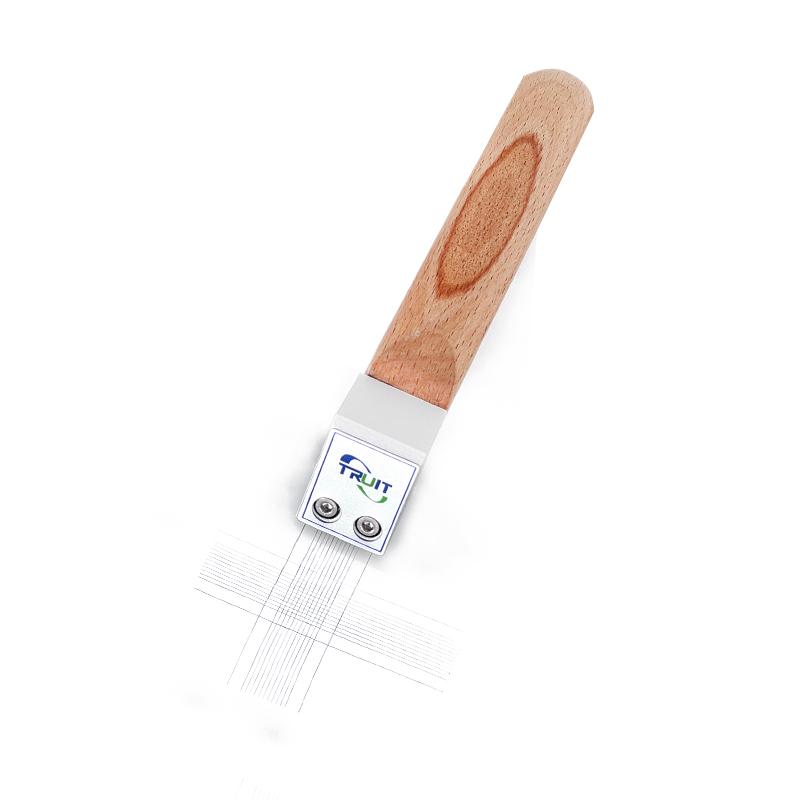

TRUIT TR 5001/1 Single Face Cross Hatch Cutter 1mm Pitch 6 Tooth Alloy Steel Inserts

Name: TRUIT TR 5001/1 Single Face Cross Hatch Cutter 1mm Pitch 6 Tooth Alloy Steel Inserts
Brand: TRUIT
SKU: NB043286
Price: 149.0 USD
Availability: InStock

$ 149.00Ex works

The ergonomic handshake design is labor-saving, and the blade can be easily replaced; the top width of the blade is less than 0.05mm, and the angle of the blade is 30 ° +/- 1 ° to ensure accurate scratching; it is suitable for hard substrates such as metals with film Film thickness less than 60μm.

Model

Get Quote

Category : Paint Film Cross-Cut Cutter

Brand : TRUIT

SKU : NB043286

Service :The delivery and service By NBCLab.Com

Overview

The TR 5001/1 Single Face Cross Hatch Cutter is an adhesion evaluation tool from the TRUIT brand for coating mass inspection and coating process control. It evaluates coating adhesion by drawing a lattice pattern on the coating surface and cooperating with tape testing. It is suitable for field inspection and laboratory research. It provides qualitative or semi-quantitative information on the bonding strength of the coating to the substrate. The product is made of wooden handle material and high-quality alloy steel blades, with a 1mm tooth spacing and a number of teeth 6.

Features

1. Ergonomic handshake design, effortless to use 2. The blade can be easily replaced 3. Blade material: high-quality alloy steel 4. Blade top width: less than 0.05mm 5. Blade angle: 30 ° +/- 1 °

Principle

Cross Hatch Cutter assesses coating adhesion by drawing a series of lattice patterns on the surface of the coating, then covering the scratched area with tape and quickly tearing it off. This method is simple and fast, and provides information on the bond strength between the coating and the substrate.

Applications

Coating mass inspection, coating process control, laboratory coating research

Standards

GB/T 9286、ASTM D3359、ASTM D3002、ISO 2409

Steps

1. Draw a grid pattern on the coating surface Step 2 Cover the scratched area with tape Step 3 Remove the tape quickly 4. Evaluate coating adhesion

Notice

• Suitable for film Film thickness < 60μm hard substrate (metal) • Make sure the blade is sharp and the top width of the blade is less than 0.05mm. • Pay attention to safety during operation and avoid scratches • Choose the appropriate knife spacing according to film thickness and substrate type

Number of teeth
6 teeth
Tooth spacing
1mm
Applicable film thickness environment
Film Film thickness < 60 μm hard substrate (metal)
Handle material
wood
Cutting head material
High quality alloy steel
application standard
GB/T 9286, ASTM D3359, ASTM D3002 and ISO 2409 standards
Blade top width
Less than 0.05mm
Blade angle
30°±1°
