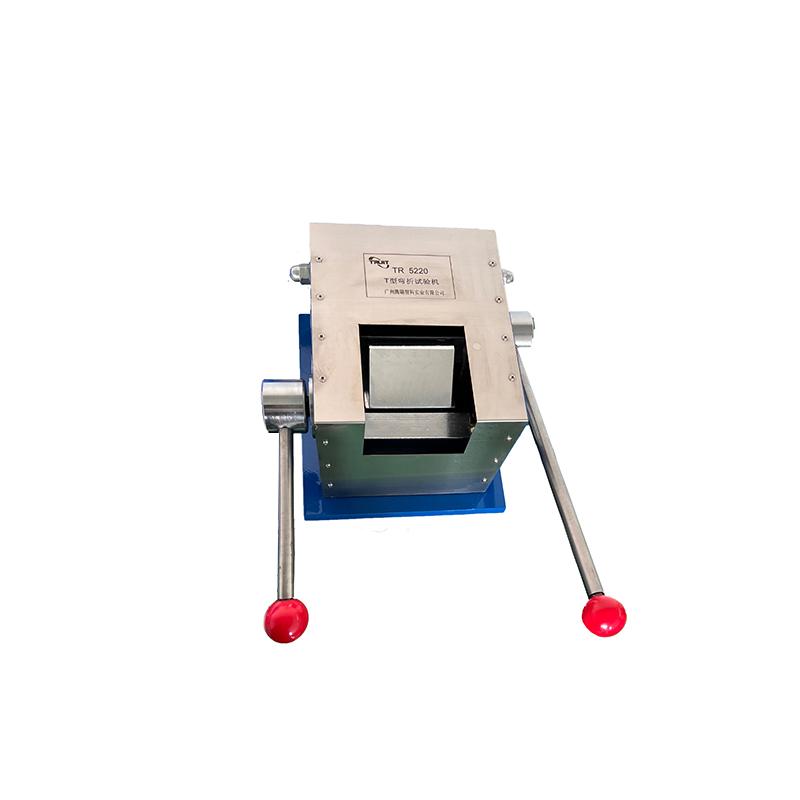

TRUIT TR 5220 T type bending Tester, color steel plate bending performance Tester

Name: TRUIT TR 5220 T type bending Tester, color steel plate bending performance Tester
Brand: TRUIT
SKU: NB043305
Price: 901.0 USD
Availability: InStock

$ 901.00Ex works

A bending angle is less than 45 degrees, can test 0.5~ 1.0mm Film thickness sample, flattening mechanism stroke is not less than 10mm, using crank lifting mechanism to achieve T-shaped bending test.

Model

TR 5220

Get Quote

Category : Bend Tester

Brand : TRUIT

SKU : NB043305

Service :The delivery and service By NBCLab.Com

Overview

T-type bending tester TR 5220 is designed to meet GB/T12754 standards to ensure accurate and reliable testing. It is mainly used to test the bending performance and bending strength of colored steel plates and steel strips, and can also be used to test Coating flexibility. During the test, the sample is placed on the support rod, and the bending force is applied through the loading rod to deform the sample. The tester can precisely control the force and record the deformation.

Features

1. Design in accordance with GB/T12754 standards to ensure test accuracy 2. Can test color steel plate, steel belt bending performance and Coating flexibility 3. Precise control of applied force and recording of deformation 4. Compact structure, easy to operate

Principle

By rotating the left handle, the square bending compaction is pressed to form a < 45 ° angle shape; by rotating the right handle, the crank lifting mechanism is driven to lift the triangular bending block, and the test piece is clamped or flattened to form a T-shaped bend.

Steps

1. Place the sample to be tested on the support rod of the testing machine 2. Turn the left handle to bend the test piece with square bending compacts 3. Turn the right handle to drive the crank lifting mechanism to operate the triangular bending block 4. Record the deformation of the sample

primary bend angle
＜45°
Flattening mechanism travel
≥10mm
Film thickness
0.5~1.0mm
