TRUIT TR 5230 film flexibility Tester film resilience Tester, seven steel shaft bars

Name: TRUIT TR 5230 film flexibility Tester film resilience Tester, seven steel shaft bars
Brand: TRUIT
SKU: NB043306
Price: 187.0 USD
Availability: InStock

$ 187.00Ex works

Equipped with seven steel shaft Rods of different diaMeters, it can simulate a variety of bending conditions, tested in 22 +/- 1 ° C environment, the shaft Rod length is 35 mm, which can accurately evaluate the film bending performance.

Model

TR 5230

Get Quote

Category : Flexibility Tester

Brand : TRUIT

SKU : NB043306

Service :The delivery and service By NBCLab.Com

Overview

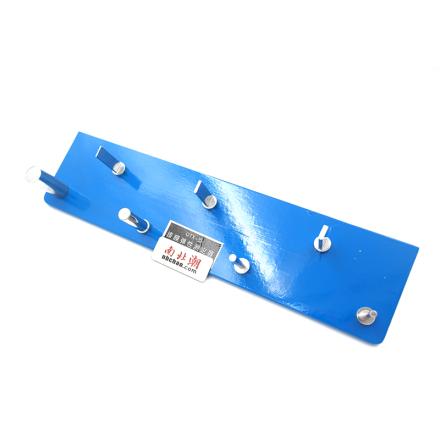

The film flexibility tester (TRUIT TR 5230) is a GB/T 1731 standard testing equipment, mainly used to evaluate the resilience performance of Coating membranes. The tester is composed of seven steel shaft rods of different thicknesses and diameters, which reliably simulates the force of Coating membranes in actual use. It is widely used in the quality control and research and development process of Coating industry.

Features

1. The paints film is applied to the metal plate and bent on the shaft rods of different diameters to determine the flexibility of the film. 2. The measurement is carried out at 22 +/- 1 ° C and the relative humidity is not more than 70%. 3. The equipment consists of seven steel shaft rods of different thicknesses and diameters, which are fixed on the seat frame. The seat frame can be fixed on the side of the test bench with screws. 4. Equipped with iron plate, Film thickness 0.2~ 0.3 mm, size 20 * 100~ 150 mm.

Principle

Coating film is placed on the tester during the test, and external force is gradually applied to produce bending deformation. The resilience characteristics and flexibility of the film are evaluated by observing the bending and deformation degree of the Coating film. Steel shaft rods of different diameters provide different force conditions, allowing testing of resilience deformation in different ranges.

Applications

Coating Industry

Standards

GB/T 1731

Steps

1. Measurement at 22 +/- 1 ° C with a relative humidity of not more than 70%. 2. Apply the paints film to the metal plate. 3. Place the metal plate coated with film on the tester. 4. Apply external force to the shafts of different diameters to bend them. 5. Observe the bending and deformation of the film.

Notice

• Determination should be carried out at 22 +/- 1 ° C with a relative humidity of not more than 70%. • Film thickness of 0.2~ 0.3 mm and size of 20 * 100~ 150 mm. • Ensure that the shaft rod and seat frame are firmly installed to avoid loosening during the test.

Length of each shaft rod
35Mm
Shaft rod 1 diameter
15mm
Shaft rod 2 diameter
10mm
Shaft rod 3 diameter
5mm
Shaft rod 4 diameter
4mm
Shaft rod 6 Size
Section 2 * 10mm, with a radius of curvature of 1mm
Shaft rod 7 Size
Section 1 * 10mm, with a radius of curvature of 0.5mm
Iron plate
Film thickness 0.2~ 0.3mm, Size 20 * 100~ 150mm
Meet the standard
GB/T 1731

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
