Overview

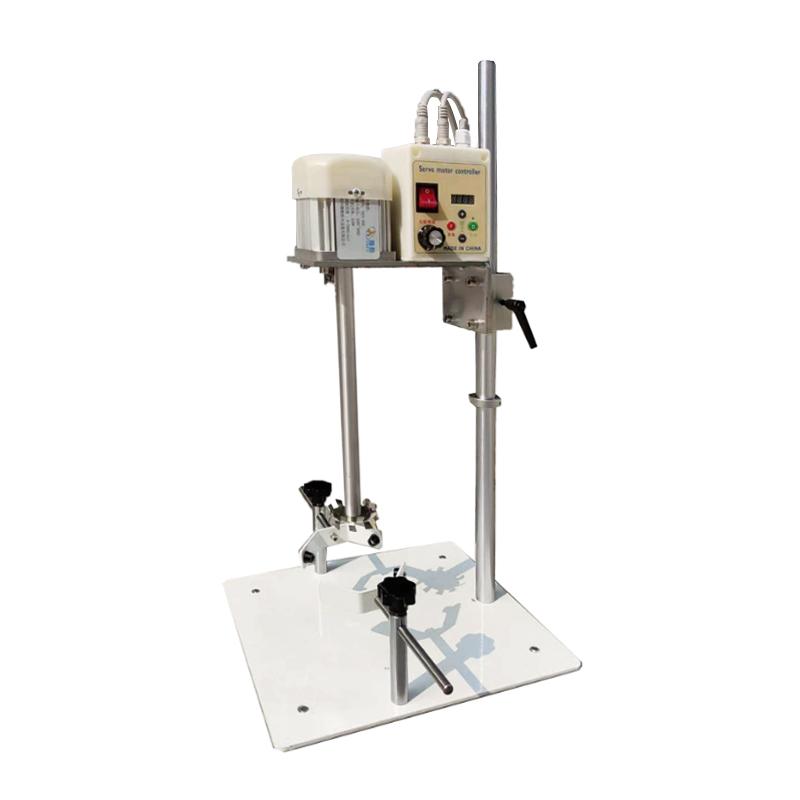

The FS-550 experimental high speed dissolver power is 550W and the diameter of the dispersion disc is 6 cm, which can be used to Stir and disperse various samples. The equipment supports frequency conversion speed regulation and adopts a servo brushless motor drive system to ensure stable and efficient operation, and can run continuously for 24 hours to meet the requirements of long-term experiments.
Features
1. Equipped with frequency conversion speed regulation function, the stirring speed can be flexibly adjusted to meet different sample needs
2. Adopt servo brushless motor, featuring high efficiency, reliability, and low noise
3. Use 304 stainless steel dispersion plate, corrosion resistance and high temperature resistance, easy to clean and maintain
4. Support 24 hours of continuous operation to ensure a continuous and stable Stirring process
5. The dispersion disc can be disassembled and replaced, making it easy to choose the appropriate dispersion disc according to the experimental requirements
Principle
The Disperser controls the speed of the servo brushless motor by variable frequency speed regulation, drives the stainless steel dispersion shaft and the dispersion disc swirl/spin, and realizes the Stir and dispersion of the sample. Users can flexibly adjust the stirring speed according to the experimental needs to ensure the precise control of the Stir effect.
Applications
Laboratory and industrial applications
Steps
1. Select the appropriate dispersion disk according to the experimental requirements
2. Install the dispersion plate onto the dispersion shaft
3. Connect the 220V power supply
4. Set the required speed (0~ 6500rpm) through the frequency conversion speed regulation function
5. Start the Device Stir Dispersion
6. Removable dispersion disc for cleaning and maintenance after use
Notice
• Power supply voltage 220V before use
• Select the appropriate dispersion dish according to the sample type
• Regularly clean and maintain 304 stainless steel dispersion plates
• Note that the continuous operation time of the equipment does not exceed 24 hours
• Pay attention to safety during operation and avoid contact with swirling/spinning parts
