Overview

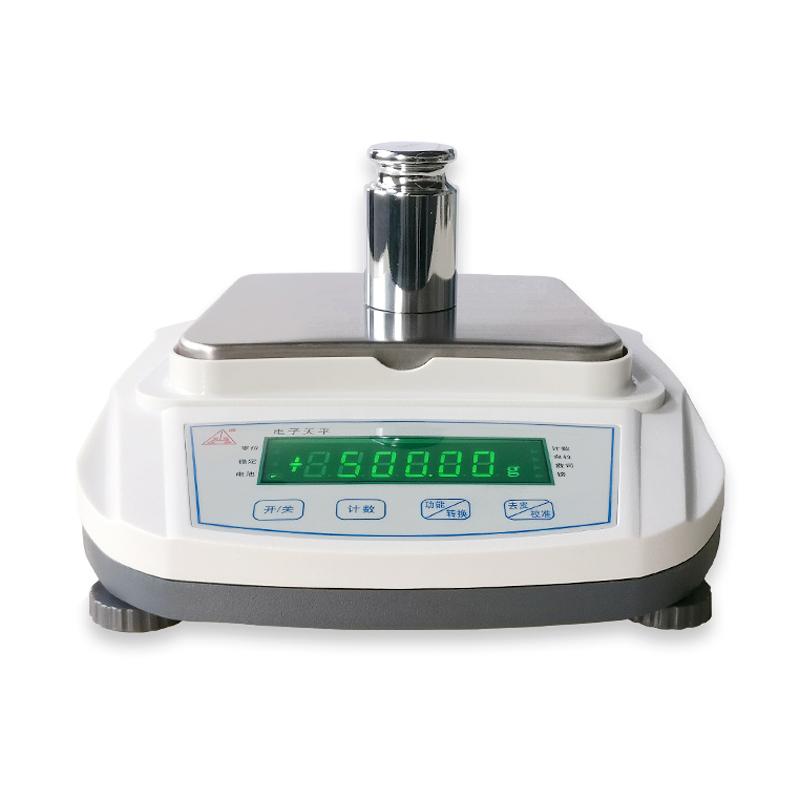

Tianma TD5001C Electronic Balance is a maximum range of 500g, accuracy of 0.1g Electronic Balance, equipped with 500g test weight and digital tube display, intuitive and clear display of weighing readings, using trapezoidal pan design.
Features
1, using trapezoidal pan
2. AC/DC dual-use function, equipped with rechargeable battery inside
3. With international unit conversion function
4. With counting function (point function), it can be easily used for counting Balance
5. Digital tube display
6, with peeling, weighing Automatic calibration, automatic clearing, zero automatic tracking and fault display and other functions
Principle
The Electronic Balance detects the weight signal through the Sensor, and visually displays the weighing result on the digital tube display screen after processing by the internal circuit. Automatic calibration and Zero tracking are supported to ensure accuracy.
Applications
Laboratory, industrial weighing, counting applications
Steps
1. Balance on a smooth surface
2. Connect the power supply or use the battery
3. Wait for stability after booting
4. Externally calibrated (using 500g weight)
5. Place the sample for weighing
6. Use peeling, counting and other functions
7. Read the display results
Notice
• Ensure Ambient Temperature 5~ 40 ℃, Humidity 50%~ 60% RH
• Externally calibrated before use to ensure accuracy
• Avoid operating on vibrating or unstable surfaces
• Regularly clean the pan to prevent contamination from affecting measurement
• If there is a fault display, check it in time and contact for maintenance.
