Overview

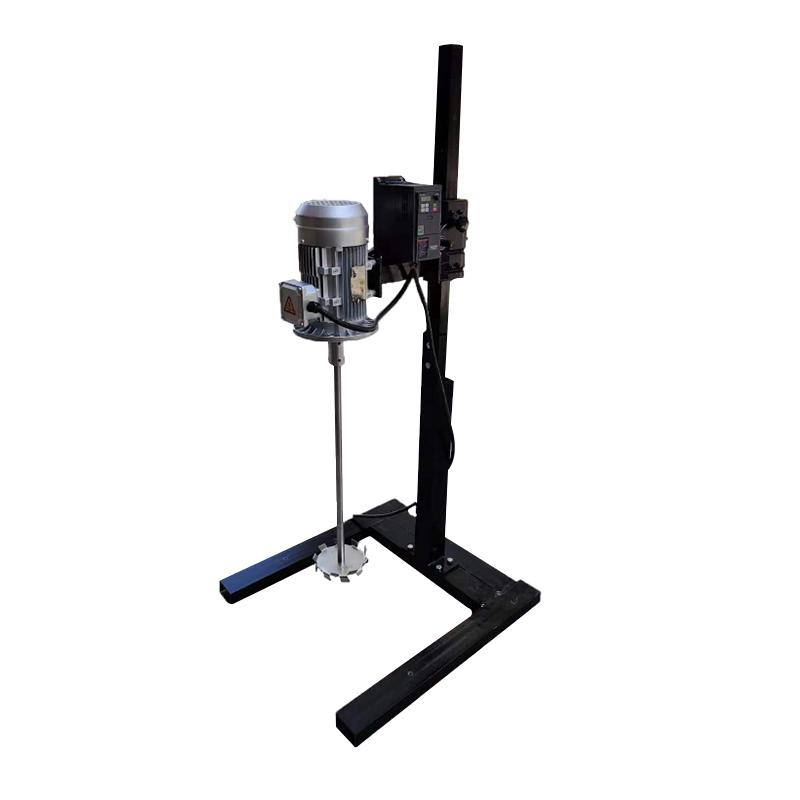

YakuFS-2.2KW Disperser is a frequency conversion brushless device with a power of 2200W and a diameter of 15 cm of the dispersion disc, which can be used to Stir and disperse various samples. The device supports frequency conversion speed regulation and adopts a servo brushless motor drive system to ensure stable and efficient operation. It can run continuously for 24 hours to meet the needs of long-term experiments.
Features
1. Equipped with frequency conversion speed regulation function, the stirring speed can be flexibly adjusted to meet different sample types and process requirements.
2. Using servo brushless motor, it has the characteristics of high efficiency, reliability and low noise, providing stable Stir power and long service life.
The use of 304 stainless steel dispersion plate, corrosion resistance, high temperature resistance, easy to clean and maintain.
4. Supports 24-hour continuous operation, suitable for long-term laboratory or industrial applications.
5. The dispersion disc can be disassembled and replaced, making it easy to choose the appropriate dispersion disc according to the experimental requirements.
Principle
The Disperser is powered by a servo brushless motor drive system, and combined with the variable frequency speed regulation function to control the stirring speed to realize the stirring and dispersion process of the sample. The stable operation of the motor ensures efficient dispersion, which is suitable for different process requirements.
Applications
Laboratory and industrial applications
Steps
1. Select the appropriate dispersion disc according to the experimental requirements and install it.
Connect the power supply and ensure that the voltage matches (220V or optional 380V).
3. Use the variable frequency speed regulation function to adjust the stirring speed to the desired range (0~ 3000rpm).
4. Start the device for Stir or Decentralized operation, which can support continuous operation.
5. After the operation is completed, turn off the power supply, clean and maintain the dispersion disk.
Notice
• Power supply voltage matching equipment requirements (220V or optional 380V).
The dispersion plate is made of 304 stainless steel to avoid contact with incompatible chemicals.
• Pay attention to the speed range when operating, do not exceed 0~ 3000rpm.
• Continuous operation time should not exceed 24 hours to avoid overheating of the equipment.
• Regularly clean the dispersion plate to maintain equipment hygiene and performance.
• When replacing the dispersion disc, ensure that the installation is firm and prevent loosening.
