Overview

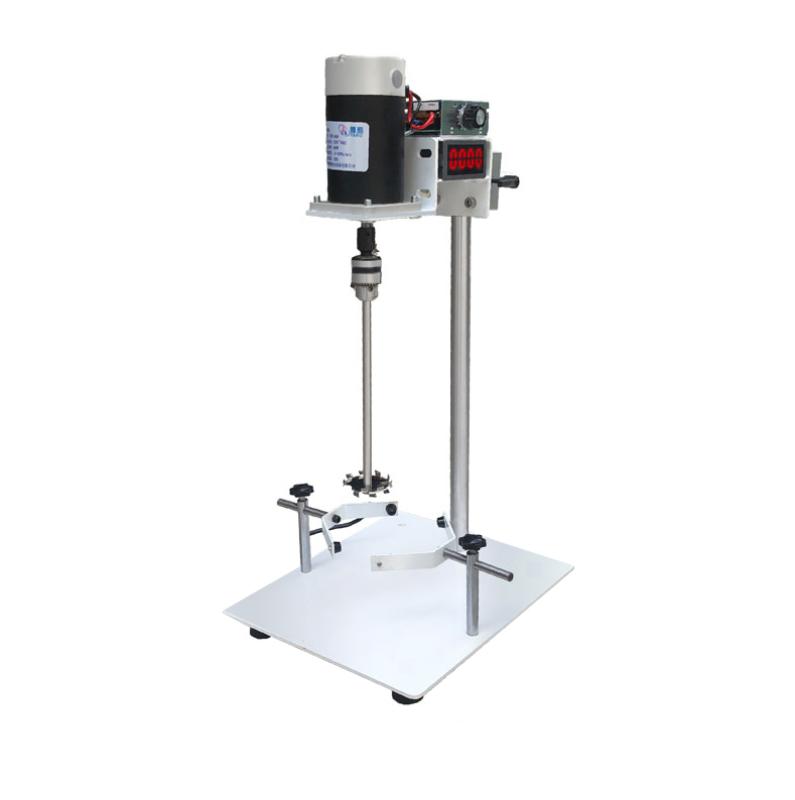

The Yakuf FS-680 Disperser is a manual lifting laboratory equipment that uses stepless speed regulation technology to achieve a wide range of speed adjustment from 0 to 4000 rpm. Equipped with a 6cm dispersion disc and a set of barrel clips, it supports continuous work and instant lifting functions. It is suitable for mixing, Stir and disperse operations of samples in laboratory and industrial fields.
Features
1. The lifting stroke is 32 centimeters, and the Stirrer height can be flexibly adjusted as required.
2. Using 304 stainless steel dispersion plate, with good corrosion resistance and high temperature performance, easy to clean and maintain.
3. Equipped with a bucket fixture to ensure Stability and Safety during Stirring.
4. Support 0~ 4000rpm stepless speed regulation and continuous working mode.
Principle
The Disperser drives the dispersion shaft swirl/spin through the motor, which drives the stainless steel dispersion plate to cut at high speed in the sample to achieve mixing and dispersion. The manual lifting mechanism allows the user to adjust the working position according to the height of the container, ensuring operational flexibility and efficiency.
Applications
Laboratory, industrial field
Steps
1. Secure the sample container with a barrel clamp.
2. Manually adjust the lifting mechanism to the appropriate height.
3. Set the required speed (0~ 4000rpm).
4. Start the device for decentralized operation.
5. Turn off the power and clean the dispersion disk after completion.
Notice
• Ensure that the sample container is securely secured by the barrel fixture.
• Check whether the dispersion plate and lifting mechanism are normal before operation.
• Pay attention to the corrosion resistance of the dispersion plate when cleaning, and avoid the use of sharp tools.
• Monitor the operating status of the equipment when working continuously for a long time.
