Overview

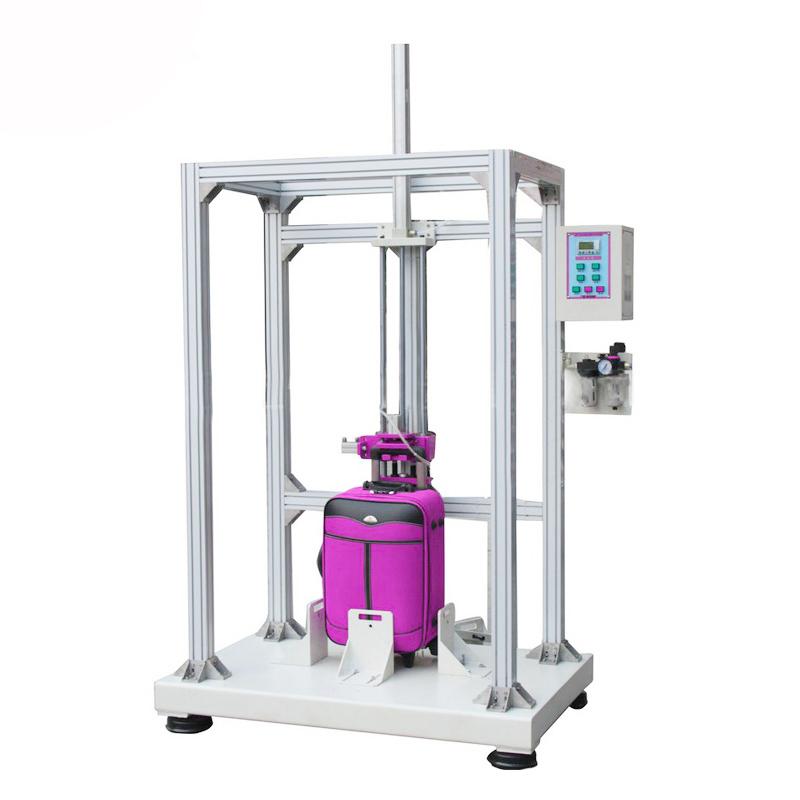

The machine for the bag tie rod reciprocating fatigue test, in the set pull-out and pressing frequency, through continuous switching, reciprocating pull-out and pressing the bag tie rod, inspection of its reciprocating fatigue performance, test the rod may produce the gap, loose, connecting rod failure, deformation and other issues.
Features
1. The frame is made of high-strength aluminum alloy to ensure a stable and durable structure.
2. The test stroke can be adjusted to meet the testing requirements of different luggage tie rods.
The stretching speed can be adjusted within the range of 0 to 30 cm/sec, and the compression speed can also be adjusted.
4. The setting range of test times is 1 to 999999 times, and it will automatically stop after reaching the set number of times.
5. The pneumatic cylinder is used as the test power source to provide a stable and reliable test force.
6. Equipped with adjustable size fixing clip seat, it is convenient to fix bags of different sizes.
7. The operating pressure range is 5 to 8 kilograms per centimeter to ensure the safety and effectiveness of the testing process.
8. Dimension is 120 × 120 × 210cm, weight 150Kg, compact structure.
9. The power requirements are 220V/50Hz, which is suitable for standard industrial power environment.
Principle
Driven by a pneumatic cylinder, the tester simulates the actual use scenario of the luggage tie rod. Within the adjustable test stroke, the tie rod is continuously pulled out and pressed at the set tensile and compression speeds. Through the process of sexual repeability, the fatigue performance of the tie rod is detected and the defects such as gap, looseness, failure or deformation of the connecting rod are evaluated.
Applications
Luggage tie rod fatigue test
Steps
1. Fix the bag on the adjustable fixed clip seat.
2. Adjust the test stroke and tensile and compression speeds to the required parameters.
3. Set the number of tests within the range of 1 to 999999.
4. Start the equipment, and the pneumatic cylinder starts to drive the tie rod for reciprocating pull-out and pressing operation.
5. The equipment automatically shuts down after reaching the set number of tests.
6. Check the tie rod for defects such as clearance, loosening, connecting rod failure or deformation.
Notice
• Ensure that the operating pressure is within the range of 5~ 8Kg/cm ² to avoid overpressure operation.
• When adjusting the test stroke and speed, follow the equipment operating specifications.
• When fixing the bag, make sure that the clip seat is adjusted properly to prevent loosening during the test.
• The power supply of the equipment is 220V/50Hz, and it is necessary to ensure stable voltage during use.
• Regularly check the pneumatic cylinder and frame structure to ensure the normal operation of the equipment.
• During the test, avoid personnel approaching moving parts to prevent accidental injury.
