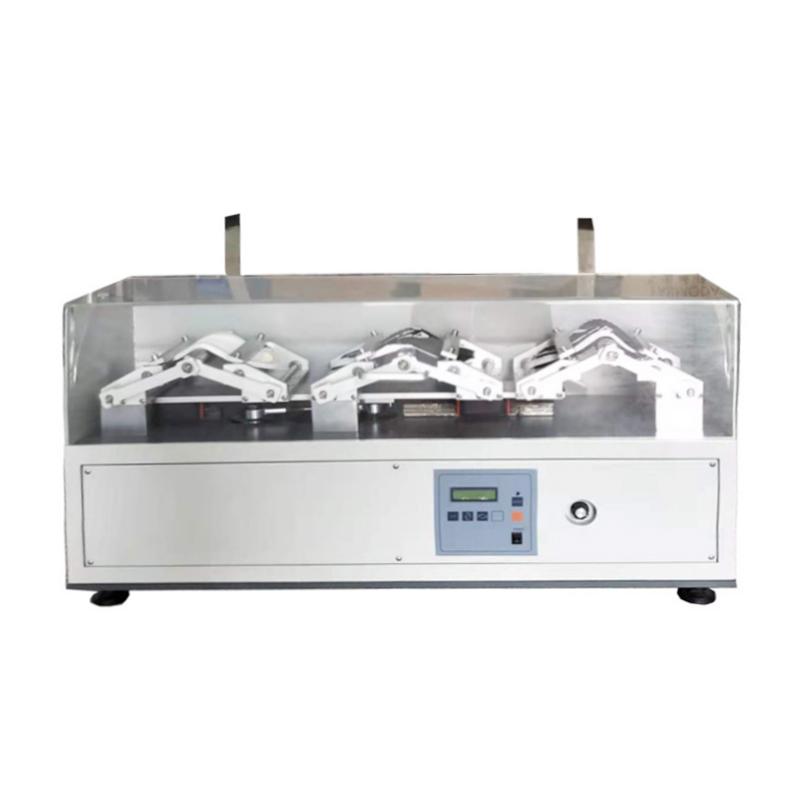

BLD-105A EN sole folding test machine, cut growth rate test three outsoles

Name: BLD-105A EN sole folding test machine, cut growth rate test three outsoles
Brand: BoLaiDe
SKU: NB043427
Price: 1607.0 USD
Availability: InStock

$ 1607.00Ex works

The equipment can test three outsoles at the same time, the folding angle is 90 ° +/- 2 °, the folding speed is adjustable from 5 to 150r/min, and the tortuous performance of the sole is evaluated by measuring the growth rate of the incision.

Model

BLD-105A

Get Quote

Category : Folding Endurance Tester

Brand : BoLaiDe

SKU : NB043427

Service :The delivery and service By NBCLab.Com

Overview

EN sole bending resistance tester (model: BLD-105A) is a device used to evaluate the bending resistance performance of the sole. By installing the sole test piece on the testing machine, the incision is located directly above the center of the shaft, and the test piece is driven to (90 +/- 2) ° bending and stretching. After a certain number of tests, the length of the incision is measured to evaluate the bending resistance performance of the sole with the growth rate of the incision. Three outsoles can be tested at the same time.

Features

1. Three outsoles can be tested simultaneously to improve testing efficiency 2. The folding angle is precisely controlled at 90 ° +/- 2 ° to ensure test accuracy 3. The folding speed can be adjusted within the range of 5 to 150r/min to adapt to different test requirements 4. The diameter of the zigzag shaft is 30mm, which meets the standard requirements 5. Power is 380W, Power supply voltage AC220V 5A, easy to operate

Principle

Install the sole test piece on the EN zigzag tester to ensure that the incision falls directly above the center of the shaft. The tester drives the test piece to perform a (90 +/- 2) ° tensile zigzag motion on the shaft. After a certain number of tests, the length of the incision of the test piece is measured and the incision growth rate is calculated to evaluate the torsion resistance performance of the sole.

Standards

GB/T20991、GB21148、SATRA TM161、EN20344、ISO-17707、EN344

Steps

1. Install the sole test piece on the testing machine to ensure that the incision is located directly above the center of the shaft Set the folding angle to (90 +/- 2) ° 3. Adjust the folding speed within the range of 5 to 150r/min as needed 4. Start the testing machine for tortuous testing 5. Stop after the predetermined number of tests, measurement of incision length 6. Calculate the notch growth rate and evaluate the tortuous performance of the sole

Zigzag angle
(90±2)º
speed
Adjustable from 5 to 150r/min
Zigzag shaft diameter
30mm
weight
About 118kg
power
380w
power supply
AC 220V 5A
