PUSHEN 0-25um GrindoMeter single-channe stainless steel material 12mm slot width

Name: PUSHEN 0-25um GrindoMeter single-channe stainless steel material 12mm slot width
Brand: Pushen
SKU: NB004350
Price: 197.0 USD
Availability: InStock

$ 197.00Ex works

Made of stainless steel, with a slot width of 12mm and Graduation of 2.5μm, the single-channe design is easy to operate and suitable for particle fineness testing.

Model

Get Quote

Category : Fineness Gauge

Brand : Pushen

SKU : NB004350

Service :The delivery and service By NBCLab.Com

Overview

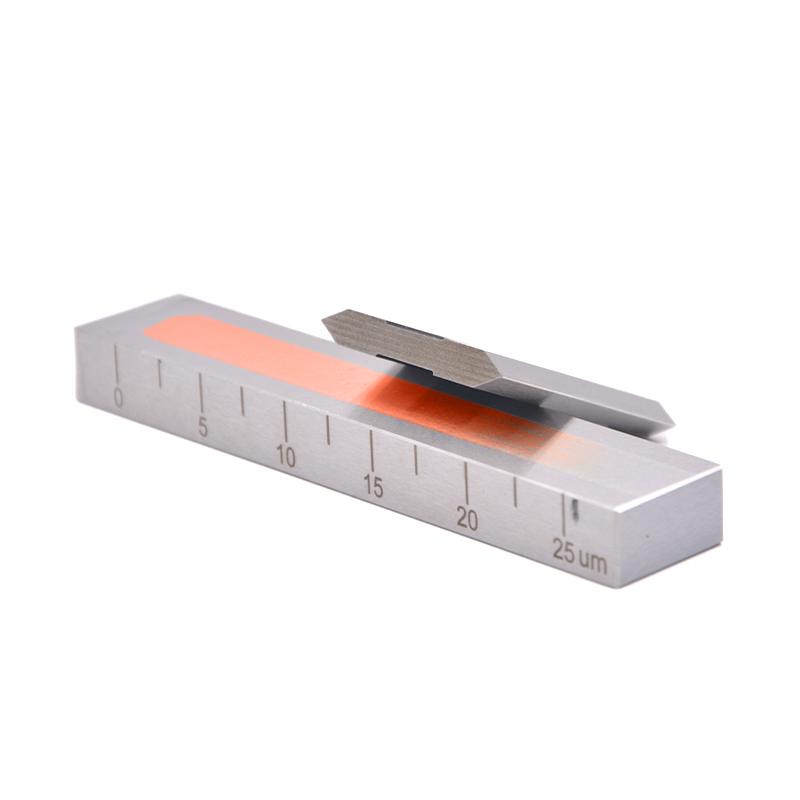

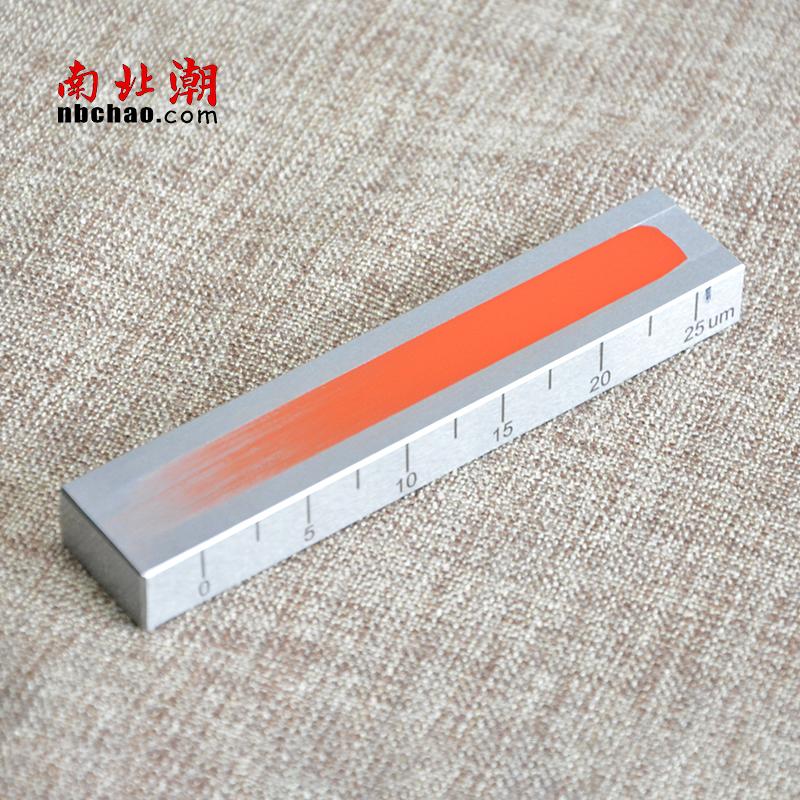

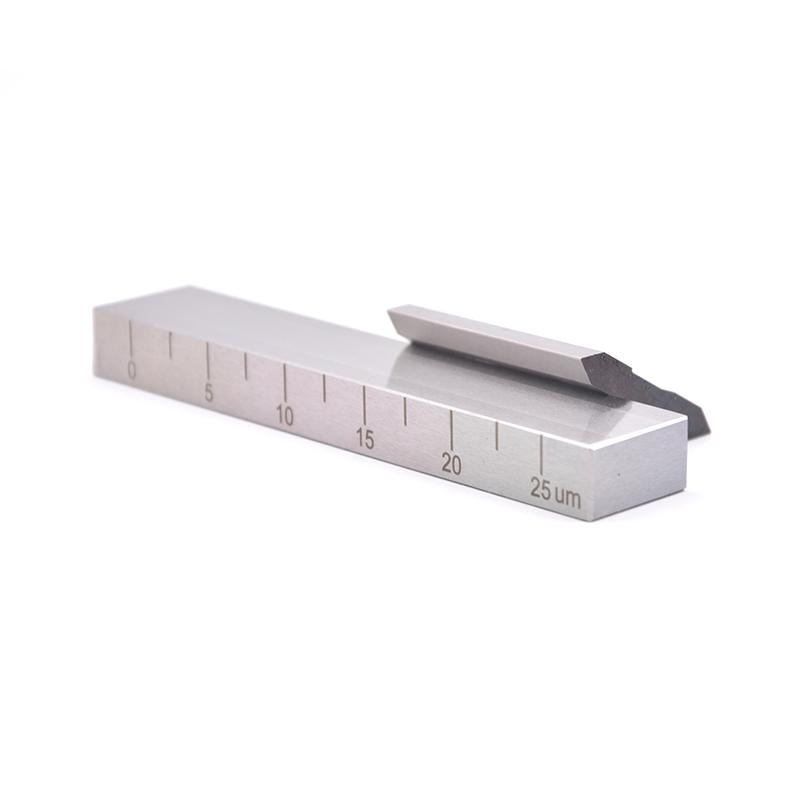

The PUSHEN single-channe small Grindometer is a professional measuring instrument for detecting particle fineness such as Coatings and inks, model 0-25μm. The product is made of stainless steel and has a single-channe design. The groove width is 12mm, the overall size is 120 * 25 * 13mm, and the Graduation is 2.5μm.

Features

1. Made of stainless steel, with strong durability 2. Single-channe design, easy to operate 3. Range of 0~ 25μm, suitable for fine measurement 4. The scale unit is micron (μm), Graduation accuracy to 2.5 μm 5. The width of the groove is 12mm, which meets the standard specifications 6. Compact overall size, easy to carry and use

Principle

The fineness meter determines the particle fineness according to the distribution of the sample on the scale tank by placing the sample to be tested in the scraping tank and using a scraper to scrape the surface of the sample. By observing the distribution of the sample in the range of 0~ 25 μm scale, the particle fineness of materials such as Coatings and inks can be accurately measured.

Applications

Coatings, inks

Steps

1. Place the sample to be tested in the scraper tank 2. Use a scraper to evenly scrape the surface of the sample 3. Observe the distribution of the sample on the scale tank 4. Read the corresponding fineness value 5. Record measurement results

Notice

• Make sure the scraper and tank are clean and drying before use • Maintain uniform force when scraping flat • Avoid collision between scraper and groove body • Clean the instrument in time after measurement Store in a drying environment

Scraper Type
single-channe
Number of grooves
1
Range
0~25μm
Scale unit
μm
Scraper material
stainless steel
Scraper Size
120*25*13mm
Groove width
12mm
Graduation
2.5μm
