Overview

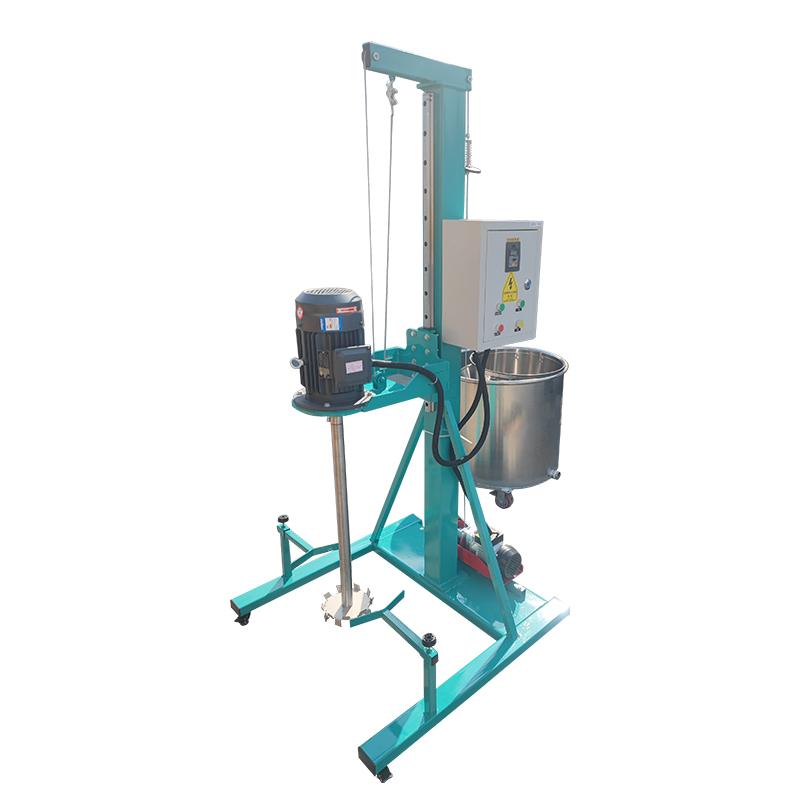

GFJ2800 Disperser is a factory-sold high-speed dispersion equipment for Stir dissolving, dispersing and homogenizing a variety of mixed liquids and solids. It uses a speed-regulating motor as the main motor, which can operate in the speed range of 80-1200 rpm, medium speed for Stir dissolving, high speed for dispersion homogenization, and is widely used in the production process of chemical products such as Coatings, pigments, inks, gluing agents, etc.
Features
1. The column lifts smoothly and flexibly, with easy operation and maintenance and accurate positioning.
2. Stir system vibration, low noise, Stir shaft speed adjustable.
3. According to user requirements, a machine can be equipped with multiple containers, which can be used alternately.
4. Use explosion-proof motor, with explosion-proof qualification.
Principle
Through the high-speed swirl/spin of the blade, the material is violently flipped up and down in the container, and collides and shears with the blade, thereby rapidly dispersing and homogenizing the mixing, and accelerating the dissolving process.
Applications
Coatings, pigments, inks, gluing agents
Steps
1. Start the speed regulating motor and adjust the speed as needed (medium speed for Stir dissolving, high speed for dispersion homogenization).
2. Use the electric lifting function to adjust the position of the dispersion plate.
3. Put the material into the container and ensure that the container size does not exceed 450mm in diameter and 650mm in height.
4. Run the equipment for decentralized processing, with a processing capacity range of 10 to 100 liters.
Notice
• Ensure that the container size does not exceed the maximum allowable size (diameter 450mm, height 650mm).
• When operating, pay attention to the speed range within 0~ 2800rpm.
When using explosion-proof motors, comply with relevant safety regulations.
• Regularly check the column lifting and Stirring system to ensure smooth operation.
