Overview

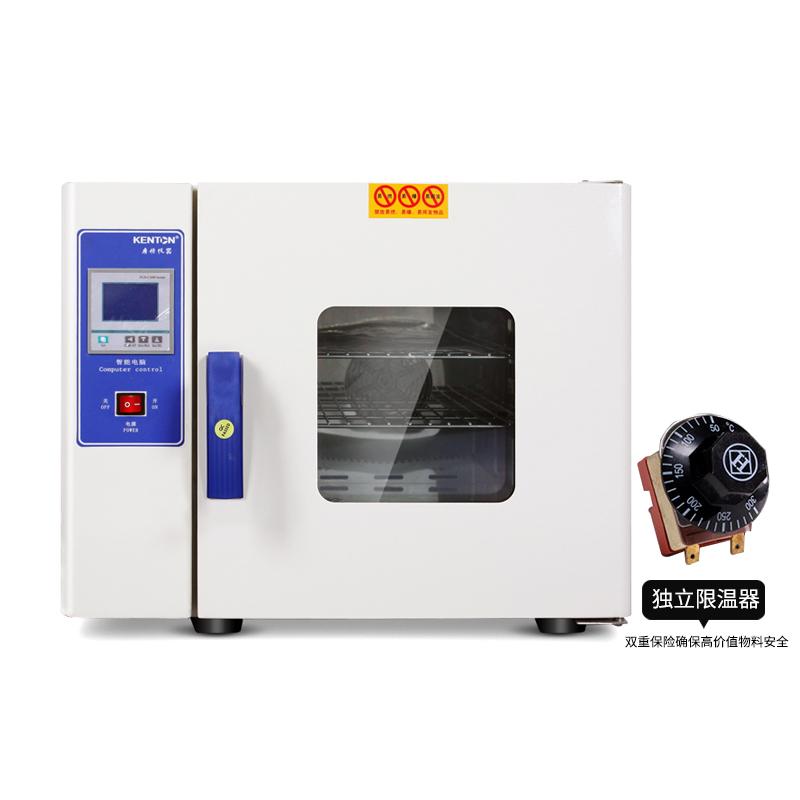

The Kenton DHG-9070 + independent temperature limiter is a precision LCD screen thermostatic drying oven with a volume of 70L and a Temperature range of RT + 5 to 250 ° C. The device uses a PID LCD display and an independent temperature limiter to ensure accurate and stable temperature control.
Features
1. Independent temperature controller comes standard, providing additional safety
2. PID LCD display, temperature resolution up to 0.1 ℃
3. Mirror stainless steel studio material, corrosion resistant and easy to clean

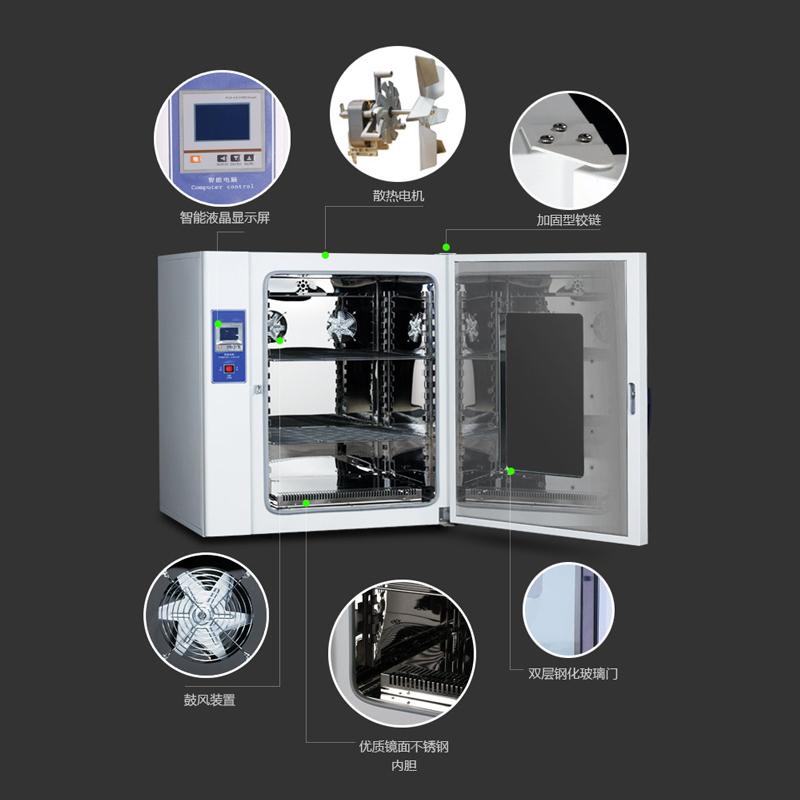

4. Three-sided + front air circulation duct design, good temperature uniformity
5. RS-485 microcomputer interface, supports remote communication control
6.0~ 999Min wide range timing function
7. Silicone door sealing and thermal insulation cotton insulation material, excellent thermal insulation performance
Principle
The equipment generates heat through an electric heating tube, and adopts a PID intelligent temperature control system to precisely adjust the temperature. The circulating air duct design with three sides + front air outlet ensures uniform temperature distribution inside the studio, and the independent temperature limiting controller provides double temperature protection.
Applications
Laboratory sample drying, material heat treatment, electronic component aging test, pharmaceutical product drying, scientific research experiment
Standards
The product information does not mention specific compliance standards
Steps
1. Connect the 220V power supply
2. Set the required temperature and time through the PID LCD screen
3. Start the device to start heating
4. The device automatically maintains the set temperature
5. Automatically stop working after the timing ends
Notice
• Power supply voltage matching 220V before use
Do not use in humid or flammable environments
• Regularly clean the studio to maintain hygiene
• Avoid touching high-temperature surfaces during operation
• Disconnect the power supply when not in use for a long time
