Overview

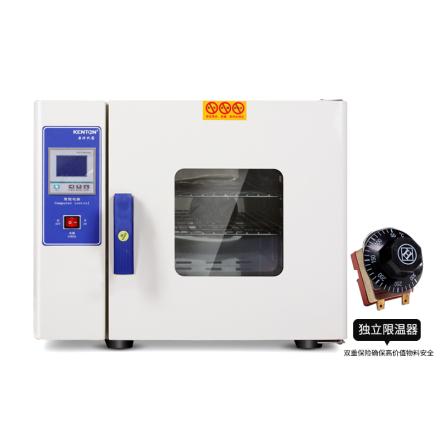

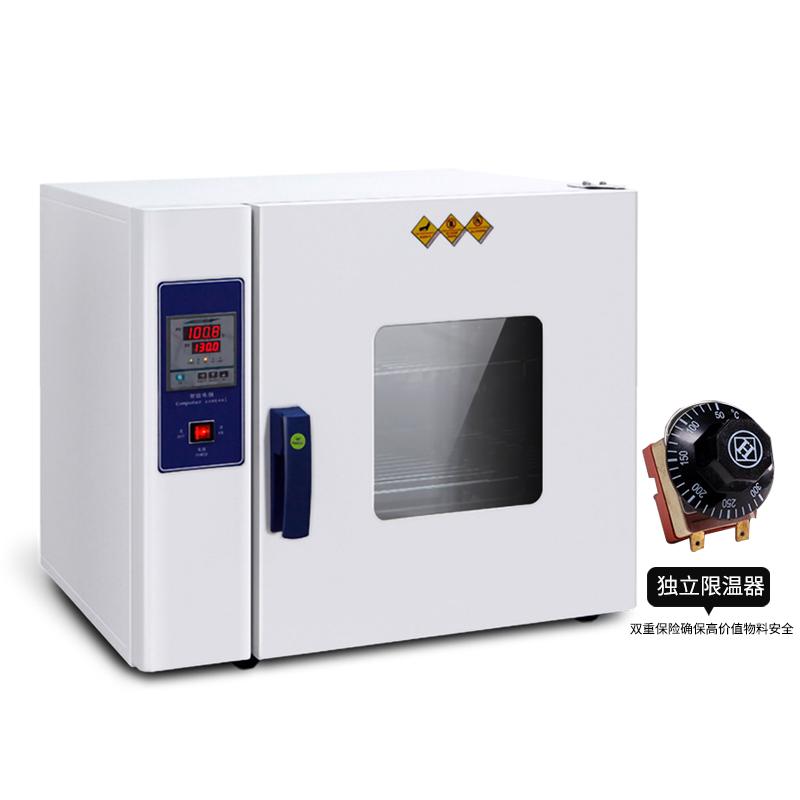

Kenton DHG-9040C + independent temperature limiter thermostatic drying oven is a laboratory equipment using microcomputer PID digital temperature control instrument, Temperature range is RT + 5~ 250 ℃, temperature resolution +/- 0.5 ℃, Temperature Fluctuation +/- 1%, volume 40L, the studio is made of mirror stainless steel, equipped with independent temperature controller and high temperature bearing, suitable for precise thermostatic drying treatment.
Features
1. Microcomputer PID digital display temperature controller, accurate and stable temperature control
2. Independent temperature controller standard, enhanced safety performance
3. High temperature bearing and cooling fan design to extend service life
4. The studio is made of mirror stainless steel, which is easy to clean and corrosion-resistant
5. Three-sided + front air circulation duct, uniform temperature distribution
6. Silicone door sealing and stable cotton heat insulation material, good thermal insulation effect
Principle
The drying oven generates heat through an electric heating tube (201 stainless steel), which is heated on a single-sided heating surface. With three-sided + front air circulation ducts and cooling fans, the hot air is evenly circulated inside the studio. The microcomputer PID digital display temperature control instrument monitors and adjusts the temperature in real time to ensure that the temperature is stable at the set value, and the independent temperature limit controller provides additional temperature protection.
Applications
Laboratory, scientific research, education, industry, medicine, food, chemical industry, electronics
Steps
1. Connect single-phase AC220V/50Hz power supply
2. Turn on the power switch of the device
3. Set the required temperature (RT + 5~ 250 ℃) and timing time (0~ 999min) through the microcomputer PID digital display thermometer
4. Start the heating and wait for the temperature to stabilize
5. Turn off the power after use, and clean the studio after chilling down
Notice
• The working environment humidity should be lower than 70% RH, avoid using in humid environment
• The shipment weight is 39Kg, pay attention to safety when handling
• Power supply voltage matching single phase AC220V/50Hz before use
• Regularly check door sealing and heat insulation materials to ensure thermal insulation performance
• Avoid direct contact with the surface of the equipment at high temperatures to prevent burns
