Overview

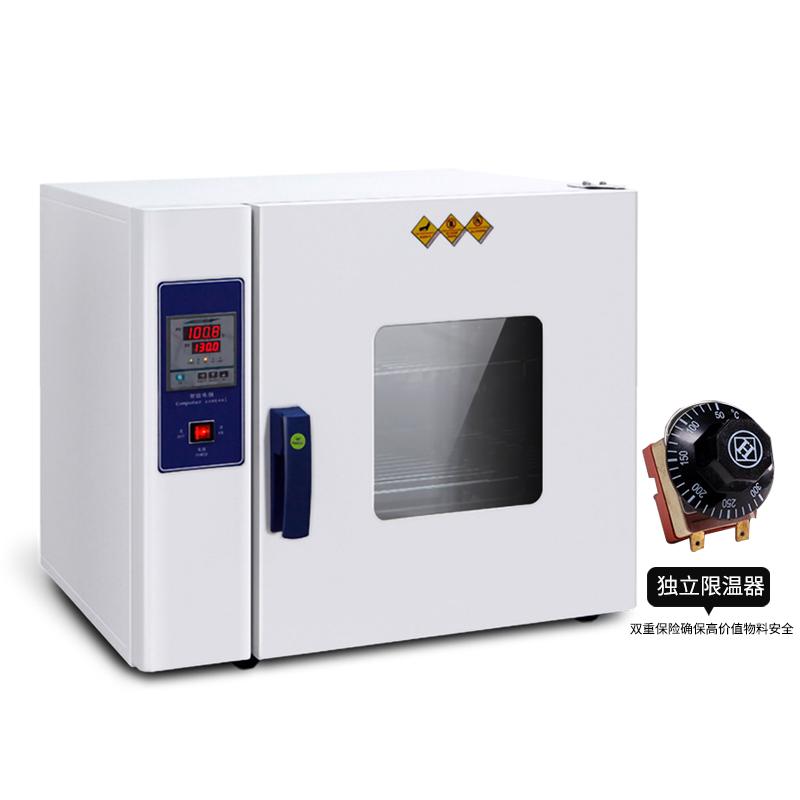

The Kenton DHG-9230C + Independent Temperature Limiter thermostatic drying oven is a high performance laboratory equipment with microcomputer PID digital display temperature control instrument, Temperature range RT + 5~ 250 ℃, temperature resolution +/- 0.5 ℃, Temperature Fluctuation +/- 1%, Studio volume 230L, suitable for precise temperature control drying and heating applications.
Features
1. Microcomputer PID digital display temperature controller, accurate and stable temperature control
2. Independent temperature controller, standard safety protection
3. Mirror stainless steel studio, corrosion resistant and easy to clean
4. Three-sided + front air circulation duct, good temperature uniformity
5. High temperature bearings and cooling fans extend service life
6. Silicone door sealing and stable cotton heat insulation material, excellent thermal insulation performance
7. Timing function 0~ 999min, flexible and convenient operation
Principle
The drying oven generates heat through an electric heating tube (201 stainless steel). It adopts a single-sided heating method, combined with a three-sided + front air outlet circulating air duct system, so that the hot air is evenly distributed inside the studio. The microcomputer PID temperature controller monitors and adjusts the temperature in real time to ensure that the temperature is stable at the set value, and the independent temperature limit controller provides additional safety protection.
Applications
Laboratory sample drying, material heat treatment, electronic component aging test, pharmaceutical industry drying, Food processing, chemical experiment
Steps
1. Connect power supply AC220V/50Hz
2. Turn on the power switch of the device
3. Set the required temperature through a microcomputer thermostat (RT + 5~ 250 ° C)
4. If you need timing, set the Timer Range 0~ 999min
5. Start the heating and wait for the temperature to stabilize
6. Turn off the power after use
Notice
The working environment humidity should be less than 70% RH
• Equipment shipment weight 105Kg, be careful when handling
• Check whether the Power supply voltage is single phase AC220V before use
• Regularly clean the studio to maintain the mirror stainless steel surface
• Avoid over-temperature use and pay attention to the status of the independent temperature limiter
• Do not open the door for a long time when the equipment is running, so as not to affect the temperature uniformity
