Overview

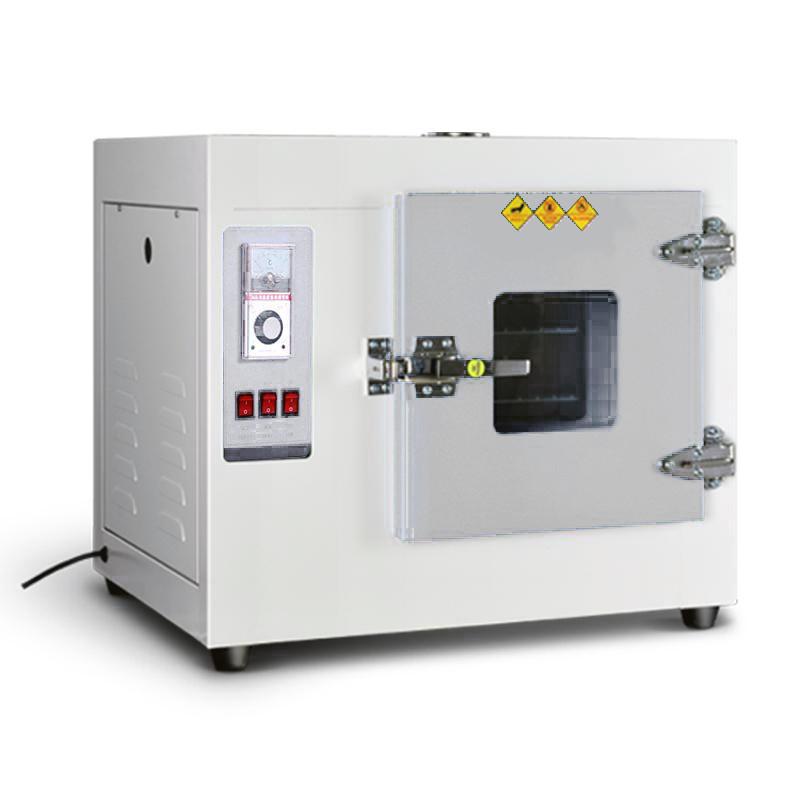

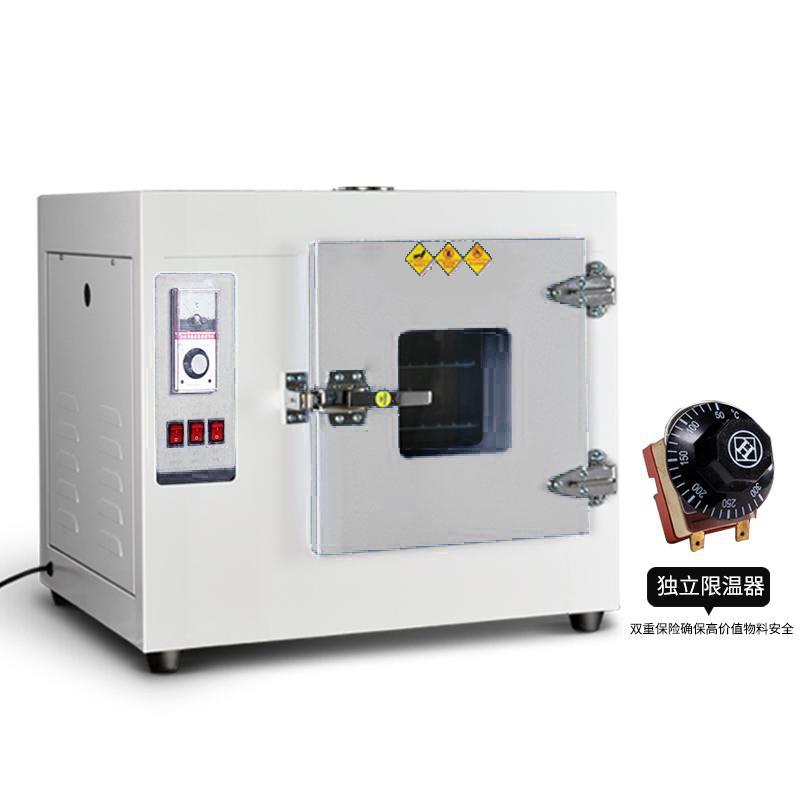

The Kenton 101-0 + independent thermostat pointer electric air blowing dryer is a drying device for industrial and mining enterprises, laboratories and R & D institutions, providing drying, baking, heat treatment and heating functions. The device uses a pointer thermostat with an independent temperature controller. Temperature range is RT + 5~ 300 ° C, Temperature Accuracy +/- 1 ° C, Volatility +/- 1%.
Features
1. Thermostat optional pointer or microcomputer intelligent PID digital display
2. The shell is sprayed with metallic paint, and the overall design is beautiful and generous
3.The hot air circulation system consists of low noise fans and air ducts
4.Mirror stainless steel or galvanized steel liner

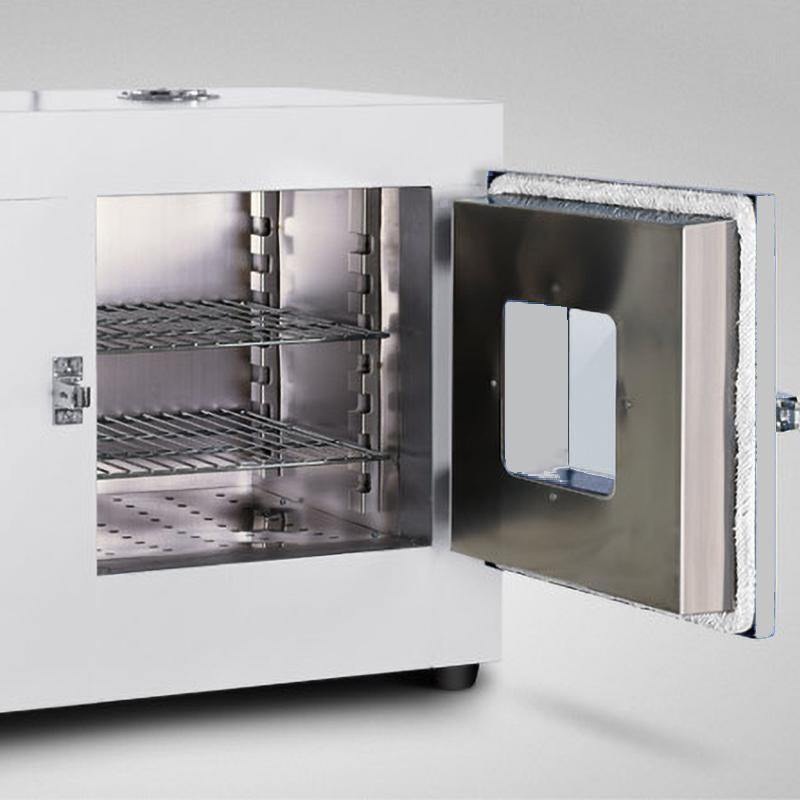

5. The height and number of shelves in the studio can be adjusted, which is convenient for accessing samples of different specifications

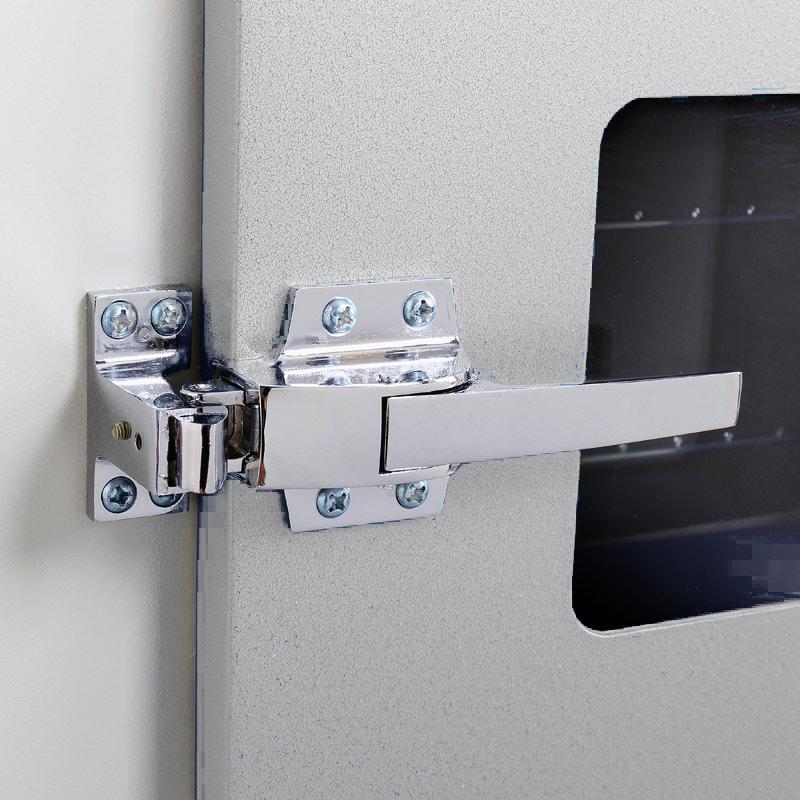

6. The box door is equipped with double-decked tempered Glass observation window, which can clearly observe the contents of the box
7. Optional accessories include intelligent digital temperature controller with timing function and independent temperature controller
Principle
The drying oven is heated by an electric heating element, combined with a hot air circulation system (composed of a low-noise fan and an air duct) to achieve a uniform temperature distribution, and the pointer thermostat monitors and adjusts the temperature to ensure that the temperature in the working room is stable within the set range.
Applications
Industrial and mining enterprises, laboratories, R & D institutions, basic laboratories, workshops
Steps
1. Connect the power supply to ensure that the voltage meets the specifications (e.g. 220V).
2. Adjust shelf height and quantity as needed
3. Set the pointer thermostat to the desired temperature
4. Start the device and monitor the sample through the observation window
5. Turn off the power after use and clean the equipment
Notice
• It is not recommended to use it uninterrupted for a long time
Samples with high temperature uniformity and high water content are not recommended
• For more expensive samples, it is recommended to install an independent temperature limiting controller
• Not suitable for volatile, flammable, explosive and other items to avoid explosion
