Overview

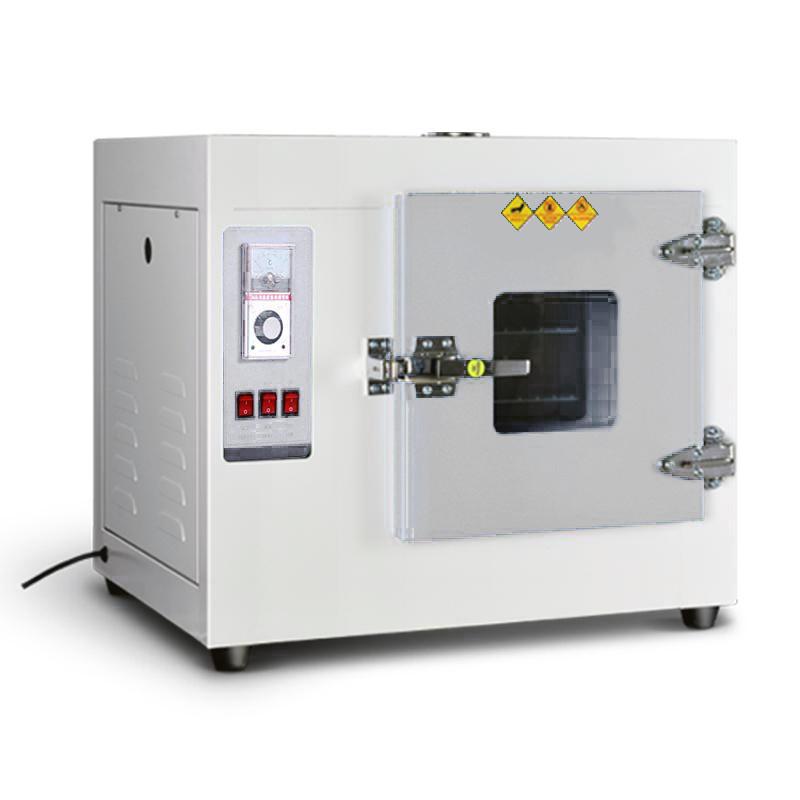

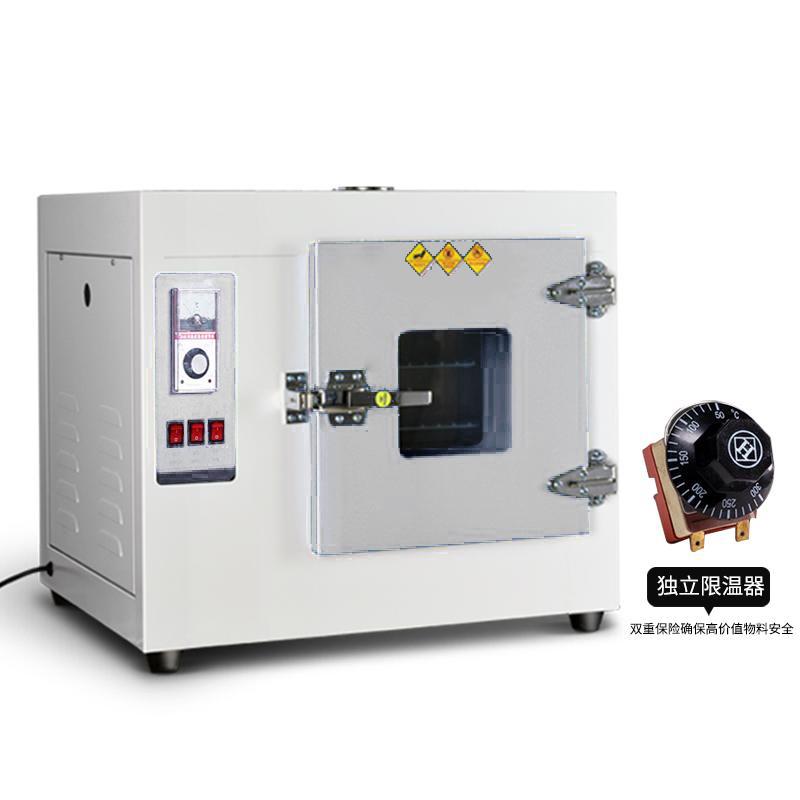

The Kenton 101-2 + with independent temperature limiter is a pointer electric air blowing dryer suitable for drying, baking, heat treatment and heating operations in industrial and mining enterprises, laboratories and R & D institutions. The product uses a hot air circulation system with a Temperature range of RT + 5~ 300 ° C, Temperature Accuracy of +/- 1 ° C, Volatility of +/- 1%, Inner chamber dimensions of 550 × 550 × 450mm, and the liner is made of galvanized steel.
Features
1. The thermostat can be selected from two types of pointer or microcomputer intelligent PID digital display
2. The shell is sprayed with metallic paint, and the overall design is beautiful and generous
3.The hot air circulation system consists of low noise fans and air ducts
4.The liner can be selected from mirror stainless steel or galvanized steel plate
5. The height and quantity of shelves in the studio can be adjusted, which is convenient for accessing samples of different specifications
6. The box door is equipped with double-decked tempered Glass observation window, which can clearly observe the contents of the box
Principle
The drying oven generates heat through electric heating elements, combined with a hot air circulation system composed of a low-noise fan and air duct, so that the temperature inside the studio is evenly distributed. The pointer thermostat is used to set and monitor the temperature, ensuring that the temperature is controlled within the range of RT + 5~ 300 ° C, Accuracy is +/- 1 ° C, and the fluctuation is +/- 1%.
Applications
Industrial and mining enterprises, laboratories, R & D institutions, basic laboratories, workshops
Steps
1. Connect the power supply and ensure that the voltage matches (220V).
2. Adjust shelf height and quantity to fit sample specifications
3. Set the required temperature through the pointer thermostat
4. Start the device, observe that the temperature stabilizes and put in the sample.
5. Monitor the contents of the box through the observation window during use
6. Turn off the power after the operation is completed and take out the sample.
Notice
- It is not recommended to use it uninterrupted for a long time
Samples with high temperature uniformity and high water content are not recommended
- For more expensive samples, it is recommended to install an independent temperature limiting controller
- Not suitable for volatile, flammable, explosive and other items to avoid explosion
