Overview

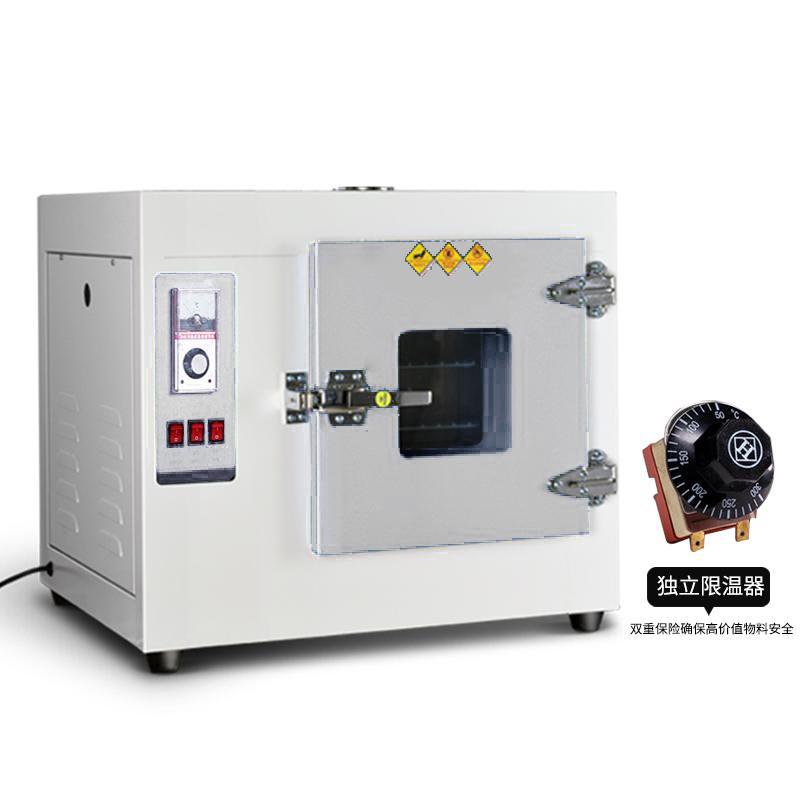

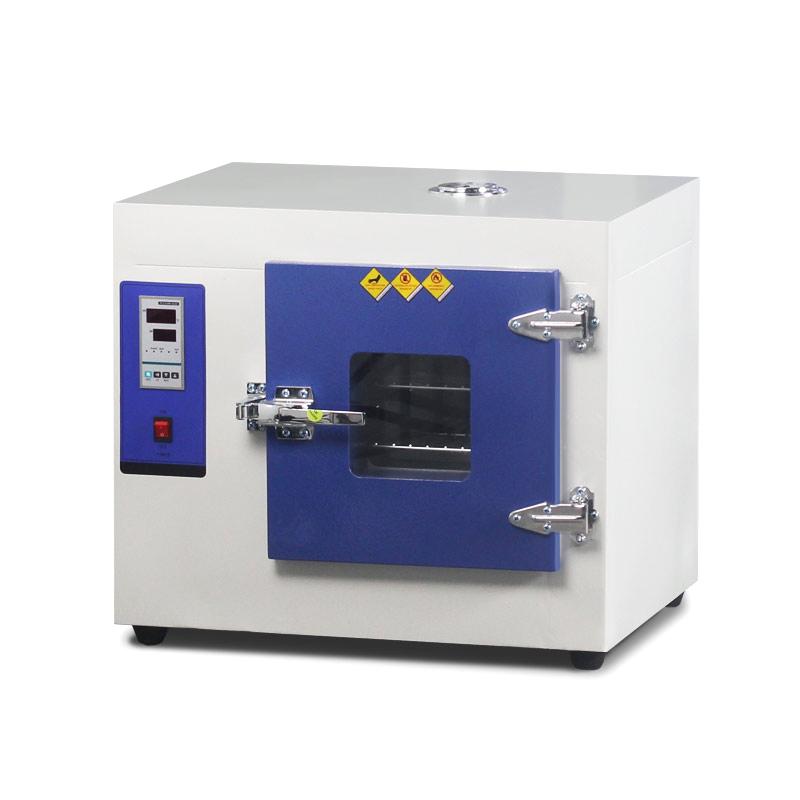

The Kenton 101-4 + independent thermostat pointer electric air blowing dryer is a drying equipment for industrial and mining enterprises, laboratories and R & D institutions, providing drying, baking, heat treatment and heating functions. This model has Inner chamber dimensions of 1000 × 800 × 800mm, Temperature range RT + 5~ 300 ℃, Temperature Accuracy +/- 1 ℃, Volatility +/- 2%, Pointer thermostat and hot air circulation system.
Features
1. The thermostat can be selected from two types of pointer or microcomputer intelligent PID digital display
2. The shell is sprayed with metallic paint, and the overall design is beautiful and generous
3.The hot air circulation system consists of low noise fans and air ducts
4.The liner can be made of mirror stainless steel or galvanized steel

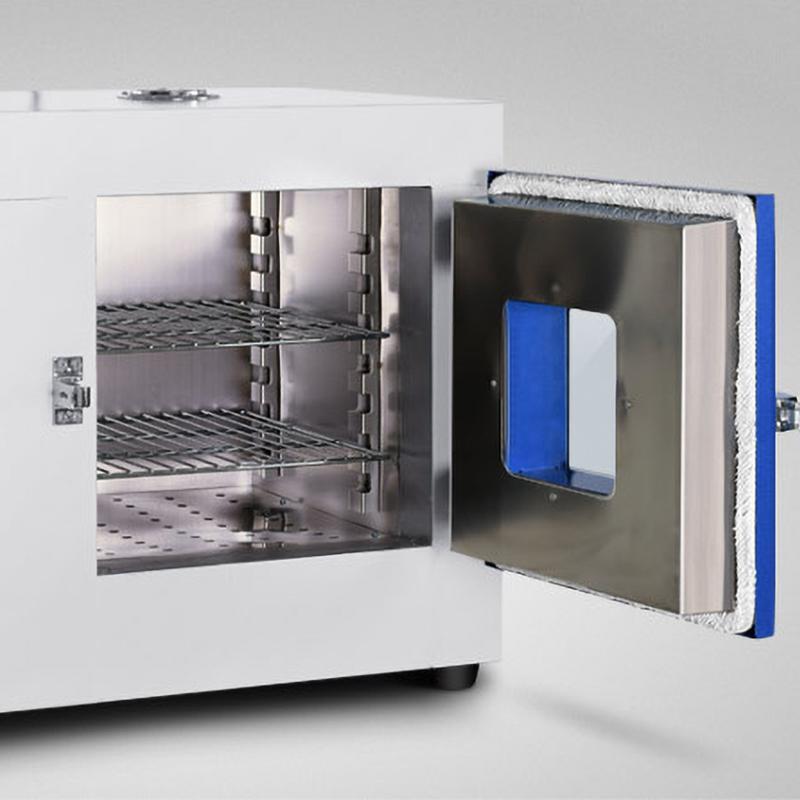

5. The height and quantity of shelves in the studio can be adjusted, which is convenient for accessing samples of different specifications
6. The box door is equipped with double-decked tempered Glass observation window, which can clearly observe the contents of the box
7. Optional accessories include intelligent digital temperature controller with timing function and independent temperature controller
Principle
The drying oven generates heat through an electric heating system, and a hot air circulation system composed of a low-noise fan and air duct makes the hot air circulate evenly inside the studio to realize drying, baking and heat treatment functions. The pointer thermostat is used to set and monitor the temperature to ensure that the temperature is controlled within the set range.
Applications
Industrial and mining enterprises, laboratories, R & D institutions, basic laboratories, workshops
Steps
1. Connect the power supply and check whether the voltage meets the requirements (380V).
2. Adjust shelf height and quantity as needed
3. Set the required temperature through the pointer thermostat
4. Place the sample in the studio
5. Close the door and start the device
6. Monitor sample status through the observation window
7. Turn off the power after use and take out the sample.
Notice
• It is not recommended to use it uninterrupted for a long time
Samples with high temperature uniformity and high water content are not recommended
• For more expensive samples, it is recommended to install an independent temperature limiting controller
• Not suitable for volatile, flammable, explosive and other items to avoid explosion
• Before use, please confirm that the Power supply voltage is consistent with the equipment requirements
• Pay attention to high temperature during operation to avoid burns
