Overview

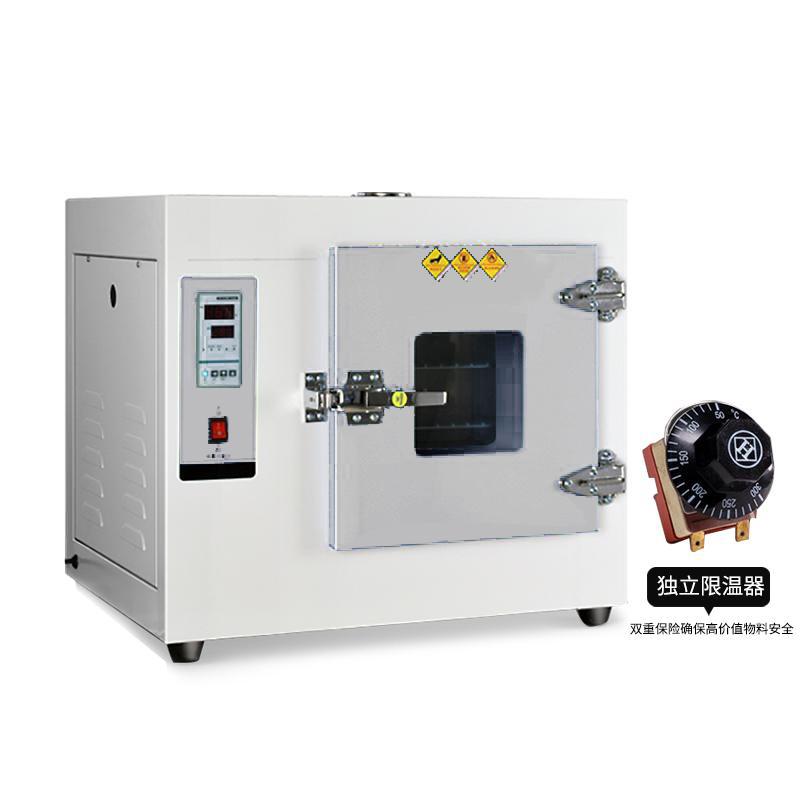

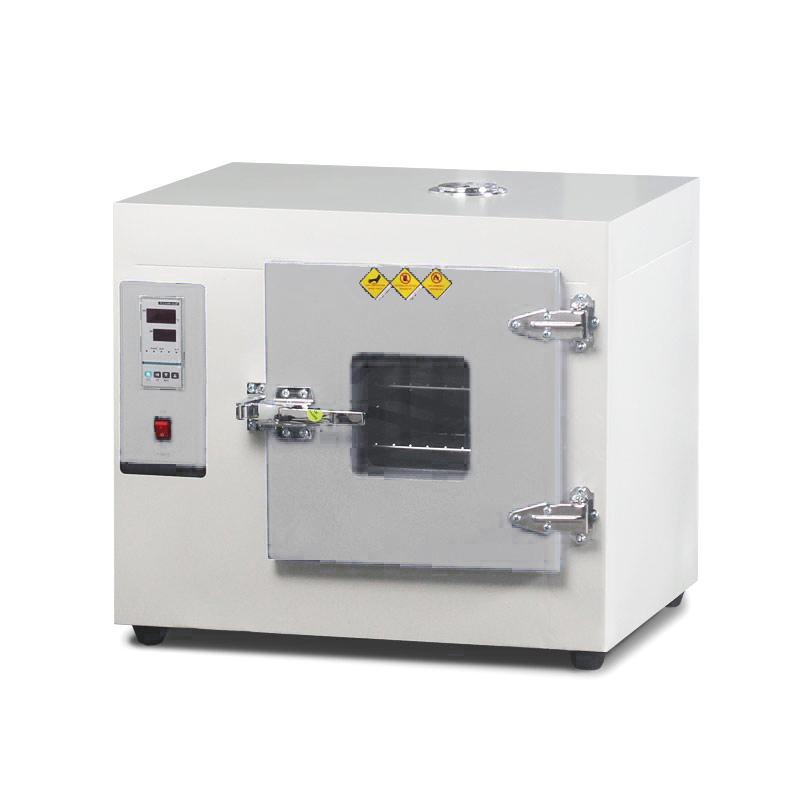

The Kenton 101-2A + independent temperature limiter digital electric air blowing dryer is a drying equipment designed for industrial and mining enterprises, laboratories and R & D institutions, suitable for routine tests such as drying, baking, heat treatment and heating. The device uses a microcomputer intelligent PID digital display thermostat. Temperature range is RT + 5~ 300 ℃, temperature Accuracy +/- 1 ℃, fluctuation +/- 1%, Inner chamber dimensions 550 × 550 × 450mm, volume 136L.
Features
1. The thermostat can be selected from two types of pointer or microcomputer intelligent PID digital display
2. The shell is sprayed with metallic paint, and the overall design is beautiful and generous
3.The hot air circulation system consists of low noise fans and air ducts
4.The liner can be selected from mirror stainless steel or galvanized steel plate
5. The height and number of shelves in the studio can be adjusted, which is convenient for accessing samples of different specifications
6. The box door is equipped with double-decked tempered Glass observation window, which can clearly observe the contents of the box
7. Optional accessories include intelligent digital temperature controller with timing function and independent temperature controller
Principle
The drying oven generates heat through an electric heating system, combined with a hot air circulation system (composed of a low-noise fan and an air duct) to distribute the hot air evenly into the working room for drying, baking or heat treatment. The microcomputer intelligent PID thermostat precisely adjusts and maintains the set temperature to ensure temperature Stability and uniformity.
Applications
Industrial and mining enterprises, laboratories, R & D institutions, workshops
Steps
1. Connect the power supply and ensure that the voltage matches (220V or 380V, depending on the model)
2. Open the box door and place the sample on the adjustable shelf
3. Close the box door and set the required temperature through the thermostat (RT + 5~ 300 ° C)
4. Start the equipment and the hot air circulation system starts to work
5. Monitor sample status through observation window and adjust shelf position if necessary
6. After use, turn off the power and remove the sample
Notice
• It is not recommended to use it uninterrupted for a long time
Samples with high temperature uniformity and high water content are not recommended
• For more expensive samples, it is recommended to install an independent temperature limiting controller
• Not suitable for volatile, flammable, explosive and other items to avoid explosion
• Check whether the Power supply voltage matches the equipment requirements before use
• Regularly clean and maintain equipment to ensure performance
