Overview

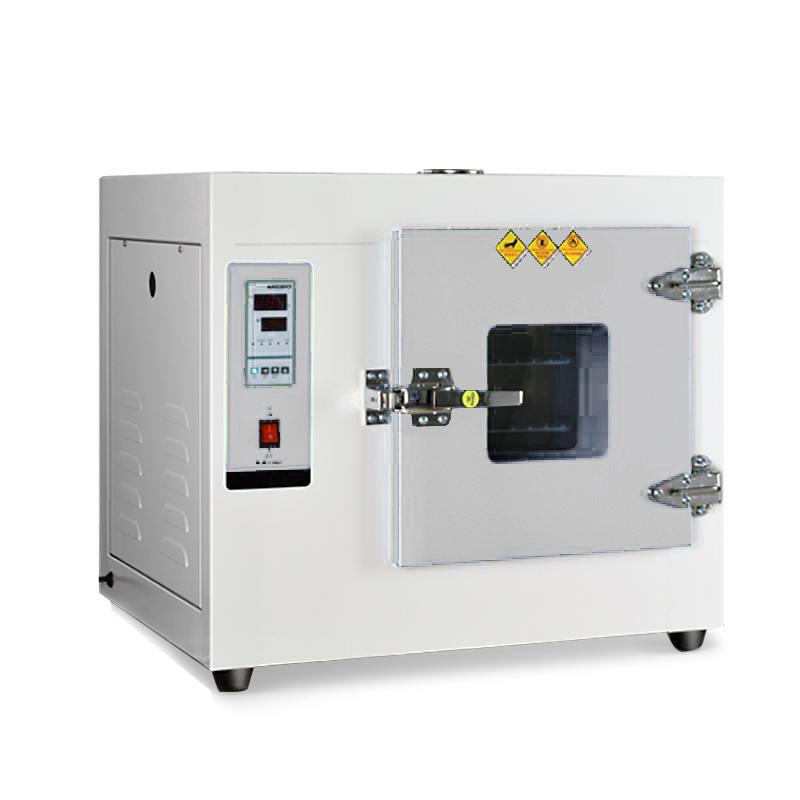

Kenton 101-4A + independent temperature limiter digital display electric air blowing dryer is a drying equipment specially designed for industrial and mining enterprises, basic laboratories and workshops. It adopts a microcomputer intelligent PID digital display thermostat. Temperature range is RT + 5~ 300 ℃, Accuracy +/- 1 ℃, fluctuation +/- 2%. It is suitable for routine tests such as drying, baking, heat treatment and heating, but it is not recommended for long-term uninterrupted use.
Features
1. The thermostat can be selected from two types of pointer or microcomputer intelligent PID digital display
2. The shell is sprayed with metallic paint, and the overall design is beautiful and generous
3.The hot air circulation system consists of low noise fans and air ducts
4.The liner can be selected from mirror stainless steel or galvanized steel plate
5. The height and quantity of shelves in the studio can be adjusted, which is convenient for accessing samples of different specifications
6. The box door is equipped with double-decked tempered Glass observation window, which can clearly observe the contents of the box
7. Optional accessories include intelligent digital temperature controller with timing function and independent temperature controller
Principle
The drying oven is heated by electric heating elements, combined with the hot air circulation system (including low-noise fans and air ducts) to achieve uniform temperature distribution, and the microcomputer intelligent PID thermostat precisely adjusts the temperature to ensure that the temperature in the box is stable within the set range.
Applications
Industrial and mining enterprises, laboratories, R & D institutions, basic laboratories, workshops
Steps
1. Connect the power supply to ensure that the voltage meets the specifications (e.g. 380V)
2. Adjust shelf height and quantity as needed
3. Set the thermostat to the desired temperature (RT + 5~ 300 ° C)
4. Start the device and monitor the contents of the box through the observation window
5. Turn off the power in time after use
Notice
• It is not recommended to use it uninterrupted for a long time
Samples with high temperature uniformity and high water content are not recommended

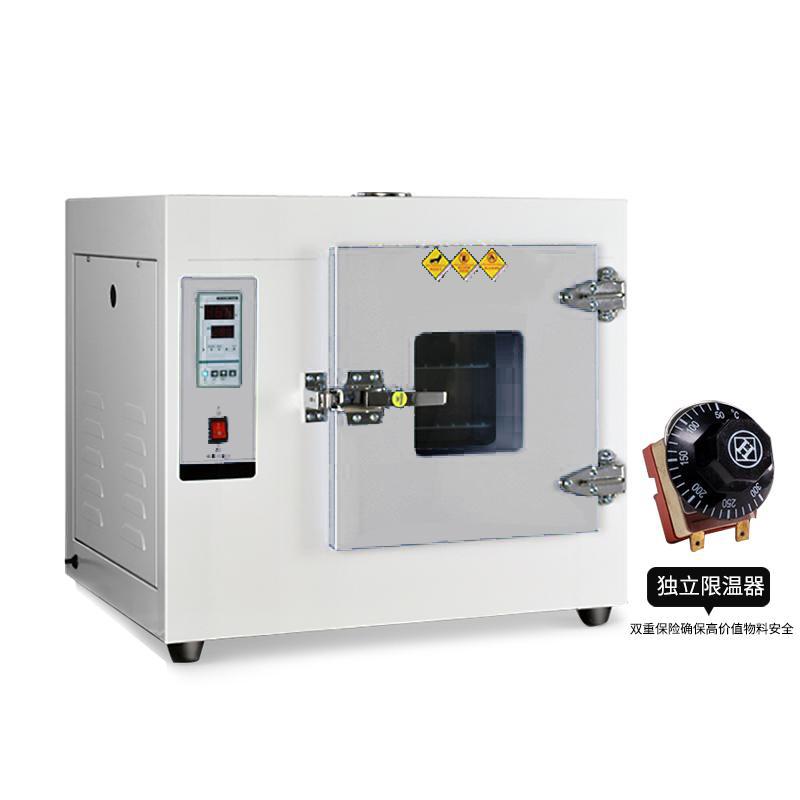

• For more expensive samples, it is recommended to install an independent temperature limiting controller
• Not suitable for volatile, flammable, explosive and other items to avoid explosion
