Overview

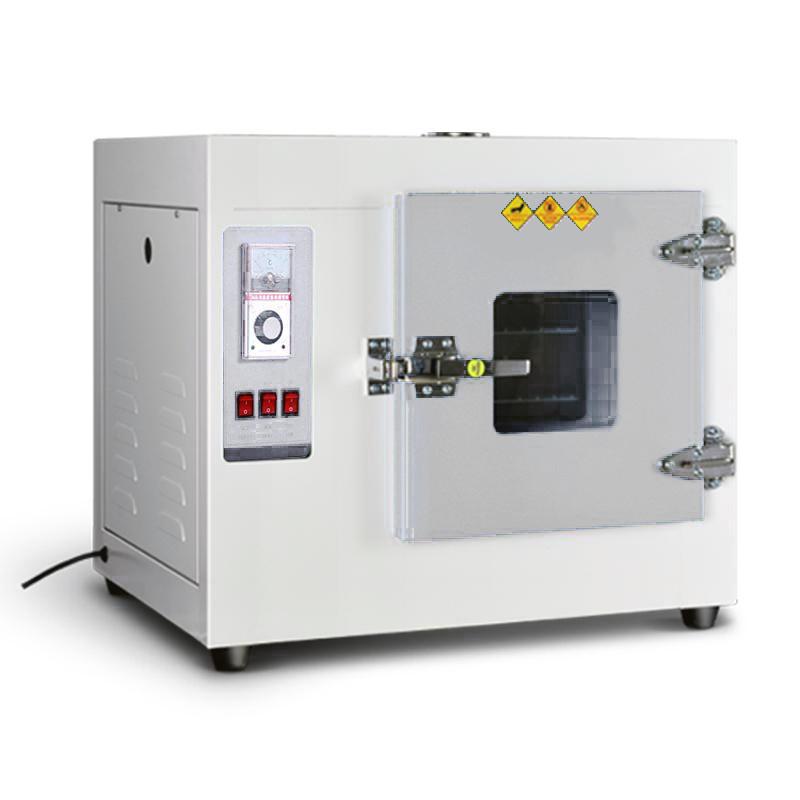

The Kenton 101-2S + Independent Temperature Limiter is a pointer electric air blowing dryer suitable for drying, baking, heat treatment and heating in industrial and mining enterprises, laboratories and R & D institutions. The product features a stainless steel liner with a hot air circulation system. Temperature range is RT + 5~ 300 ° C, Temperature Accuracy +/- 1 ° C, Volatility +/- 1%.
Features
1. Thermostat optional pointer or microcomputer intelligent PID digital display
2. The shell is sprayed with metallic paint, which is beautiful and elegant
3.The hot air circulation system consists of low noise fans and air ducts
4.Mirror stainless steel or galvanized steel liner

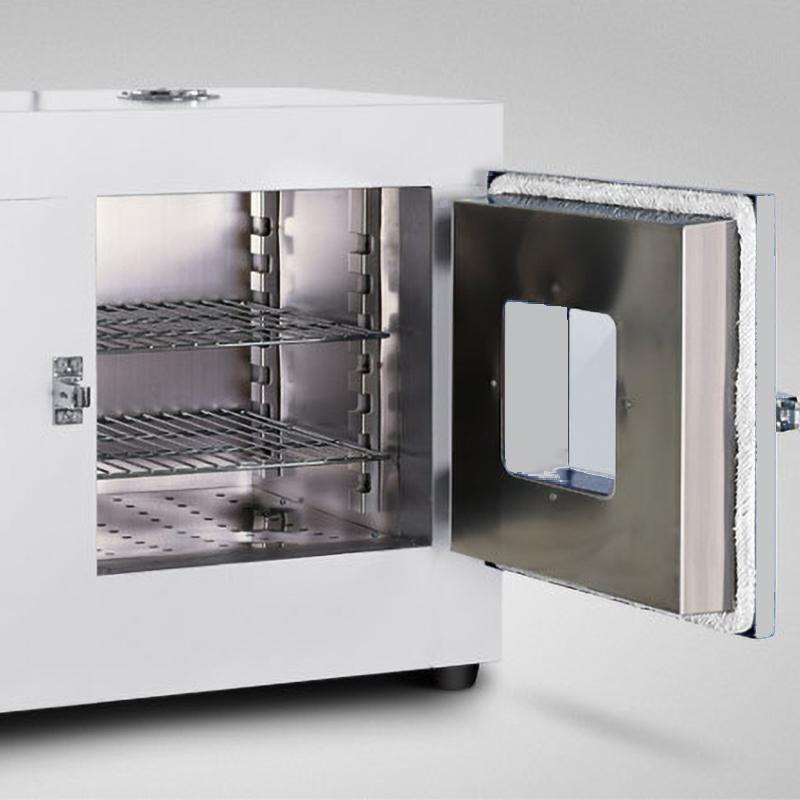

5. The height and number of shelves in the studio can be adjusted, which is convenient for accessing samples of different specifications
6. The box door is equipped with a double-decked tempered Glass observation window to clearly observe the contents of the box
7. Optional accessories include intelligent digital temperature controller with timing function and independent temperature controller
Principle
The drying oven is heated by an electric heating element, combined with a hot air circulation system (including a low-noise fan and air duct) to achieve uniform temperature distribution, and the pointer thermostat adjusts and maintains the set temperature to ensure stable temperature in the box.
Applications
Industrial and mining enterprises, laboratories, R & D institutions, basic laboratories, workshops
Steps
1. Connect the power supply and ensure that the voltage matches (220V or 380V).
2. Open the box door, place the sample on the shelf, and adjust the shelf height and quantity
3. Close the box door and set the required temperature through the pointer thermostat
4. Start the equipment, observe temperature changes, and ensure stable operation
5. Turn off the power after use and take out the sample.
Notice
• It is not recommended to use it uninterrupted for a long time
Samples with high temperature uniformity and high water content are not recommended

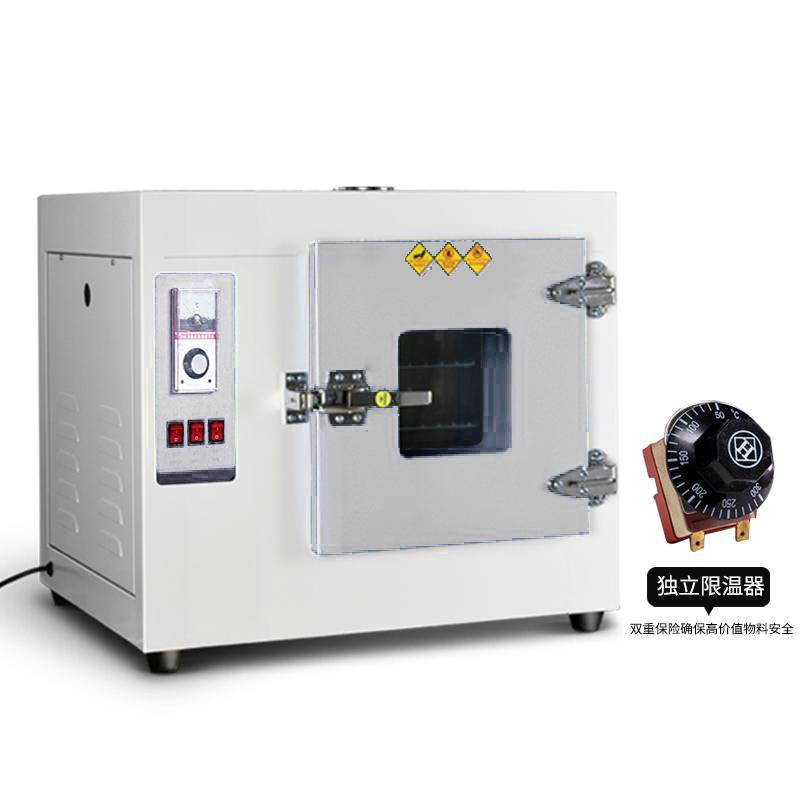

• For more expensive samples, it is recommended to install an independent temperature limiting controller
• Not suitable for volatile, flammable, explosive and other items to avoid explosion
