Overview

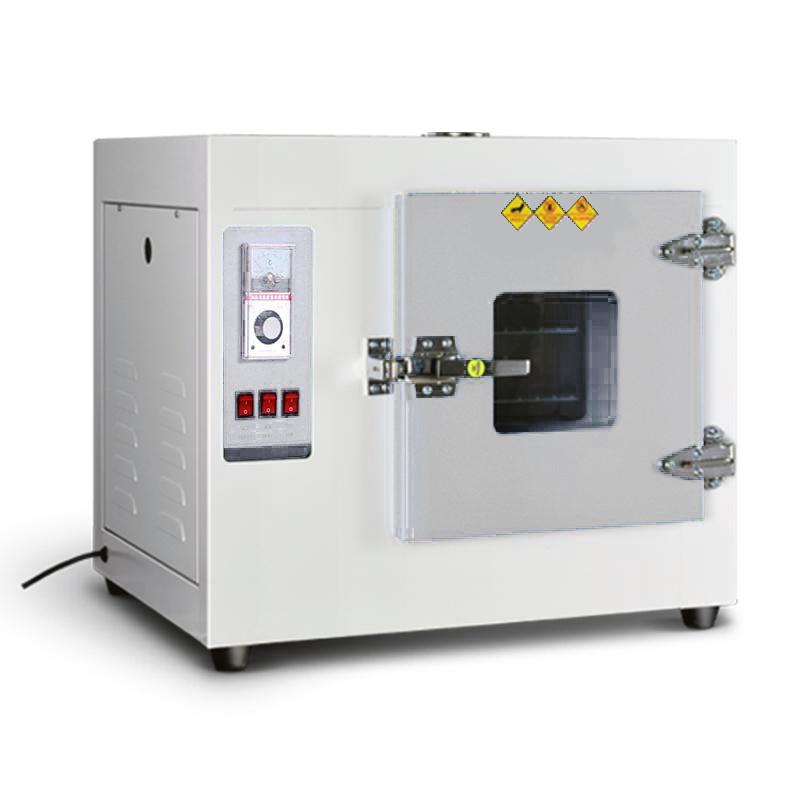

The Kenton 101-4S + Independent Temperature Limiter is a pointer electric air blowing dryer suitable for drying, baking, heat treatment and heating operations in industrial and mining enterprises, laboratories and R & D institutions. The product uses metallic paint spray shell, liner is made of stainless steel, Temperature range is RT + 5~ 300 ℃, Temperature Accuracy +/- 1 ℃, Volatility +/- 2%, Volume 640L, Adjustable height and quantity of shelves in the studio for easy access to samples of different specifications.
Features
1. Thermostat optional pointer or microcomputer intelligent PID digital display
2. The shell is sprayed with metallic paint, and the overall design is beautiful and generous
3.The hot air circulation system consists of low noise fans and air ducts
4.Mirror stainless steel or galvanized steel liner
5. The height and quantity of shelves in the studio can be adjusted, which is convenient for accessing samples of different specifications
6. The box door is equipped with double-decked tempered Glass observation window, which can clearly observe the contents of the box

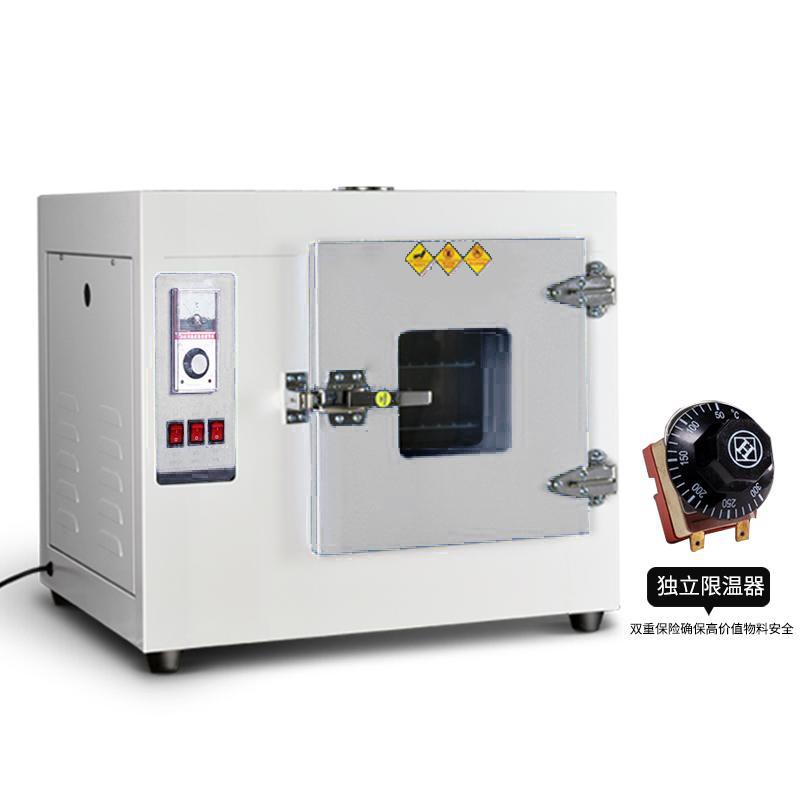

7. Optional accessories include intelligent digital temperature controller with timing function and independent temperature controller
Principle
The drying oven is heated by an electric heating element, combined with a low-noise fan and a hot air circulation system composed of air ducts to achieve uniform heating and temperature control. A pointer thermostat or optional microcomputer intelligent PID thermostat is used to precisely adjust and maintain the set temperature, ensuring that the temperature in the box is stable within the required range.
Applications
Industrial and mining enterprises, laboratories, R & D institutions, basic laboratories, workshops
Steps
1. Connect the power supply to ensure that the voltage meets the requirements (380V)
2. Open the box door and place the sample on the adjustable shelf
3. Close the box door and set the required temperature through the pointer thermostat
4. Start the device and monitor temperature changes
5. Turn off the power after use and take out the sample.
Notice
• It is not recommended to use it uninterrupted for a long time
Samples with high temperature uniformity and high water content are not recommended
• For more expensive samples, it is recommended to install an independent temperature limiting controller
• Not suitable for volatile, flammable, explosive and other items to avoid explosion
