Overview

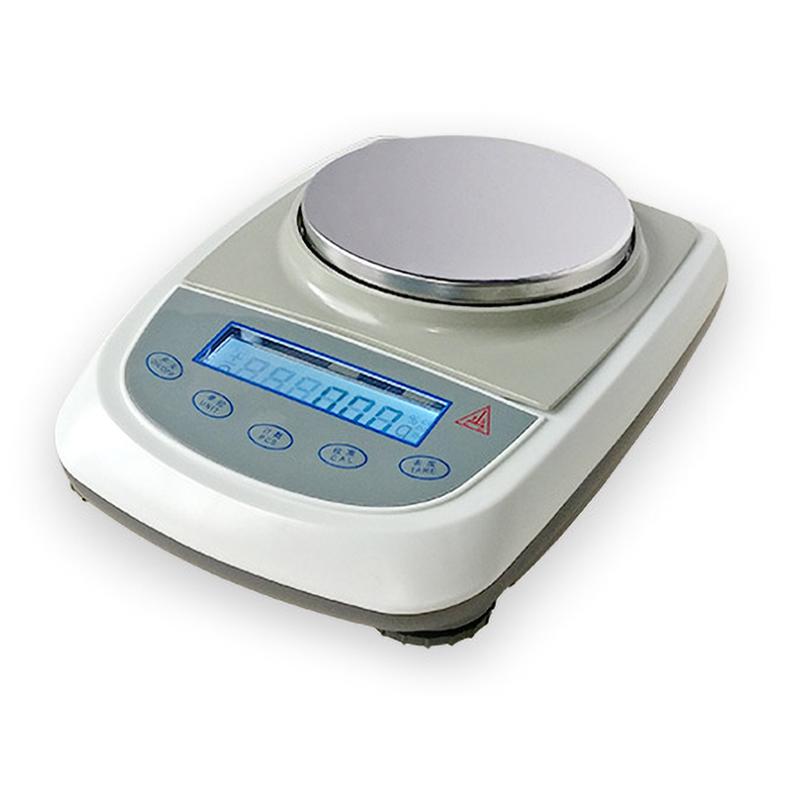

TD2002A Electronic Analytical Balance is a one-percent electronic Analytical Balance of the Tianma brand, which belongs to the TD series of products. The Balance has a range of 200g, an accuracy of 0.01g, and has counting and international unit conversion functions. The pan is a round design, and the shell is made of plastic.
Features
1. AC and DC dual-use function, which can be powered by dry batteries
2. International unit conversion function
3. Counting function (point function), can be used as Counting Balance
4, with peeling, weighing Automatic calibration, automatic clearing, zero automatic tracking and fault display and other functions
Principle
The Electronic Analytical Balance detects the weight signal through the Sensor, and displays the weighing result after processing by the internal processor. Automatic calibration, automatic clearing and automatic zero tracking functions ensure the accuracy of weighing.
Applications
Laboratory, industrial weighing, mass testing, counting and weighing
Standards
Specific standards not mentioned in the product literature
Steps
1. Balance on a smooth table
2. Connect the power supply or install the dry battery
3. Boot warm-up
4. Externally calibrated (using 200g test weight)
5. Place the sample for weighing
6. Select the counting or unit conversion function as required
Notice
• Ambient Temperature should be kept within 5~ 40 ℃
• Environmental humidity should be kept at 50% RH~ 60% RH
• External calibrating required before use
Make sure the pan is clean and pollution-free
• Avoid use under the influence of vibration or airflow
• Power Adapter input is~ 220V +/- 10% 50HZ, output is DC6V-300mA
