Overview

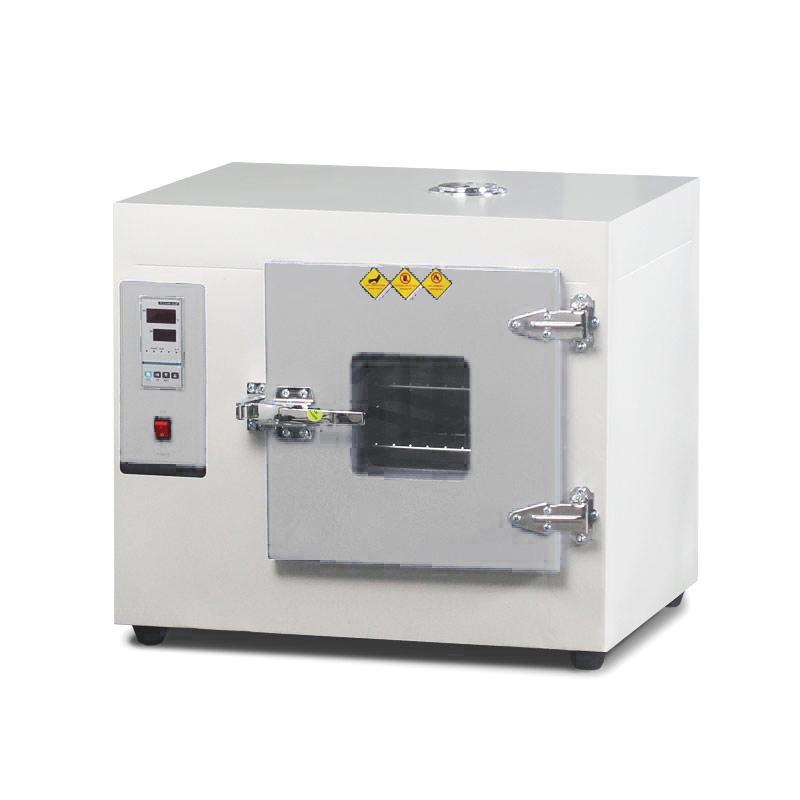

Kenton 101-0AS + independent temperature limiter is a digital display electric air blowing dryer, suitable for routine tests such as drying, baking, heat treatment in industrial and mining enterprises, basic laboratories and workshops. The device adopts a microcomputer intelligent PID digital display thermostat, Temperature range RT + 5~ 300 ℃, Temperature Accuracy +/- 1 ℃, Flexibility +/- 1%, Inner chamber dimensions 350 × 350 × 350mm, liner is made of stainless steel.
Features
1. The thermostat uses a microcomputer intelligent PID digital display for accurate temperature control.
2. The shell is painted with metallic paint, and the overall design is beautiful and elegant.
3. The hot air circulation system consists of low-noise fans and air ducts to ensure uniform temperature.
4. The liner is made of mirror stainless steel, which is corrosion resistant and easy to clean.
5. The height and quantity of shelves in the studio can be adjusted to facilitate access to samples of different specifications.
6. The box door is equipped with a double-decked tempered Glass observation window, which can clearly observe the contents of the box.
7. Optional accessories include intelligent digital temperature controller with timing function and independent temperature controller.
Principle
The drying oven is heated by an electric heating element, combined with a hot air circulation system composed of a low-noise fan and an air duct, so that the hot air flows evenly inside the studio to realize drying, baking or heat treatment functions. The microcomputer intelligent PID thermostat precisely adjusts the temperature to ensure stable temperature control.
Applications
Industrial and mining enterprises, laboratories, R & D institutions, workshops
Steps
1. Place the device in a smooth and ventilated place and connect it to the power supply.
2. Open the box door, adjust the shelf height and quantity as needed, and place the sample.
3. Close the door and set the required temperature and time (e.g. using the timing function).
4. Start the device and observe the temperature display to ensure normal operation.
5. After use, turn off the power and take out the sample after chilling down.
Notice
• It is not recommended to use it uninterrupted for a long time.
Samples with high temperature uniformity and high water content are not recommended.

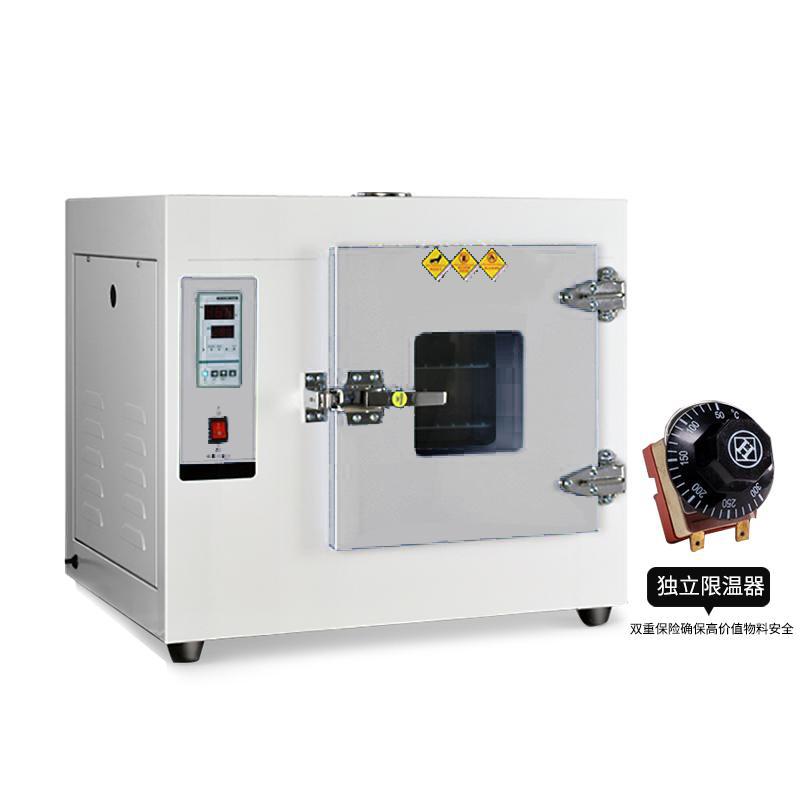

• For more expensive samples, it is recommended to install an independent temperature limiting controller.
• Not suitable for volatile, flammable, explosive and other items to avoid explosion.
