Overview

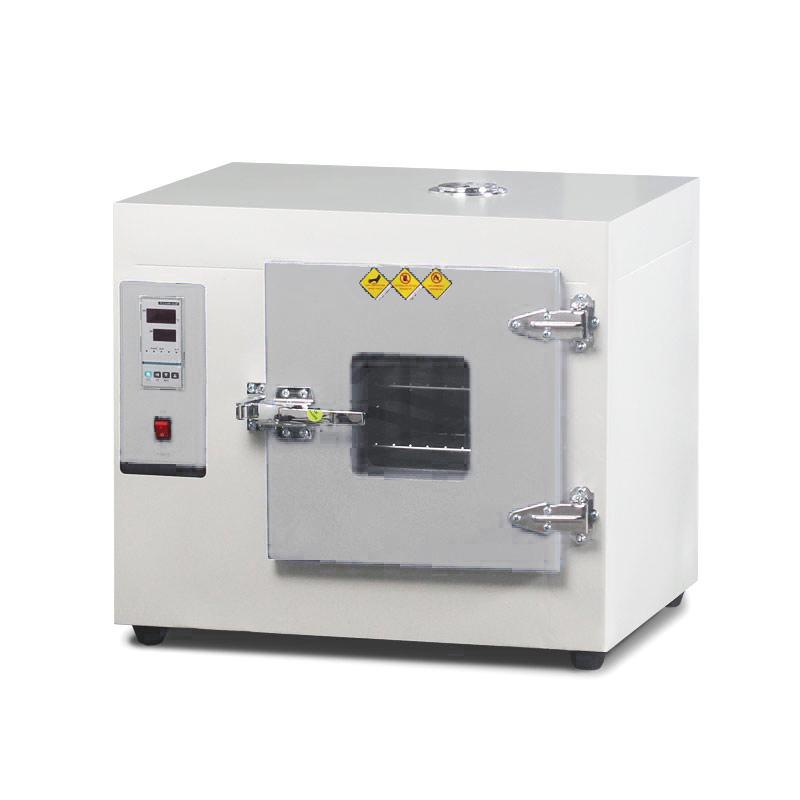

Kenton 101-4AS + independent thermostat digital electric air blowing dryer is a drying equipment suitable for industrial and mining enterprises, laboratories and R & D institutions, with microcomputer intelligent PID digital display thermostat, Temperature range RT + 5~ 300 ℃, Temperature Accuracy +/- 1 ℃, Flexibility +/- 2%. The device adopts hot air circulation system, Inner chamber dimensions 1000 × 800 × 800mm, volume 640L, liner is stainless steel, shell is sprayed with metallic paint, beautiful and elegant.
Features
1. The thermostat can be selected from two types of pointer or microcomputer intelligent PID digital display
2. The shell is sprayed with metallic paint, and the overall design is beautiful and generous
3.The hot air circulation system consists of low noise fans and air ducts
4. The liner is divided into two types: mirror stainless steel and galvanized steel

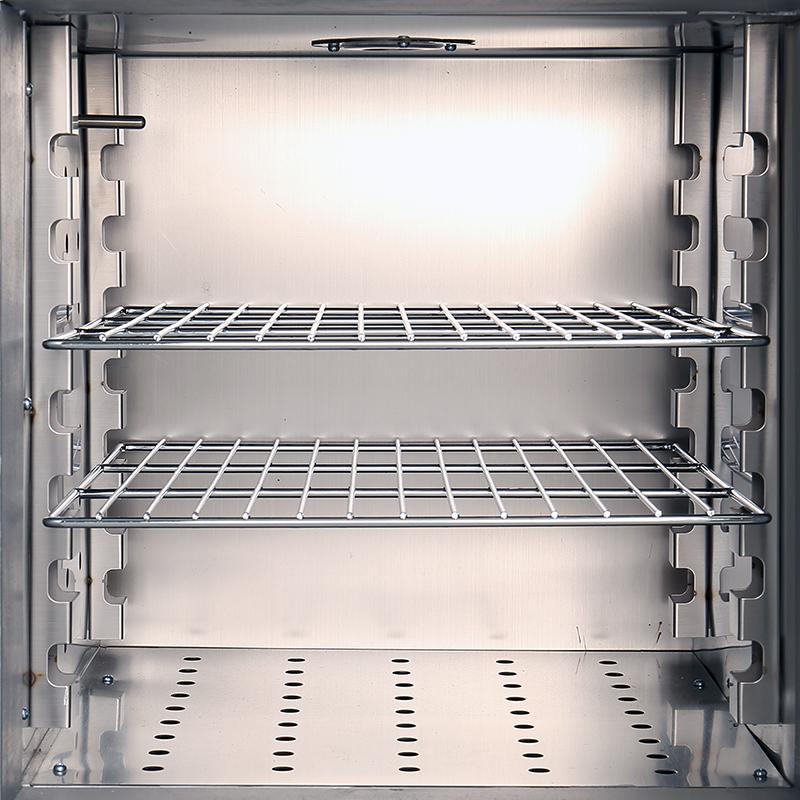

5. The height and quantity of shelves in the studio can be adjusted, which is convenient for accessing samples of different specifications
6. The box door is equipped with double-decked tempered Glass observation window, which can clearly observe the contents of the box
7. Optional accessories include intelligent digital temperature controller with timing function and independent temperature controller
Principle
The drying oven generates heat through electric heating elements, and the hot air circulation system composed of low-noise fans and air ducts makes the hot air circulate evenly inside the studio to realize the functions of drying, baking and heat treatment. The microcomputer intelligent PID thermostat precisely controls the temperature to ensure that the temperature is stable within the set range.
Applications
Industrial and mining enterprises, laboratories, R & D institutions, workshops
Steps
1. Turn on the power supply and check whether the voltage meets the requirements (380V).
2. Place the sample on a shelf with adjustable height
3. Set the required temperature through the microcomputer intelligent PID digital display thermostat
4. Start the equipment and the hot air circulation system starts to work
5. Monitor the status of the contents of the box through the double-decked tempered Glass observation window
6. Turn off the power after use
Notice
• Suitable for routine testing in industrial and mining enterprises, basic laboratories and workshops, and uninterrupted use for a long time is not recommended
Samples with high temperature uniformity and high water content are not recommended

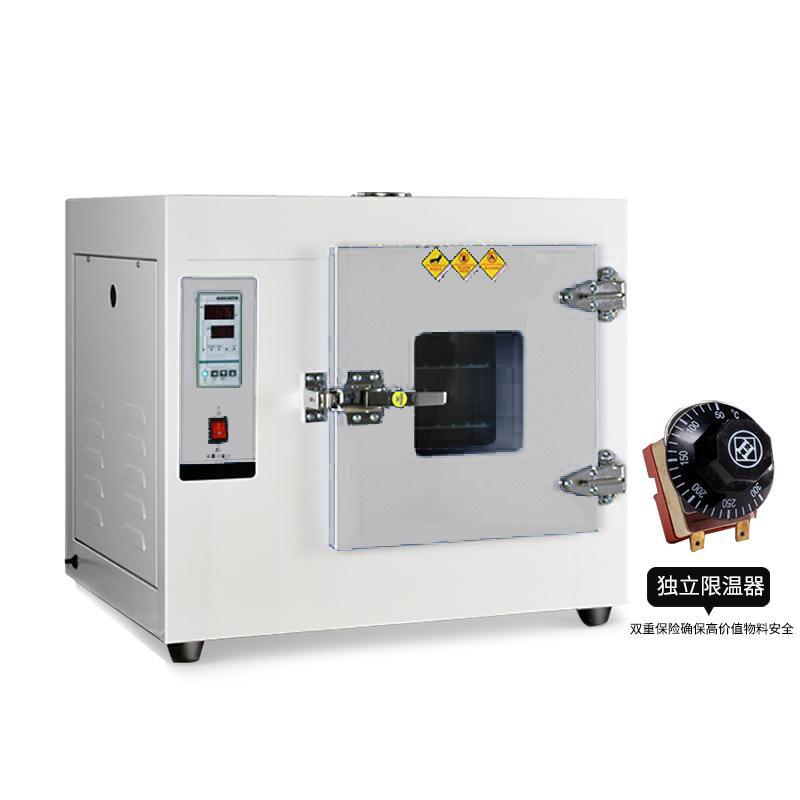

• For more expensive samples, it is recommended to install an independent temperature limiting controller
• Not suitable for volatile, flammable, explosive and other items to avoid explosion
