Overview

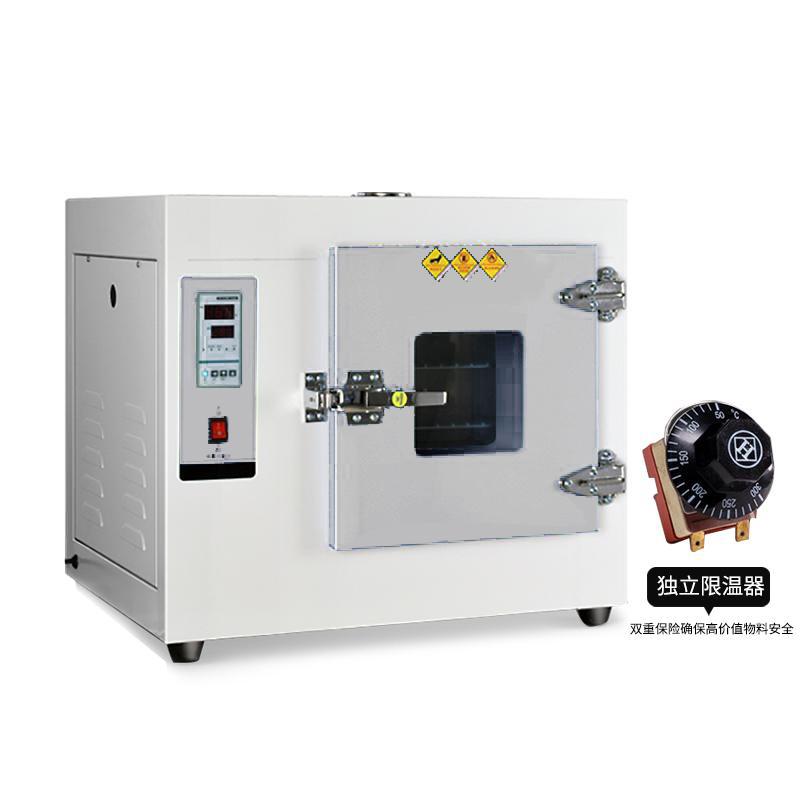

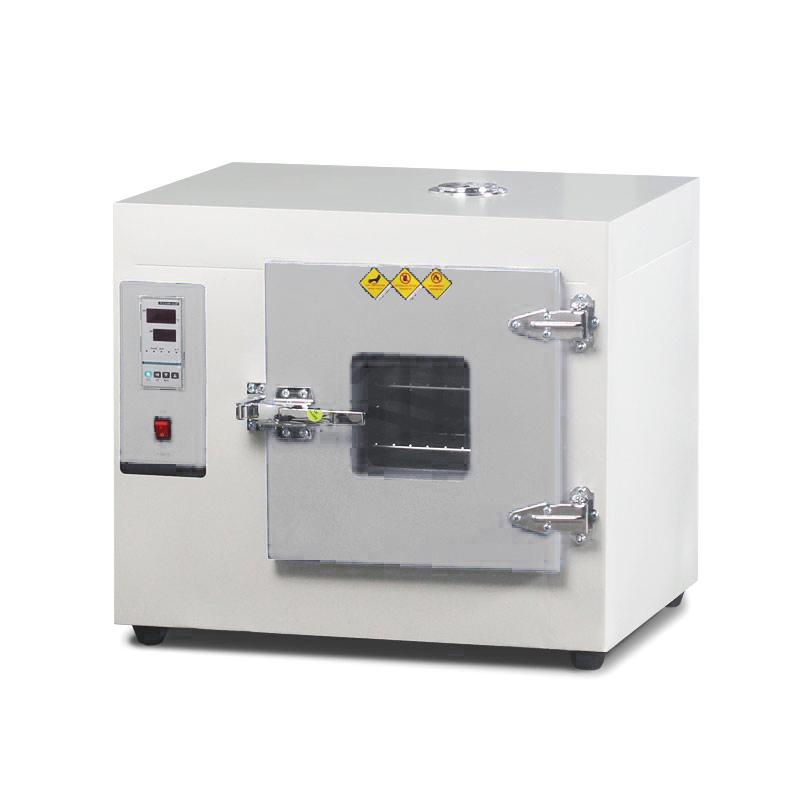

Kenton 101-5AS + Independent Temperature Limiter is a digital display electric air blowing dryer, suitable for drying, baking, heat treatment and heating operations in industrial and mining enterprises, laboratory R & D institutions, etc. The device uses a microcomputer intelligent PID digital display thermostat, Temperature range is RT + 5~ 300 ℃, Temperature Accuracy is +/- 1 ℃, Volatility is +/- 2%, and it has a beautiful metallic paint shell and hot air circulation system.
Features
1. The thermostat can be selected from two types of pointer or microcomputer intelligent PID digital display
2. The shell is sprayed with metallic paint, and the overall design is beautiful and generous
3.The hot air circulation system consists of low noise fans and air ducts
4.The liner can be selected from mirror stainless steel or galvanized steel plate
5. The height and quantity of shelves in the studio can be adjusted, which is convenient for accessing samples of different specifications
6. The box door is equipped with double-decked tempered Glass observation window, which can clearly observe the contents of the box
7. Optional accessories include intelligent digital temperature controller with timing function and independent temperature controller
Principle
The drying oven generates heat through an electric heating system, combined with a hot air circulation system (consisting of a low-noise fan and an air duct) to achieve a uniform temperature distribution in the studio. The microcomputer intelligent PID digital display thermostat precisely controls the temperature to ensure that the temperature is stable within the set range.
Applications
Industrial and mining enterprises, laboratories, R & D institutions, basic laboratories, workshops Routine testing
Steps
Connect the power supply and ensure voltage matching (380V for 101-5AS models)
2. Adjust shelf height and quantity as needed
3. Set the required temperature through the microcomputer intelligent PID digital display thermostat
4. Start the device, observe that the temperature stabilizes and put in the sample.
5. Turn off the power after use
Notice
• It is not recommended to use it uninterrupted for a long time
Samples with high temperature uniformity and high water content are not recommended
• For more expensive samples, it is recommended to install an independent temperature limiting controller
• Not suitable for volatile, flammable, explosive and other items to avoid explosion
