Overview

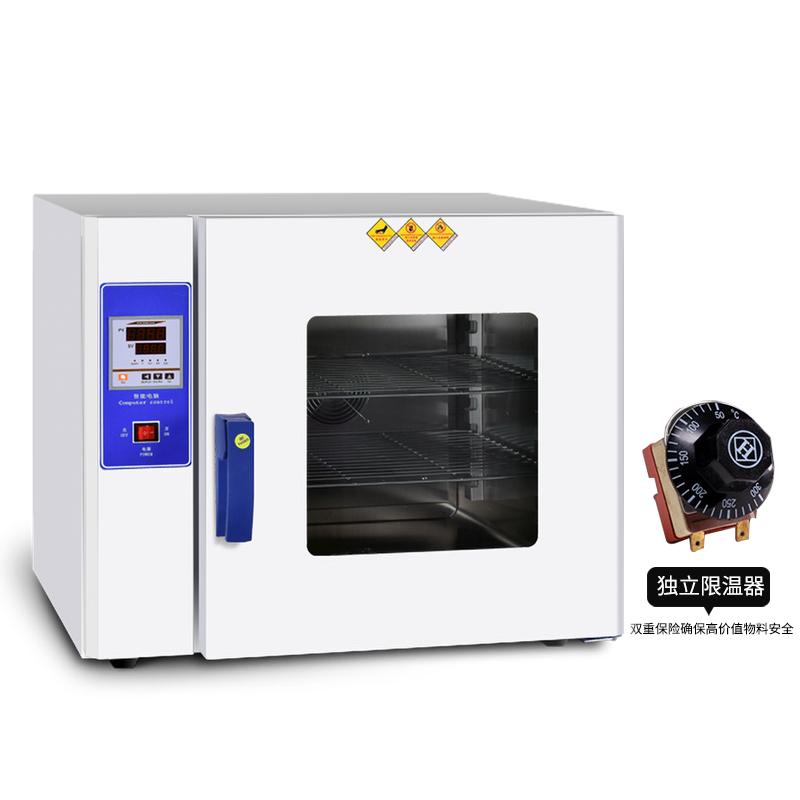

Kenton KH-45A + independent temperature limiter is a digital display electric air blowing dryer, suitable for routine experiments and tests, with high cost performance. The equipment adopts microcomputer intelligent PID control technology and is equipped with an external hot air circulation system to ensure stable indoor temperature.
Features
1. Using microcomputer intelligent PID control technology, the system has temperature control, timing, over-temperature alarm functions;
2. The external hot air circulation system is composed of low-noise fans and air ducts, and the reasonable air duct and circulation system make the temperature in the working room stable;
3. Cold rolled steel plate with good electrostatic spray treatment, the overall design is beautiful and novel, and has a large viewing window;
4. The liner is divided into two types of mirror stainless steel and galvanized steel plate, and the semi-arc four corners are easy to clean;
5. The shelf spacing and shelf number in the working room can be adjusted to facilitate access to samples of different specifications;
6. Using high temperature silicone as the sealing edge of the door, high temperature heating tube as the heating element to ensure safety and longer service life;
7. Ergonomic fastening handle, easy to operate, and ensure sealing.
Principle
The drying oven precisely adjusts the temperature through microcomputer intelligent PID control technology. The external hot air circulation system is composed of a low-noise fan and an air duct to ensure uniform circulation of hot air and maintain stable temperature in the working room. The high-temperature heating tube is used as a heating element and cooperates with the high-temperature silicone sealing door edge to achieve an efficient and safe heating process.
Applications
Industrial and mining enterprises, biological, agricultural, scientific research and other departments for drying, heat treatment, heating
Steps
1. Place the device in a smooth and ventilated place and connect it to the power supply.
2. Turn on the power switch and set the required temperature and time parameters.
3. Put in the sample to ensure that the sample does not exceed the capacity limit;
4. Close the box door and start the equipment to start heating.
5. After the heating is completed, turn off the power and remove the sample.
Notice
• Flammable, explosive and volatile items are strictly prohibited from being heated and dried in the box;
• For heating high-value materials, it is recommended to install an independent temperature limiter and set the maximum temperature limit;
• Not suitable for volatile, flammable, explosive and other items to avoid explosion;
• It is recommended to use it for routine experiments and tests, and it is recommended to install an independent temperature limiting controller for more expensive samples;
• Ensure that the equipment is used in a well-ventilated environment to avoid overheating.
