Overview

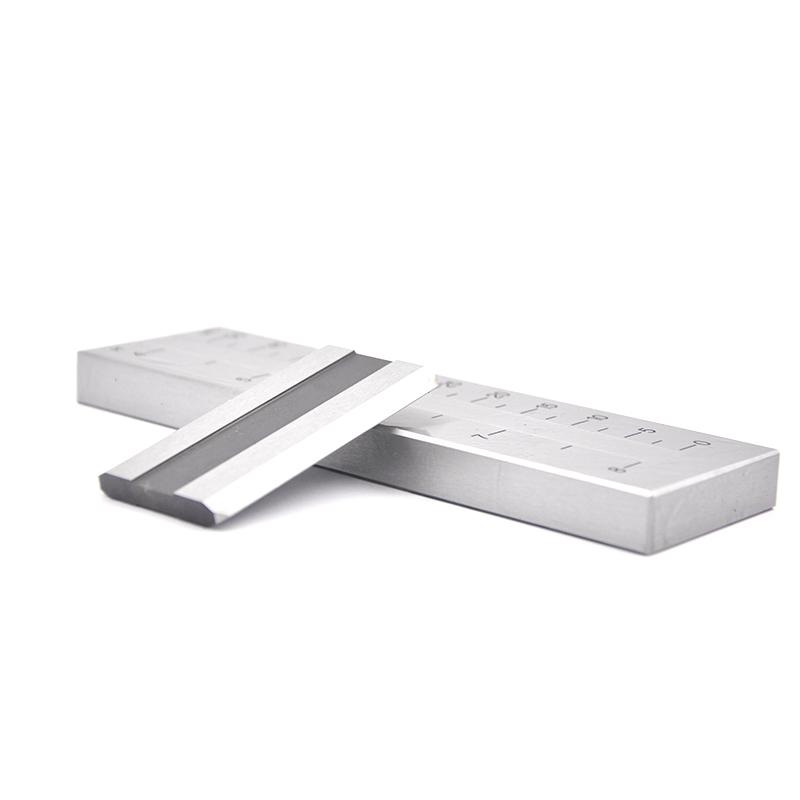

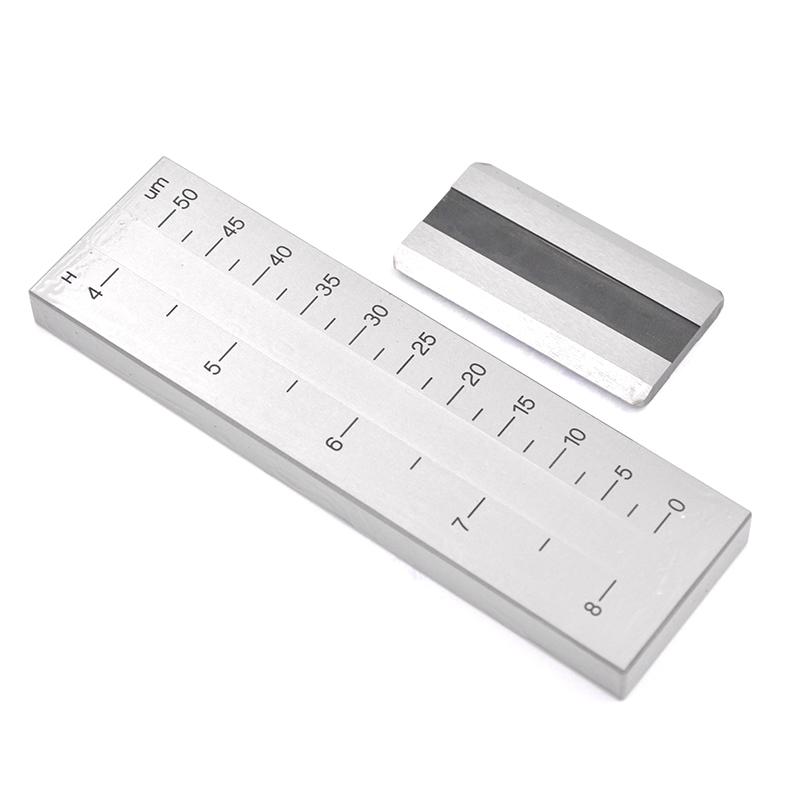

PUSHEN single-channe Grindometer model QXD-50um is a stainless steel fineness measuring instrument with a range of 0-50 microns. The product has a single groove with a width of 12mm and fine workmanship, suitable for Coating, inks and other industries.
Features
1. Made of stainless steel, with strong durability
2.Slot width 12mm, Standard Dimensions
3. Range 0-50 µm, accuracy +/- 2 µm

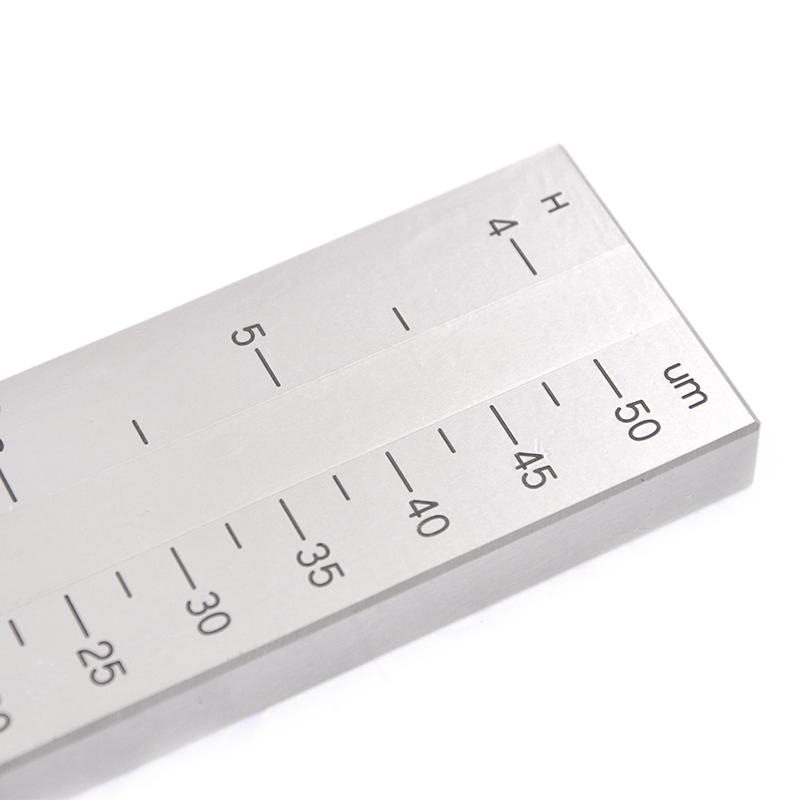

4. Graduation 5 μm, accurate measurement

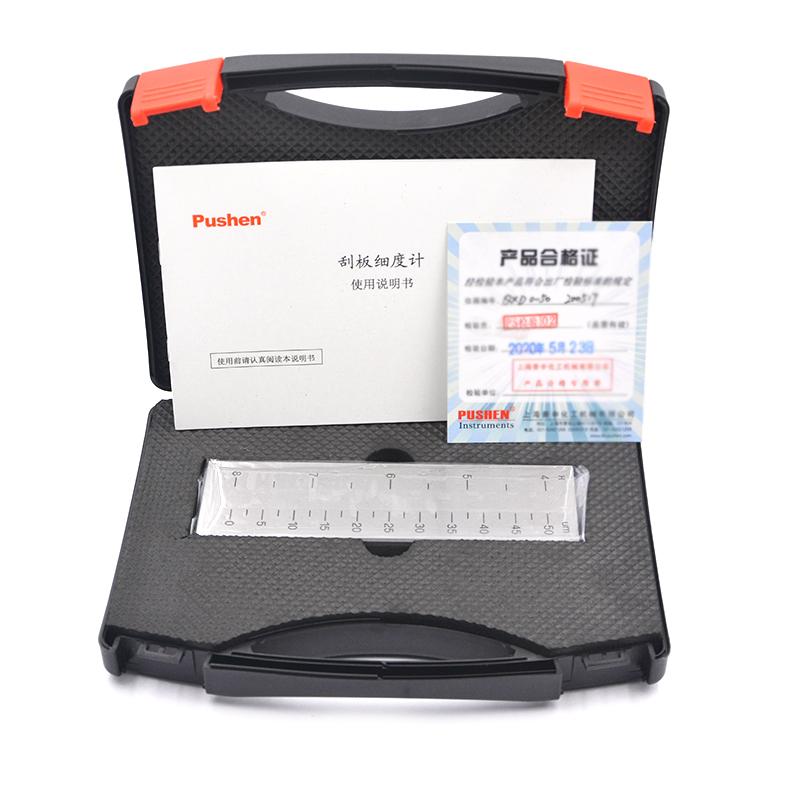

5. Encasement for black toolbox, built-in shock-proof cotton, perfect protection
Principle

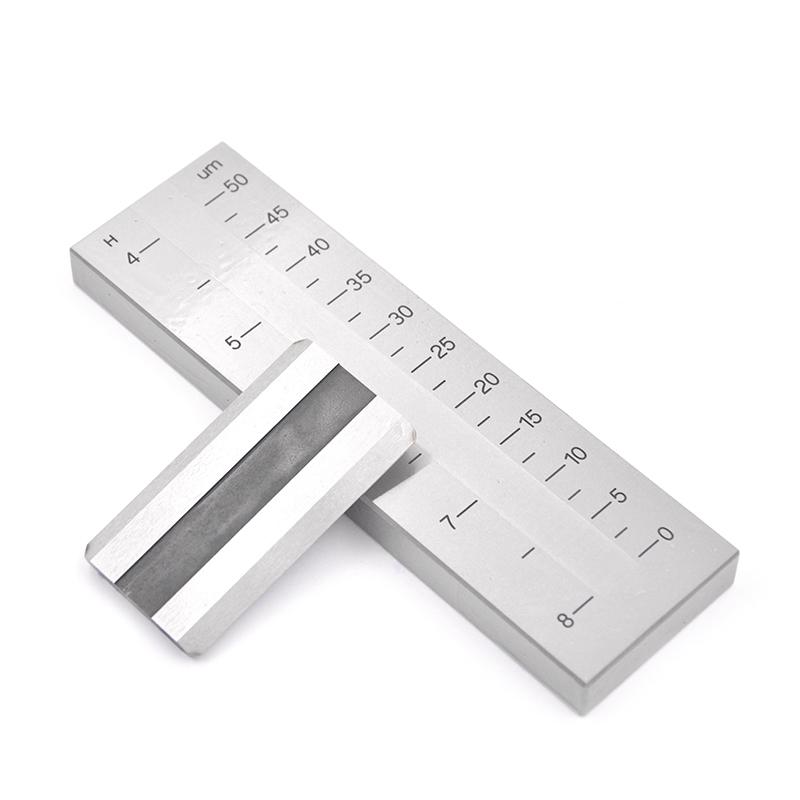

The PUSHEN single-channe Grindometer scrapes the surface of the sample and determines the fineness of the material according to the change of the groove depth. The scale on the stainless steel scraper can directly read the fineness value for fast and accurate fineness detection.
Applications
Paints, Coatings, pigments, raw materials, plastics, Printing inks, chocolate, ceramics, paper, food
Steps
1. Prepare the sample to be tested
2. Place the sample in the scraper groove
3. Use the drawdown blade to scrape the sample surface evenly
4. Read the fineness value corresponding to the groove scale
5. Record measurement results
Notice
• After use, wash and apply anti-rust oil to prevent rusting
• Do not bump the surface of the scraper and the drawdown blade to prevent damage
• Regularly check the flatness of the scraper and knife edge every year
• Fine gauges that do not meet the standards should be replaced in time
