Overview

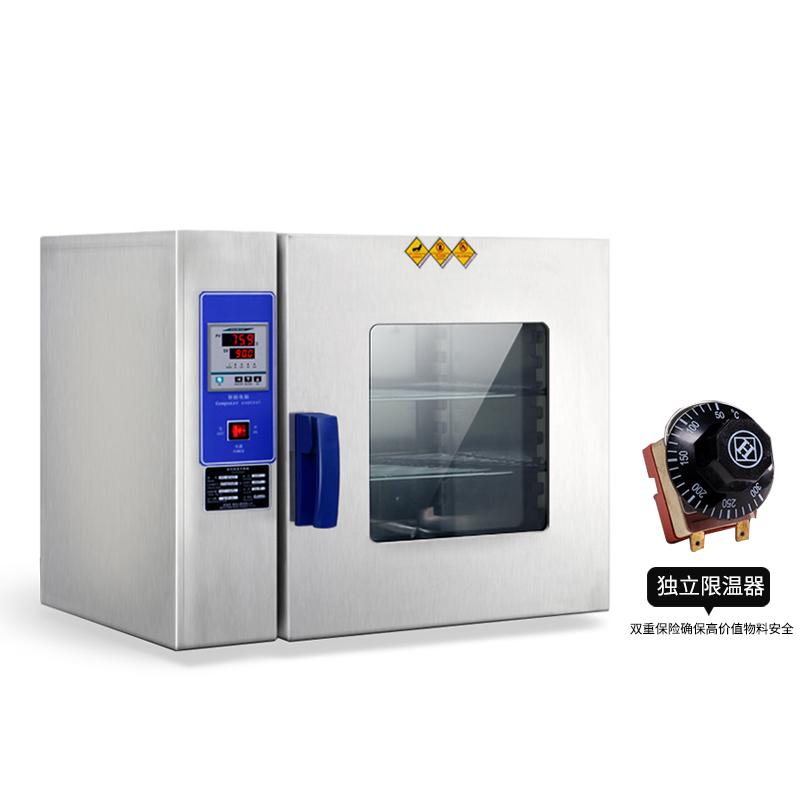

Kenton KH-55T + independent temperature limiter is a digital display electric air blowing dryer with microcomputer intelligent PID control technology, temperature control, timing and over-temperature alarm functions. Suitable for routine experiments and tests, cost-effective, it is especially recommended to install an independent temperature limiter for high-value samples to provide double insurance.
Features
1. Using microcomputer intelligent PID control technology, the system has temperature control, timing, over-temperature alarm functions;
2. The external hot air circulation system is composed of low-noise fans and air ducts, and the reasonable air duct and circulation system make the temperature in the working room stable;
3. Cold rolled steel plate with good electrostatic spray treatment, the overall design is beautiful and novel, and has a large viewing window;
4. The liner is divided into two types of mirror stainless steel and galvanized steel plate, and the semi-arc four corners are easy to clean;
5. The shelf spacing and shelf number in the working room can be adjusted to facilitate access to samples of different specifications;
6. Using high temperature silicone as the sealing edge of the door, high temperature heating tube as the heating element to ensure safety and longer service life;
7. Ergonomic fastening handle, easy to operate, and ensure sealing.
Principle
The temperature is precisely adjusted by the microcomputer intelligent PID control technology, combined with the external hot air circulation system, composed of a low-noise fan and an air duct, to achieve stable control of the temperature in the working room. The high-temperature heating tube is used as a heating element to ensure efficient heating.
Applications
Drying, heat treatment, heating in industrial, biological, agricultural, scientific research and other departments
Steps
1. Place the sample in the studio.
2. Adjust shelf spacing and quantity as needed;
3. Set temperature and timing parameters.
4. Start the equipment for heating and drying;
5. Monitor the temperature to ensure that it does not exceed the set upper limit (it is recommended to install an independent temperature limiter for high-value samples).
Notice
• Flammable, explosive and volatile items are strictly prohibited from being heated and dried in the box to avoid explosion;
• For high-value materials, it is recommended to install an independent temperature limiter, set the maximum temperature limit, and double insurance to prevent the material from being damaged due to excessive heating due to the failure of the electronic components of the box;
• Not suitable for volatile, flammable, explosive and other items.
