Overview

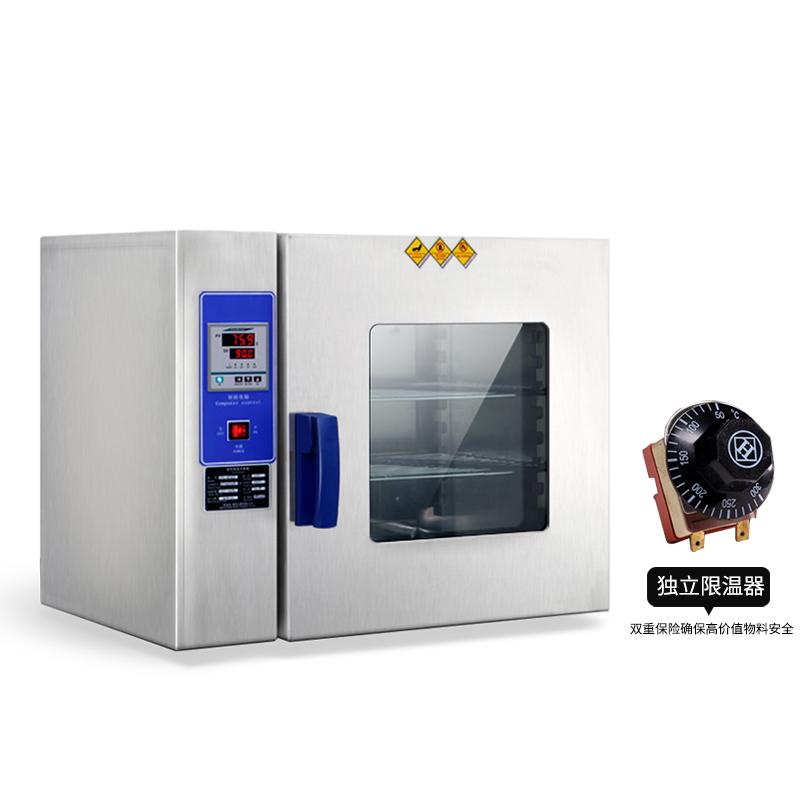

Kenton KH-75T + independent temperature limiter is a digital display electric air blowing dryer with microcomputer intelligent PID control technology, temperature control, timing and over-temperature alarm functions. Suitable for routine experiments and tests, cost-effective, especially it is recommended to install an independent temperature limiter for valuable samples to provide double insurance.
Features
1. Using microcomputer intelligent PID control technology, the system has temperature control, timing, over-temperature alarm functions;
2. The external hot air circulation system is composed of low-noise fans and air ducts, and the reasonable air duct and circulation system make the temperature in the working room stable;
3. Cold rolled steel plate with good electrostatic spray treatment, the overall design is beautiful and novel, and has a large viewing window;
4. The liner is divided into two types of mirror stainless steel and galvanized steel plate, and the semi-arc four corners are easy to clean;
5. The shelf spacing and shelf number in the working room can be adjusted to facilitate access to samples of different specifications;
6. Using high temperature silicone as the sealing edge of the door, high temperature heating tube as the heating element to ensure safety and longer service life;
7. Ergonomic fastening handle, easy to operate, and ensure sealing.
Principle
The drying oven precisely adjusts the temperature through microcomputer intelligent PID control technology. The external hot air circulation system is composed of a low-noise fan and an air duct to ensure stable temperature in the working room. The high-temperature heating tube is used as a heating element and cooperates with the high-temperature silicone sealing door edge to achieve an efficient and safe heating process.
Applications
Industry, biology, agriculture, scientific research and other departments for drying, heat treatment, heating
Steps
1. Connect the power supply and ensure that the voltage is 220V.
2. Turn on the device and set the required temperature (RT + 5~ 250 ° C) and Timer Range (0~ 999min) through the microcomputer controller;
3. Place the sample on the adjustable shelf and close the sealing door;
4. Start Equipment, Monitor Temperature Fluctuations and Accuracies;
5. After the timing expires, the device automatically stops heating and removes the sample.
Notice
- Flammable, explosive and volatile items are strictly prohibited from being heated and dried in the box to avoid explosion;
For high-value materials, it is recommended to install an independent temperature limiter, set the maximum temperature limit, and double insurance to prevent damage to the material due to excessive heating caused by the failure of the electronic components of the box.
- Not suitable for volatile, flammable, explosive and other items.
- Power supply voltage and power matching before use to avoid overload.
