Overview

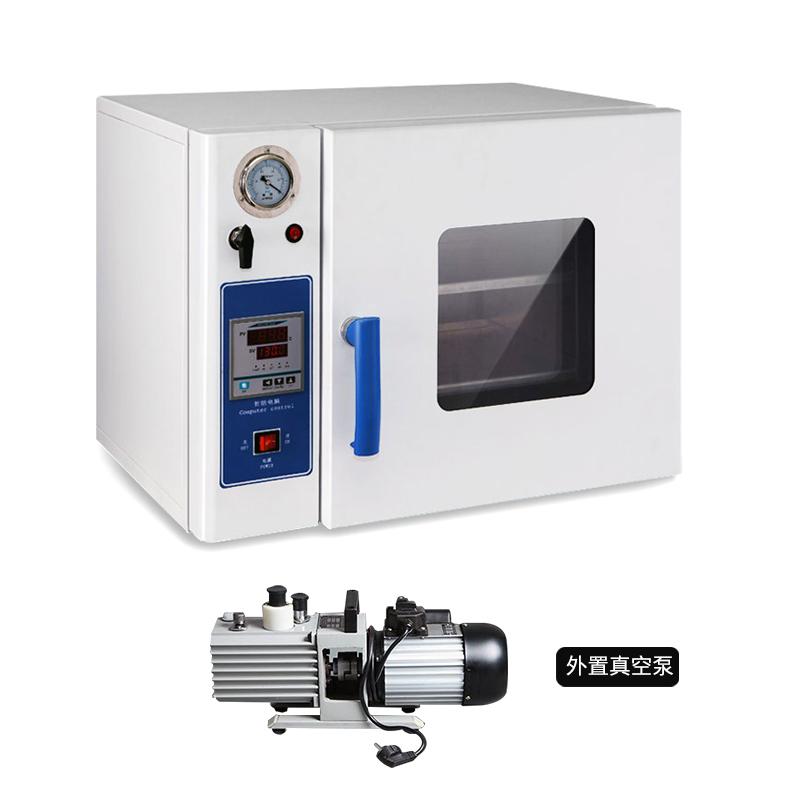

The Kenton DZF-6050 + Vacuumpump 2L Vacuum oven is a professional drying equipment that reduces the boiling point of liquids using a vacuum environment. It is suitable for the rapid processing of heat-sensitive substances and samples that are not easy to dry. The equipment eliminates the risk of thermal explosion of oxides through vacuum inert conditions and prevents powder samples from being blown away during the drying process.
Features
1. Vacuum environment significantly reduces the boiling point of liquids, suitable for heat-sensitive substances and shortening the drying time of powder or granular samples
2. Vacuum inert conditions completely eliminate the possibility of oxide explosion when exposed to heat
3. Compared with air circulation drying oven, powder sample will not be blown away when drying
4. The liner adopts streamline arc design, Cold rolled steel plate surface electrostatic spray
5.The liner is divided into stainless steel or Cold rolled steel plate, semi-circular four corners easy to clean
6. The box door is elastic and adjustable, and the integrally formed silicone rubber door sealing ring ensures high vacuum
7. Microcomputer intelligent PID control panel with timing and over-temperature alarm function
8. Tempered explosion-proof double-decked Glass Door for easy viewing of studio items
9. Various heating methods: DZF-60 series liner heating conduction on both sides; DZF-30 series independent heating pipes of each layer can be set at different temperatures; DZF-50 series 4-sided surrounding heating makes the temperature more uniform
Principle
Vacuum ovens significantly reduce the boiling point of liquids that need to be expelled by creating a vacuum environment, allowing heat-sensitive substances to dry rapidly at lower temperatures. Working under vacuum inert conditions effectively prevents oxides from exploding when heated, and at the same time avoids powdered samples from being disturbed by airflow during drying.
Applications
Biochemistry, chemical industry, agricultural research, environment protection, powder drying, baking, all kinds of Glass container sterilization
Steps
1. Put the sample to be dried into the studio
2. Adjust the tightness of the box door to ensure sealing
3. Set the required temperature and time parameters through the microcomputer intelligent PID control panel
4. Start the equipment to start the vacuum drying process
5. Observe the status of items in the studio through double-decked Glass doors
6. The equipment automatically stops working after completing the timing
Notice
• Make sure the door sealing ring is intact before use
• The setting temperature must not exceed the upper limit of 200 ° C
• Avoid suddenly opening the door in a vacuum environment
• Regularly clean the semi-circular four-corner area of the liner
• Power supply voltage is single phase AC220V/50Hz
Equipment weight up to 75Kg, need to pay attention to safety when handling
