Overview

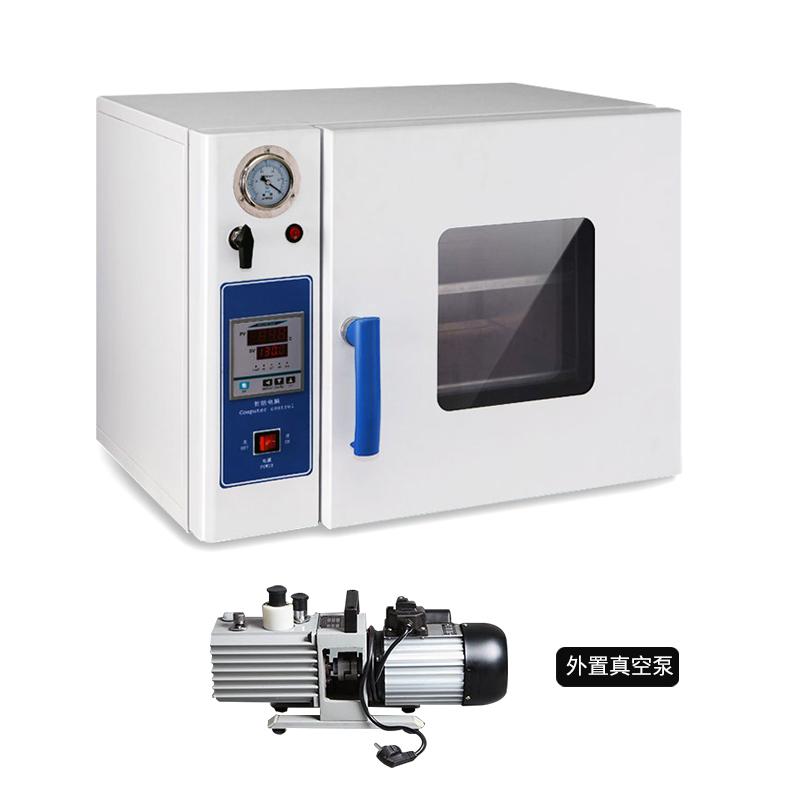

Kenton DZF-6090 + Vacuumpump 2L Vacuum oven is a professional drying equipment for reducing the boiling point of liquids in a vacuum environment, especially for rapid drying of heat-sensitive substances and powder particle samples.
Features
1. Vacuum environment significantly reduces the boiling point of liquids, suitable for heat-sensitive substances
2. Effectively shorten the drying time of powder or granular samples
3. Vacuum inert conditions eliminate the risk of thermal explosion of oxides
4. The powder sample will not be blown away when drying
5. The liner adopts streamline arc design, Cold rolled steel plate surface electrostatic spraying
6.The liner is divided into stainless steel or Cold rolled steel plate, semi-circular four corners easy to clean
7. The box door is elastic and adjustable, and the integrally formed silicone rubber door sealing ring ensures high vacuum
8. Microcomputer intelligent PID control panel with timing and over-temperature alarm function
9. Tempered explosion-proof double-decked Glass door, observation studio at a glance
10. Different series use different heating methods: DZF-60 series liner heating on both sides, DZF-30 series independent heating pipes for each layer, DZF-50 series 4-sided symmetrical heating
Principle
Vacuum oven significantly reduces the boiling point of the liquid that needs to be expelled by creating a vacuum environment, and dries under vacuum inert conditions to avoid sample oxidation and movement, achieving fast and effective drying effect.
Applications
Biochemistry, chemical industry, agricultural research, environment protection, powder drying, baking, disinfection and sterilization of various Glass containers
Steps
1. Adjust the tightness of the box door
2. Set the required temperature and time parameters
3. Start Vacuumpump to create a vacuum environment
Step 4 Start drying
5. Monitor over-temperature alarm function
Notice
• Suitable for heat sensitive, easy analysis, easy oxidation substances and complex ingredients
• Pay attention to the maintenance of vacuum and the sealing of the box door
• Power supply voltage is single phase AC220V/50Hz before use
• Note that the device has a large weight (112Kg) and needs to be placed firmly
• Regularly clean the four corners of the semi-circular liner
