Overview

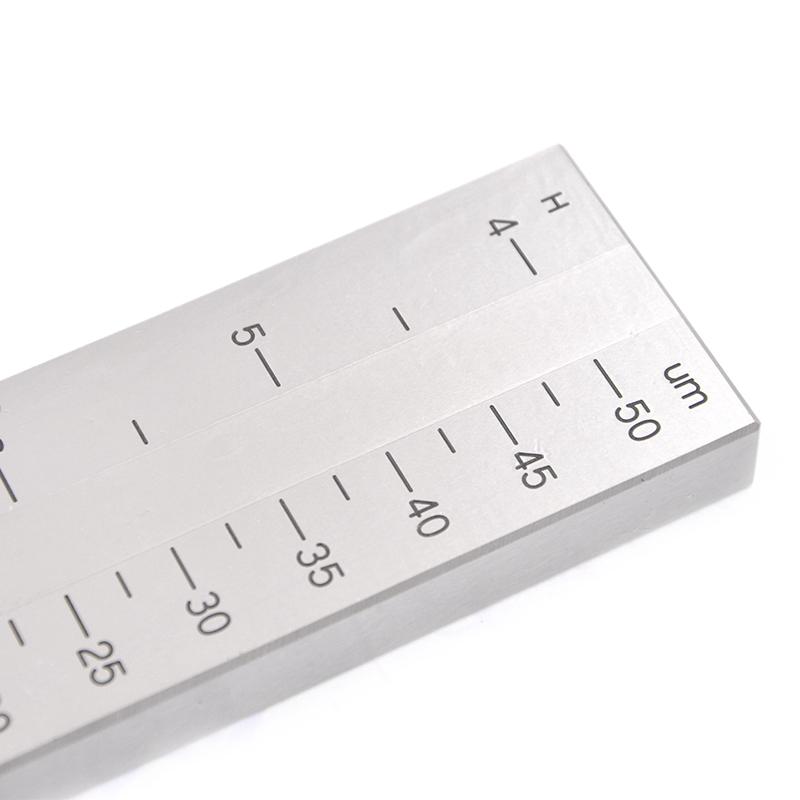

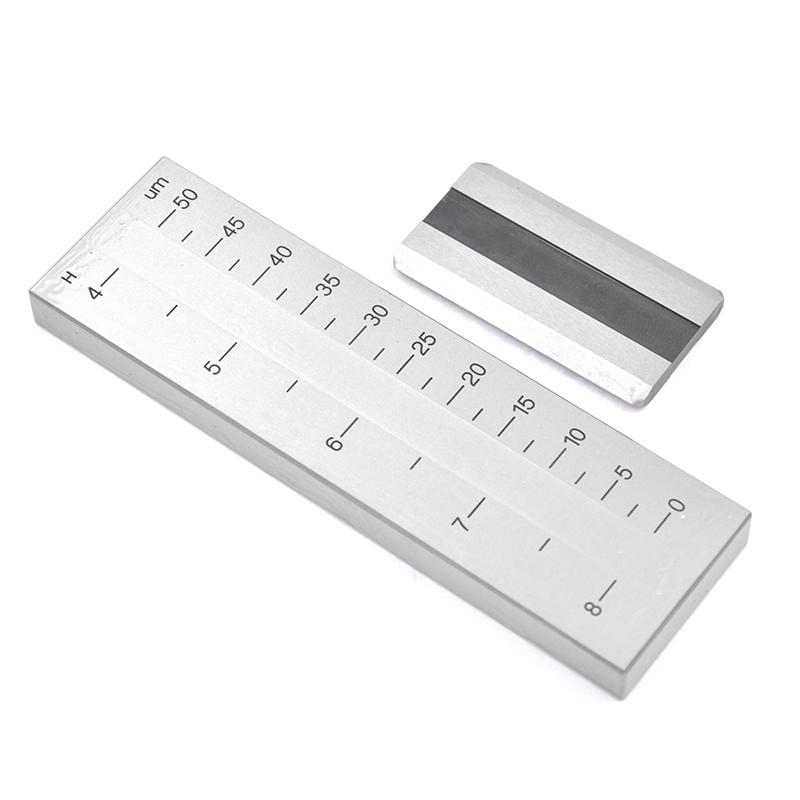

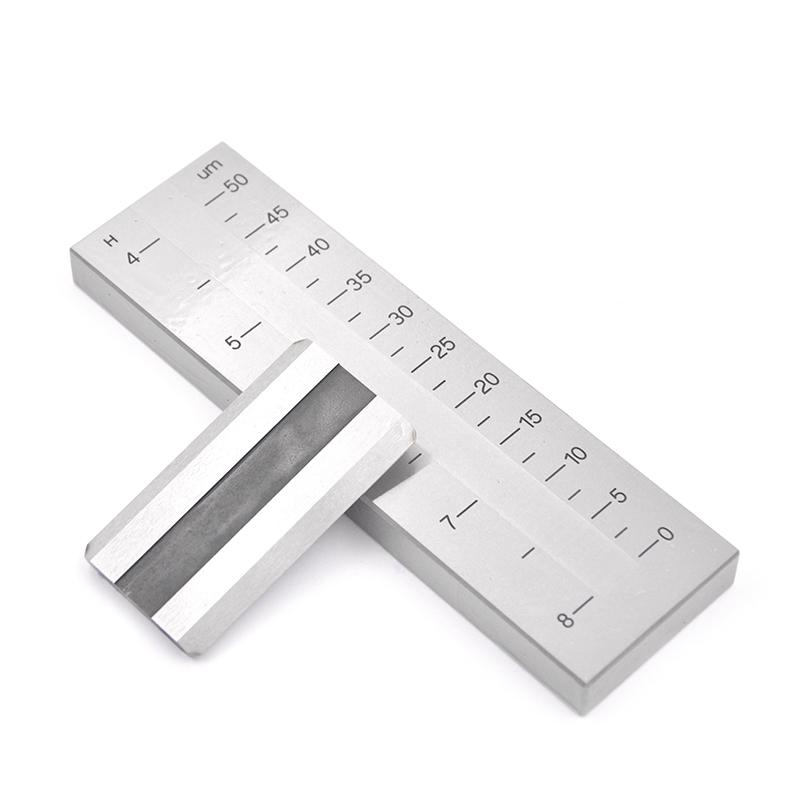

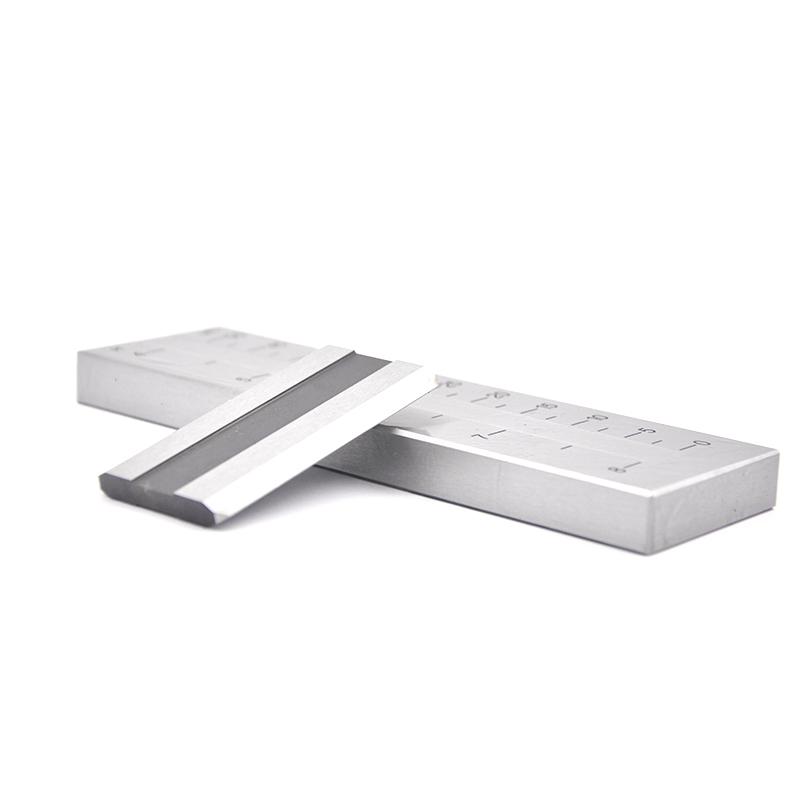

The PUSHEN QXD-100um single-channe Grindometer is a stainless steel fineness measuring instrument with a single groove design, a groove width of 12mm, and a range of 0-100 microns. The product uses a black toolbox Encasement, built-in shock-proof cotton and comes with a product certificate. The workmanship is fine, suitable for Coating, inks and other industries.
Features
1. Made of stainless steel
2.Single-channe design, groove width 12mm
3. Range 0-100 microns
4. accuracy +/- 5 microns

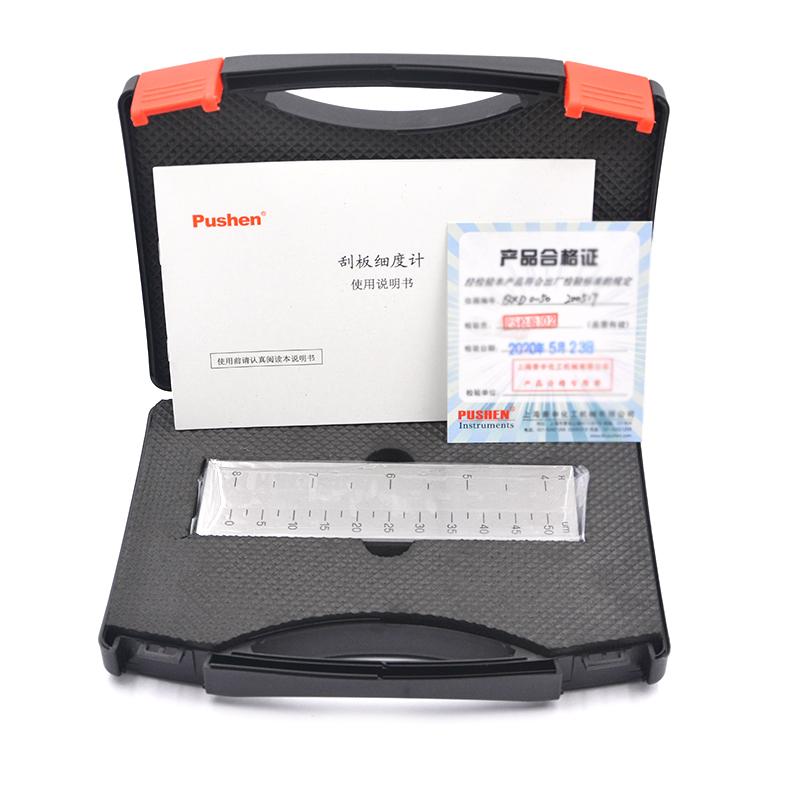

5. Equipped with black toolbox Encasement, built-in shockproof cotton
6. Additional product certificate
7. Dimensions: 170 * 50 * 15mm
Principle
The Grindometer scraping sample in the groove with a scale by stainless steel drawdown blade, the fineness value of the material is measured according to the distribution of the sample in the groove.
Applications
Paints, Coatings, pigments, raw materials, plastics, Printing inks, chocolate, ceramics, paper, food
Steps
It is recommended to read the PUSHEN Grindometer operation manual.pdf for detailed operation steps
Notice
• After use, it needs to be washed and applied with anti-rust oil to prevent rusting
• Do not bump the surface of the scraper and the drawdown blade to prevent damage
• Regularly check the flatness of the scraper and knife edge every year, and replace the fine gauge that does not meet the standard in time
