Overview

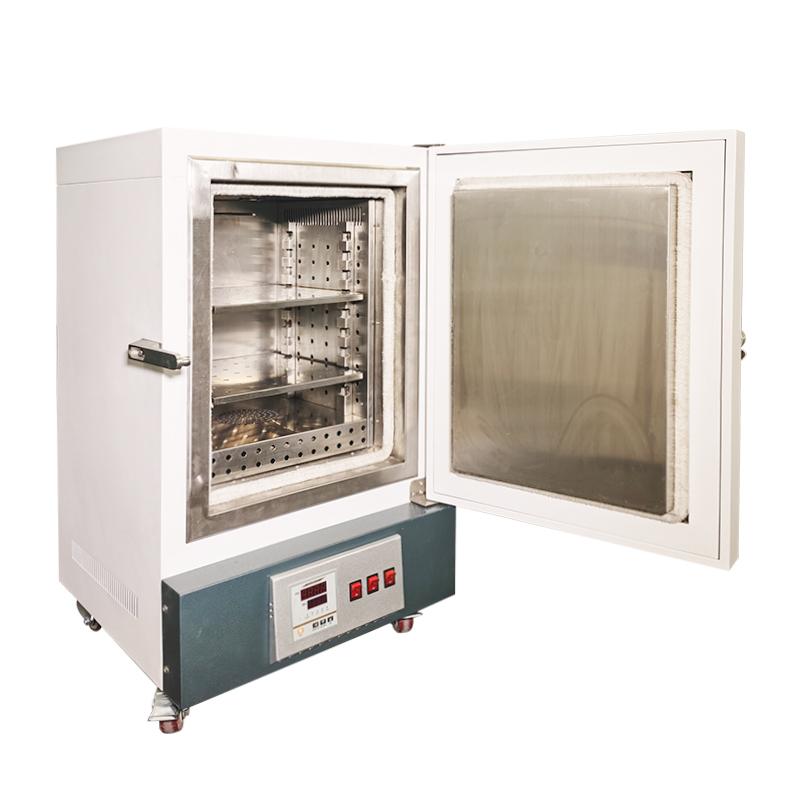

The Kenton XCT-1AS + Independent Temperature Limiter Blast High Temperature Drying Oven is a drying, heat treatment and heating equipment specially designed for industrial, mining, scientific research and jade processing units. It uses thickened 304 stainless steel liner and Cold rolled steel plate shell, and is equipped with a digital display intelligent PID temperature control system. The maximum effective temperature can reach 600 ° C, which is better than the conventional 500 ° C. It also has timing and over-temperature alarm functions, but is not suitable for volatile, flammable and explosive materials.
Features

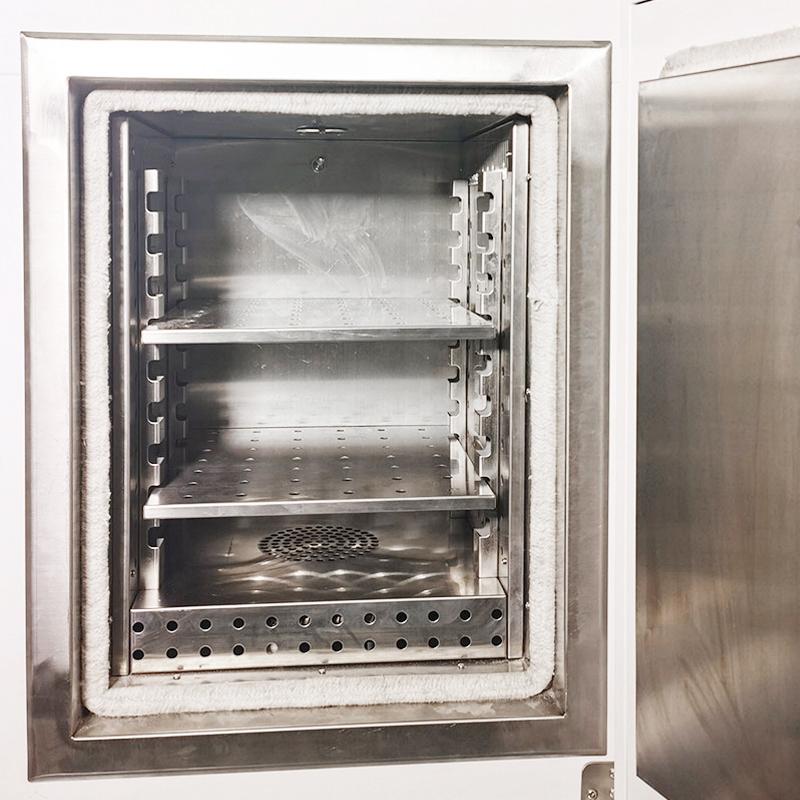

1. The liner is reinforced by thickened 304 stainless steel, which is not easy to deform at high temperature and prevents acid and alkali corrosion; the shell is made of Cold rolled steel plate, and the surface is electrostatic spraying.
2. Digital display intelligent PID temperature control, reduce the phenomenon of temperature flushing, with timing and over-temperature alarm function.
3. The box door is sealed with double-decked thermal insulation material, which effectively insulates and prevents heat loss, and effectively saves energy.
4. Heating components and fans are made of high-temperature resistant materials, providing a long service life.
5. The maximum effective temperature can reach 600 degrees Celsius, which is better than the general conventional maximum of 500 degrees, and the Temperature range is wider.
Principle
The drying oven is precisely controlled by a microcomputer PID intelligent automatic control system. Temperature range is 5~ 600 ° C, temperature resolution is +/- 0.5 ° C, and Temperature Fluctuation is +/- 5% ° C. Built-in fan and high temperature heating components to achieve uniform heating and blast circulation, ensuring that the test products are dried, heat treated and heated at the set temperature.
Applications
Industry and mining, scientific research, jade processing
Notice
• Flammable, explosive and volatile items are strictly prohibited from being heated and dried in the box to avoid explosion.

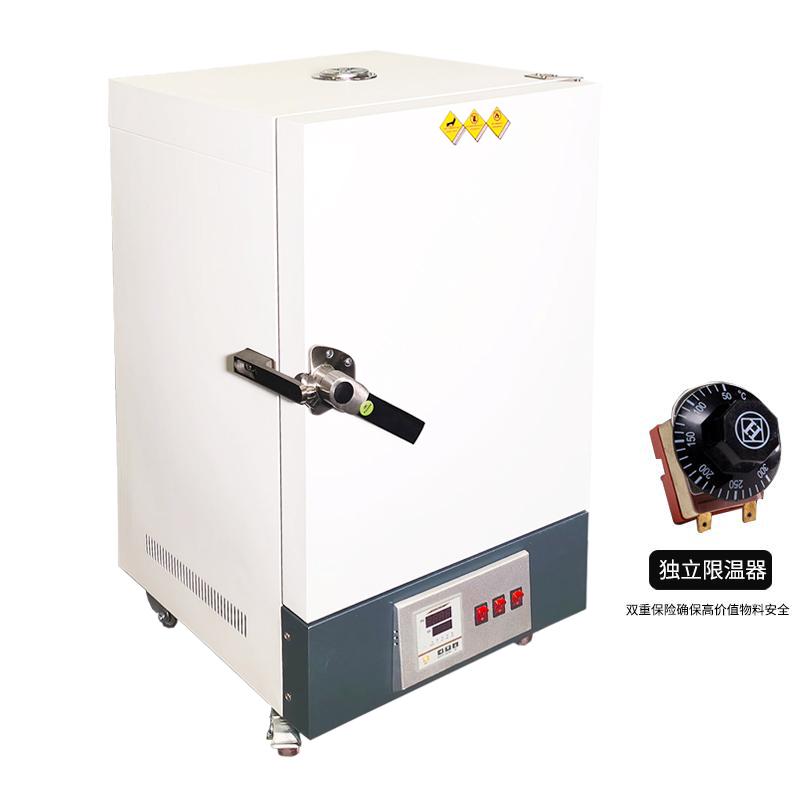

• For high-value materials to be heated, it is recommended to install an independent temperature limiter, set the maximum temperature limit, and double insurance to ensure that the material will not be damaged due to the failure of the electronic components of the box.
