Overview

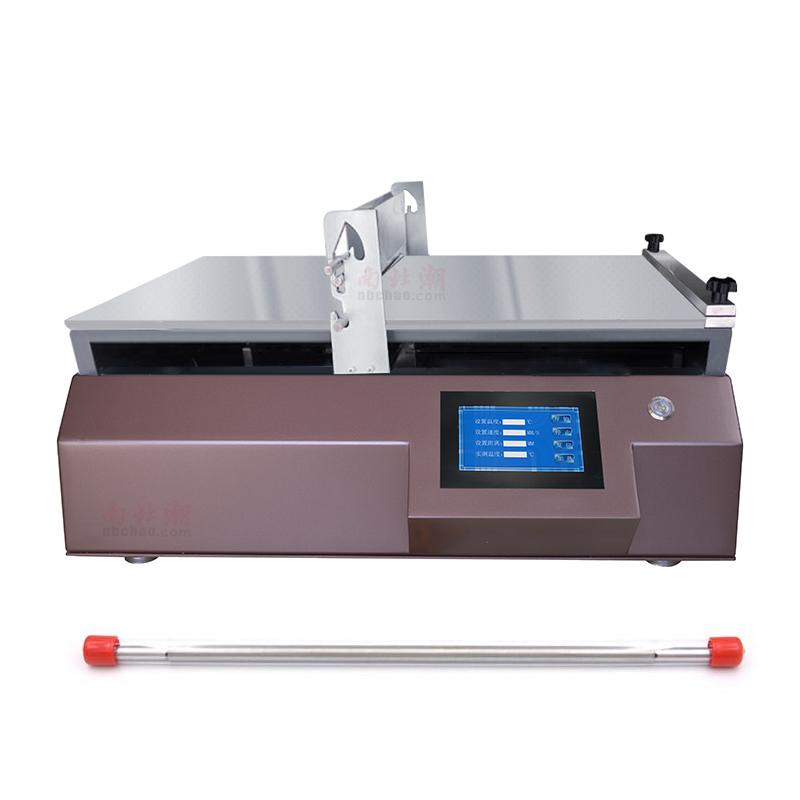

TBJ-A3-DJ4 Smoothing Rods vacuum adsorption Coater is a customized small film Applicator for hot-melt adhesive film. The size of the Spreader base is 300 * 400mm, the Spreader rate is adjustable from 5 to 180mm/s, and the Spreader Film thickness is 0~ 50μm. External Vacuumpump adopts touch screen operation mode. With vacuum adsorption function, it can be equipped with different wire rods to meet the High Accuracy Spreader on different films.
Features
1. Smoothing Rods Spreader mode, support Spreader Film thickness 0~ 50μm
2. Spreader rate 5~ 180mm/s adjustable range, stepless variable speed control
3. Vacuum adsorption function, adsorption size 400 * 300mm
4. Touch screen Control mode, regulator display accuracy +/- 0.001mm
5. Can be equipped with different wire rods to meet the needs of High Accuracy Spreaders
6. Support multiple customization functions and optional accessories
Principle
The device uses the Smoothing Rods Spreader method to perform film operation at an adjustable rate based on vacuum adsorption of the fixed substrate. The external Vacuumpump provides adsorption force, and the touch screen control system precisely controls the Spreader parameters for High Accuracy Spreader.
Applications
Hot-melt adhesive film Spreader
Steps
1. Prepare the Spreader substrate and place it on the Spreader stage
2. Turn on the vacuum adsorption function to fix the substrate
3. Select the appropriate wire rod and install it.
4. Set Spreader Rate and Film thickness parameters via touch screen
5. Start the Spreader
6. Turn off the device after completing the Spreader
Notice
• Power supply voltage 220V 50Hz before use
• Spreader before checking whether the vacuum adsorption function is normal
• Select the appropriate Spreader parameters according to the substrate Film thickness
• Clean Spreader and Wire Stick Regularly
• Pay attention to safety protection during operation
