Overview

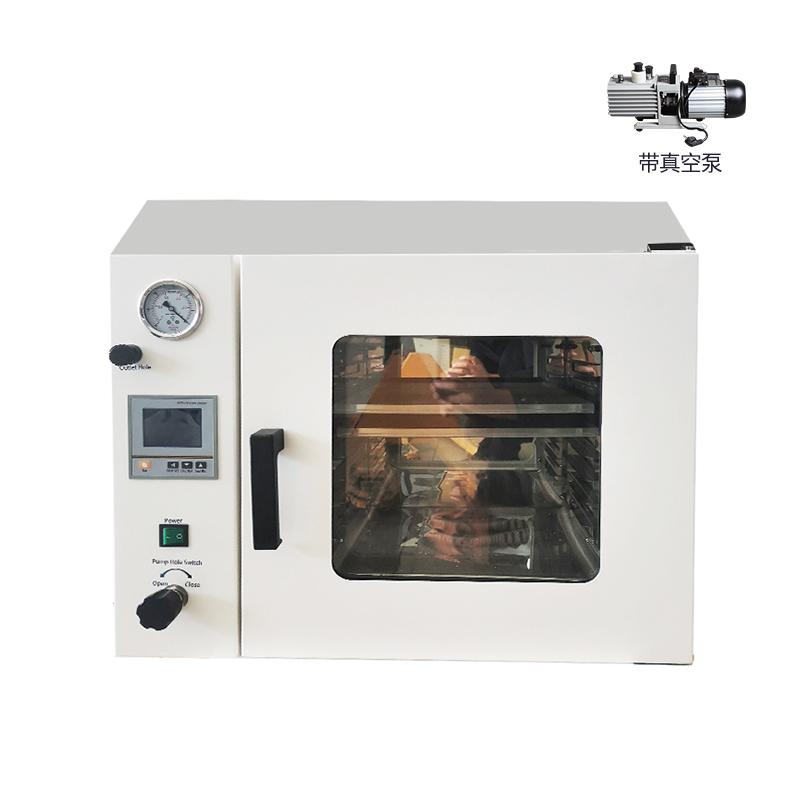

HUITAI DZF-6020 Vacuum oven is a drying equipment specially designed for biochemistry, chemical industry, agricultural research, environment protection and other fields. It is suitable for powder drying, baking and sterilizing Glass containers, especially suitable for processing heat sensitive, easy analysis, easy oxidation substances and complex components, to achieve fast and effective drying.
Features
1. The heating element is located on the Shelf inside the box, which shortens the heating time by 50% compared with the traditional Vacuum oven.
2. Large-screen LCD display, multiple sets of data are displayed on one screen, and the menu-type operation interface is simple and easy to understand
3, the use of special technology stamping aluminum shelf, high temperature non-oxidation, heat conduction fast, reduce heat loss
4. The cuboid studio has a large effective volume utilization rate, and the microcomputer temperature controller has accurate and reliable temperature control
5. Tempered bulletproof double-decked Glass Door for easy observation, can be filled with inert gas
6. The box door is closed and elastic and adjustable, and the integrally formed silicone rubber door sealing ring ensures high vacuum
7. The studio adopts stainless steel plate, and the shell adopts Cold rolled steel plate surface electrostatic spraying
8. Work in an oxygen-free or inert gas environment to avoid oxidation
Principle
Vacuum ovens create a vacuum environment that significantly reduces the boiling point of liquids, allowing heat-sensitive substances to dry at lower temperatures. Under vacuum or inert gas conditions, substances prone to oxidation can be safely handled to avoid the risk of explosion, while powder samples are not disturbed by airflow, ensuring uniform and effective drying.
Applications
Biochemistry, chemical industry, agricultural research, environment protection
Steps
1. Put the items to be dried into the studio
2. Adjust the closure tightness of the box door as required
3. Set temperature and time parameters (Temperature range RT + 10~ 250 ℃, timing 1~ 9999min)
4. Start the device and observe the LCD screen data
5. Take out the items after drying
Notice
• Power supply voltage AC220V 50Hz before use
• Vacuumpump is an optional accessory, which needs to be selected according to the model
• Pay attention to the studio temperature during operation and avoid using it beyond the range
• Regularly check the door seal to ensure the vacuum
• Use proper tools when cleaning to avoid damage to the stainless steel liner
