Overview

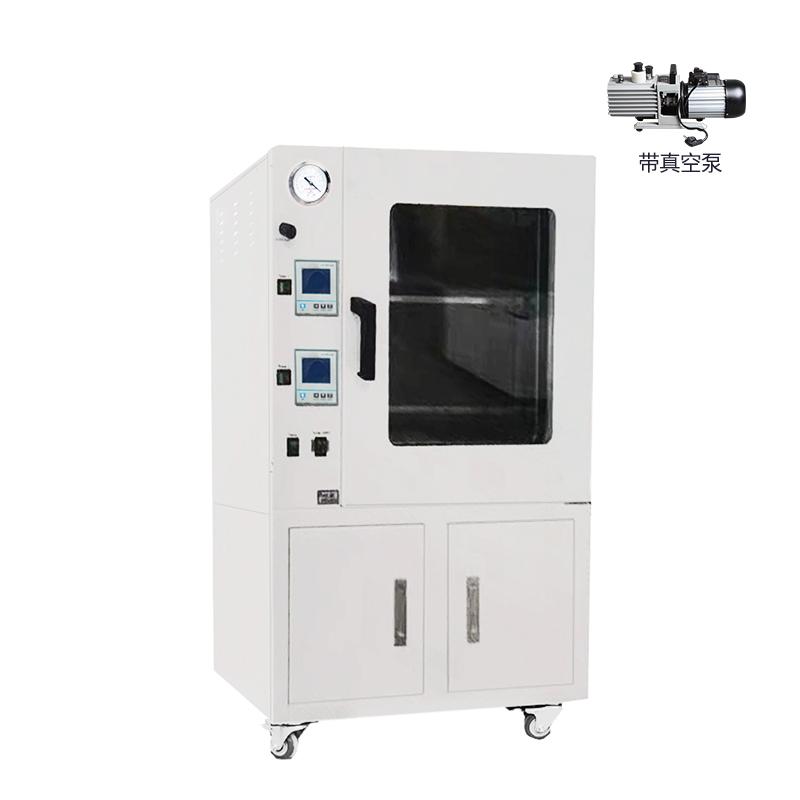

HUITAI DZF-6090 Vacuum oven is a drying equipment designed for heat sensitive, easy analysis and easy oxidation substances. It is widely used in biochemistry, chemical industry, agricultural research, environment protection and other fields. It can be used for powder drying, baking and disinfection and sterilization of various Glass containers. The product reduces the boiling point of liquids through a vacuum environment to achieve fast and effective drying treatment.
Features
1. Large-screen LCD display, multiple sets of data are displayed on one screen, and the menu-type operation interface is simple and easy to understand
2, the use of special technology stamping aluminum shelf, high temperature non-oxidation, heat conduction fast, reduce heat loss
3. The cuboid studio has a large effective volume utilization rate, and the microcomputer temperature controller has accurate and reliable temperature control
4. Tempered bulletproof double-decked Glass Door for easy observation, can be filled with inert gas
5. The box door is closed and elastic and adjustable, and the integrally formed silicone rubber door sealing ring ensures high vacuum
6. The studio adopts stainless steel plate, and the shell adopts Cold rolled steel plate surface electrostatic spraying
7. Work in an oxygen-free or inert gas environment to prevent oxidation
8. The heating element is located inside the Shelf, and the heating time is shortened by 50% compared with the traditional Vacuum oven.
Principle
Vacuum oven greatly reduces the boiling point of the liquid that needs to be expelled by working in a vacuum environment, so that heat-sensitive substances can be easily dried. For powder or granular samples that are not easy to dry, the vacuum drying method can effectively shorten the drying time, while ensuring that complex structural parts do not leave residue through drying.
Applications
Biochemistry, chemical industry, agricultural research, environment protection
Steps
1. Put the sample into the studio
2. Adjust the closure tightness of the box door
3. Set temperature and time parameters
4. Start Vacuumpump to create a vacuum environment
5. Optional to fill with inert gas
6. Start the drying process
7. Take out the sample after the timing is over
Notice
• Power supply voltage AC220V 50Hz before use
Temperature range should be controlled between RT + 10~ 250 ℃
• Keep the door sealing ring intact to ensure vacuum
• Pay attention to temperature setting when drying heat sensitive substances
• Regularly check the working status of Vacuumpump
• Use proper cleaning methods to avoid damage to the stainless steel liner
