Overview

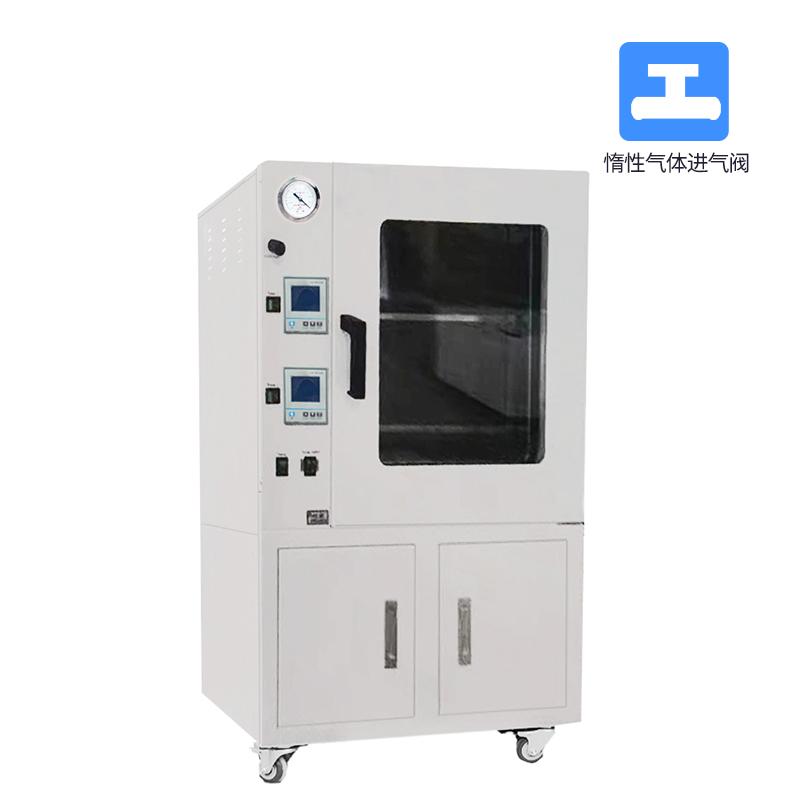

HUITAI DZF-6500 Vacuum oven is a professional drying equipment equipped with inert gas intake valve, widely used in biochemistry, chemical industry, agricultural research, environment protection and other fields, suitable for powder drying, baking and disinfection and sterilization of various Glass containers. Especially suitable for fast and effective drying treatment of heat sensitive, easy analysis, easy oxidation substances and complex components.
Features
1. Large-screen LCD display, multiple sets of data are displayed on one screen, menu-type operation interface, simple to understand and easy to operate
2. Aluminum shelves stamped by special process have high temperature non-oxidation, fast heat conduction and reduced heat loss
3. Cuboid studio, large effective volume utilization rate, microcomputer temperature controller, accurate and reliable temperature control
4. Tempered, bulletproof double-decked Glass doors observe objects in the studio at a glance and can be filled with inert gas
5. The closure and tightness of the box door can be adjusted by the user at will. The integrally formed silicone rubber door sealing ring ensures a high vacuum in the box
6. The working room is made of stainless steel plate, the box shell is made of good Cold rolled steel plate, and the surface is electrostatic spraying
7, storage, heating, testing and drying are carried out in the absence of oxygen or filled with inert gas environment, will not lead to oxidation
Principle
The vacuum environment greatly reduces the boiling point of the liquid that needs to be expelled, so that vacuum drying can be easily applied to heat-sensitive substances. For samples that are not easy to dry, such as powder or granular samples, the vacuum drying method effectively shortens the drying time; After cleaning complex structural parts or porous samples, the vacuum drying method is used, and no residual substances are left after drying through drying; Under vacuum or inert conditions, the possibility of oxide explosion by heat is eliminated; Compared with ordinary drying that relies on air circulation, the powdered sample will not be blown or moved by the flowing air.
Applications
Biochemistry, chemical industry, agricultural research, environment protection
Steps
1. Optional accessories, such as smart program controller, inert gas intake valve, etc
2. Set temperature parameters, Temperature range is RT + 10~ 250 ℃, temperature resolution 0.1 ℃
3. Adjust the closure and tightness of the box door to ensure the sealing of the silicone rubber door sealing ring
4, start the equipment, vacuum drying treatment, vacuum degree up to ≤ 133Pa
5. Monitor the operation process through the large-screen LCD screen, Timer Range 1~ 9999min
Notice
• Power supply voltage AC 220V 50Hz before use
• When operating, pay attention to the studio Temperature Fluctuation of +/- 1 ℃ to avoid excessive use
• The box door should be adjusted properly to maintain a high vacuum
• When drying heat-sensitive substances, use a vacuum environment to reduce the boiling point and prevent analysis
• Operate in an inert gas environment to prevent sample oxidation
• Regularly check the working status of Optional accessories such as Vacuumpump
