Overview

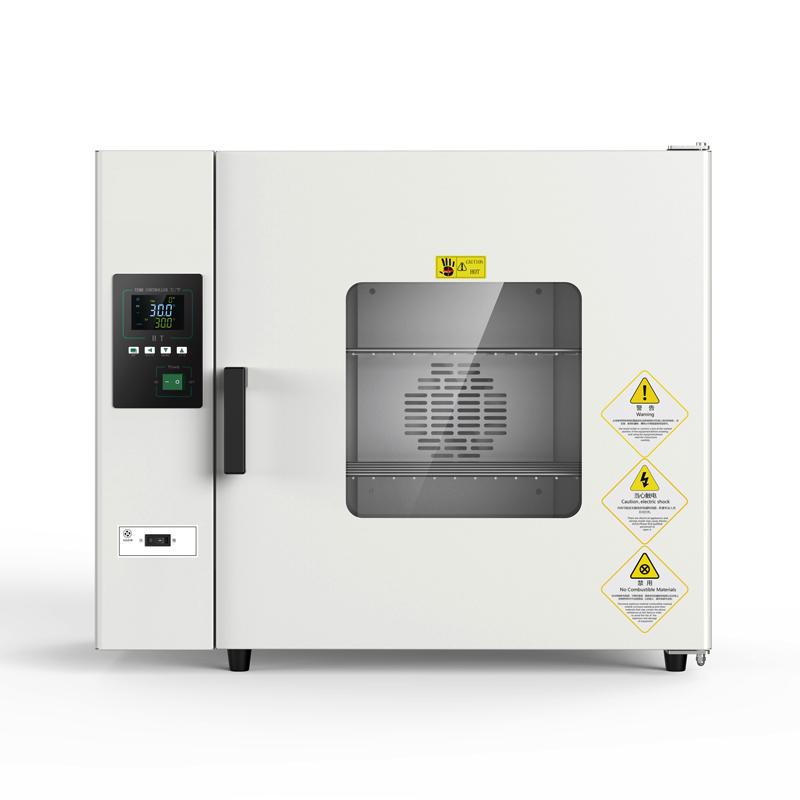

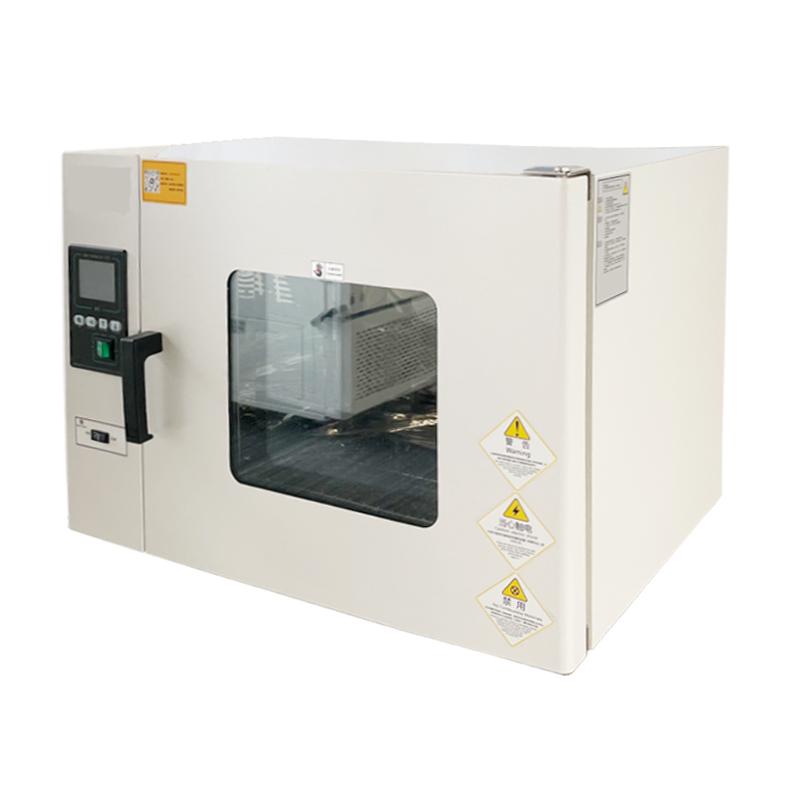

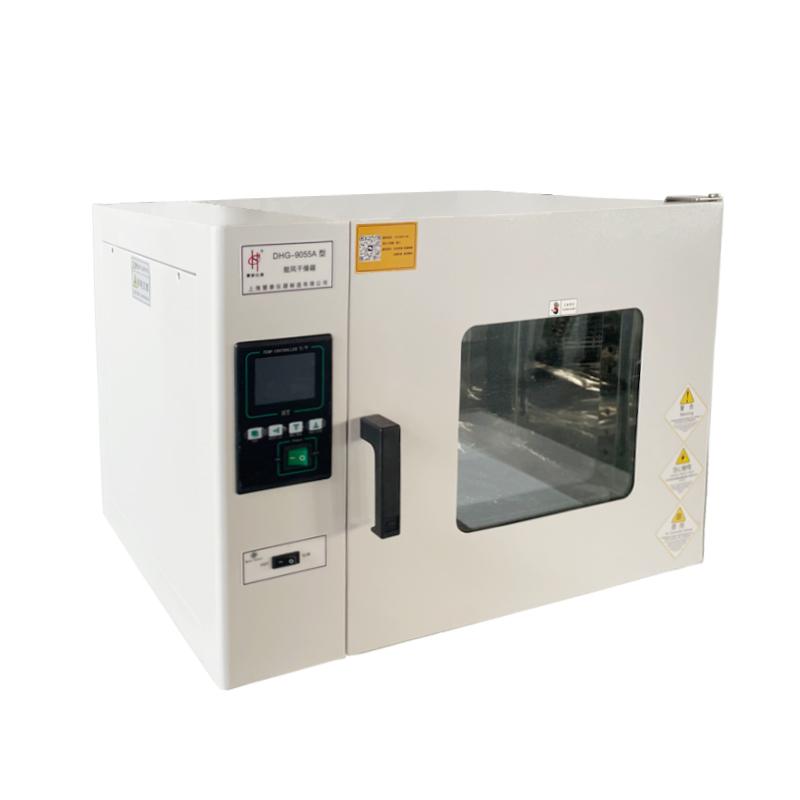

HUITAI blast drying oven DHG-9145A + test hole 50mm is a drying equipment for industrial and mining enterprises, laboratories, R & D institutions, etc., with drying, baking, wax, sterilizing and other functions.
Features
1. Large-screen LCD display, one-screen display of multiple sets of data, menu-type operation interface, simple to understand and easy to operate
2. Control mode of fan speed is adopted to improve the temperature uniformity of the studio
3. Adopt the self-developed air duct circulation system to automatically discharge the water vapor inside the box
4. Adopt microcomputer temperature controller with over-temperature deviation protection and digital display, with timing function, accurate and reliable temperature control
5. The liner is made of mirror stainless steel, the shelf bracket can be freely loaded and unloaded, and the semi-circular four-corner design makes cleaning more convenient
6. Cold rolled steel plate, electrostatic spray on the surface
7. Independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents (optional)
8. With RS485 interface, the recorder and computer can be connected, and the change of temperature parameters can be recorded (optional).
Principle
Control mode of fan speed and slow speed combined with self-developed air duct circulation system, through microcomputer temperature controller to precisely control the temperature in the box, to achieve uniform heating and automatic discharge of water vapor.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Connect power to AC 220V 50Hz
2. Set temperature parameters through the menu operation interface
3. Set Timer Range 1~ 9999min
4. Start the device and start working
5. Monitor temperature display and operating status
Notice
• Power supply voltage meets AC 220V 50Hz requirements before use
• Note that the temperature control range is between RT + 10 and 300 ° C
• Regularly clean the liner mirror stainless steel surface
• When selecting an independent temperature limit alarm system, it needs to be installed and used correctly
• Pay attention to safety during operation and avoid over-temperature operation
