Overview

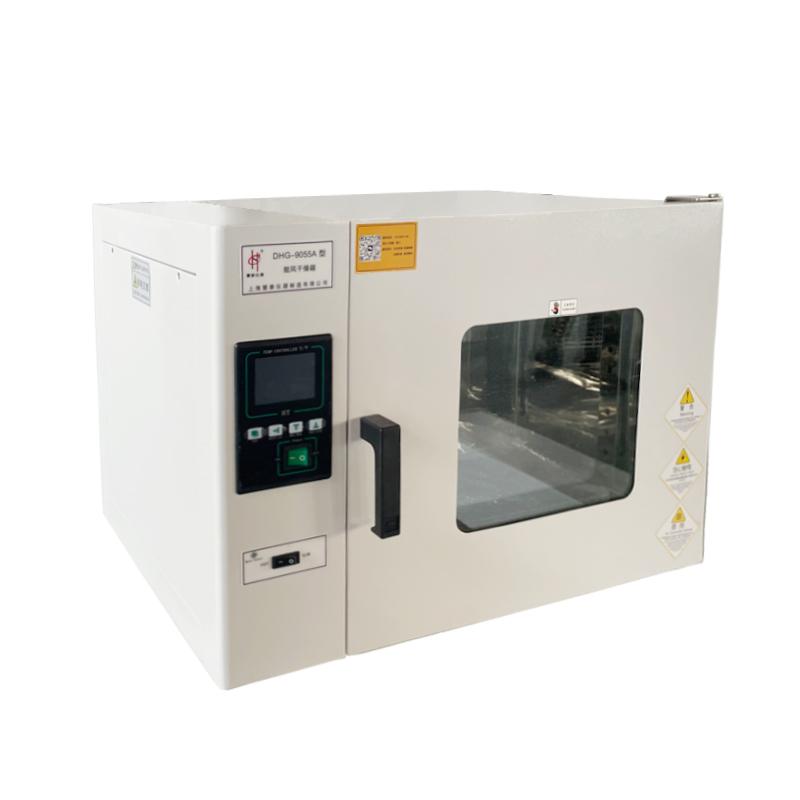

HUITAI DHG-9245A + test hole 50mm blast drying oven for drying, baking wax melting, sterilizing use in industrial and mining enterprises, laboratories, R & D institutions. The equipment has a large screen LCD display and intelligent temperature control system to ensure easy operation and accurate and reliable temperature control.
Features
1. Large-screen LCD display, one-screen display of multiple sets of data, menu-type operation interface, simple to understand and easy to operate (standard)
2. Control mode of fan speed is adopted to improve the temperature uniformity of the studio
3. Adopt the self-developed air duct circulation system to automatically discharge the water vapor inside the box without manual adjustment
4. Adopt microcomputer temperature controller with over-temperature deviation protection and digital display, with timing function, accurate and reliable temperature control
5. The liner is made of mirror stainless steel, the shelf bracket can be freely loaded and unloaded, and the semi-circular four-corner design makes cleaning more convenient
6. Cold rolled steel plate, electrostatic spray on the surface
7. Independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents (optional)
8. With RS485 interface, the recorder and computer can be connected, and the change of temperature parameters can be recorded (optional).
Principle
Control mode of the fan speed drives the air duct circulation system to achieve uniform temperature distribution in the working room. The microcomputer temperature controller precisely adjusts the Heating power and automatically discharges water vapor to ensure the stable and efficient drying process.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Connect power to AC 220V 50Hz
2. Set temperature, time and other parameters through the large-screen LCD menu
3. Place the sample on the shelf
4. Start the drying process
5. Monitor temperature changes, and the device automatically runs until the end of the set time
Notice
• Power supply voltage meets AC 220V 50Hz requirements before use
• Set temperature must not exceed Temperature range RT + 10~ 300 ℃
• Regularly clean the liner and keep the semi-circular four-corner design area hygienic
• When selecting an independent temperature limit alarm system, pay attention to the over-temperature protection function
• Special software is required when connecting to the RS485 interface
• Handle the shelf bracket with care when loading and unloading to avoid damage
• Do not open the box door at will during the operation of the equipment, so as not to affect the temperature uniformity
