Overview

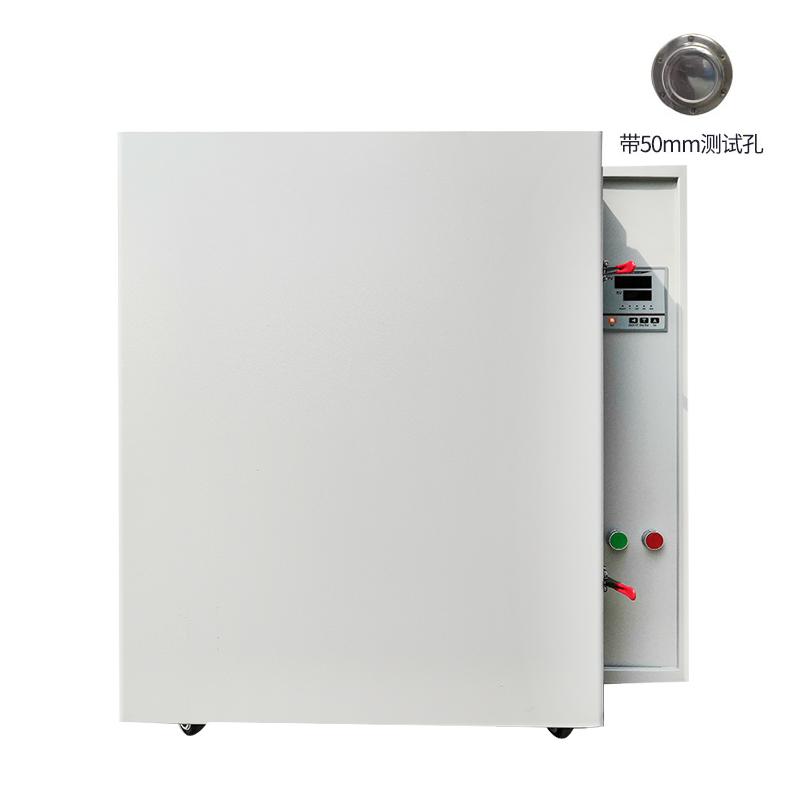

HUITAI HHG-9078A + test hole 50mm high temperature blast drying oven is a drying equipment specially designed for industrial and mining enterprises, laboratory outdoors, R & D institutions, etc., suitable for drying, baking, wax, sterilizing and other purposes. The equipment adopts high-quality studio materials and intelligent temperature control system to ensure accurate and reliable temperature control.
Features
1. The studio is made of high-quality steel or stainless steel, which is durable and reliable.
2. Microcomputer intelligent temperature controller, with setting, measuring temperature dual digital display, timing, power suppression and self-tuning functions, accurate temperature control.
3. The hot air circulation system is composed of low-noise fans and air ducts to effectively ensure uniform temperature in the working room.
4. Optional independent temperature limit alarm system can automatically interrupt when the temperature exceeds the limit to ensure the safety of the experiment.
5. Optional RS485 interface, which can be connected to a recorder and a computer to record changes in temperature parameters.
Principle
The high-temperature blast drying oven precisely sets and adjusts the temperature through a microcomputer temperature controller, and uses the hot air circulation system to force the air flow from the fan and air duct to make the temperature distribution in the working room uniform and realize functions such as efficient drying and baking. The optional temperature limit alarm system automatically cuts off the power supply when the temperature exceeds the limit to ensure safe operation.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
Connect the power supply and ensure that the voltage is AC220V 50Hz/16A.
2. Turn on the device and set the required temperature and Timer Range (1~ 9999min) through the microcomputer thermostat.
3. Start the hot air circulation system and monitor the temperature display to ensure uniform temperature in the working room.
4. After use, turn off the power and clean the studio.
Notice
• Power supply voltage is checked before use to avoid overload.
• When setting the temperature, do not exceed the Temperature range (RT + 20~ 400 ℃) to prevent equipment damage.
• Regularly clean the studio and shelves to keep the equipment hygienic.
• When the temperature limit alarm system is optional, ensure its normal operation to prevent accidents.
• Avoid touching high-temperature parts during operation to prevent burns.
